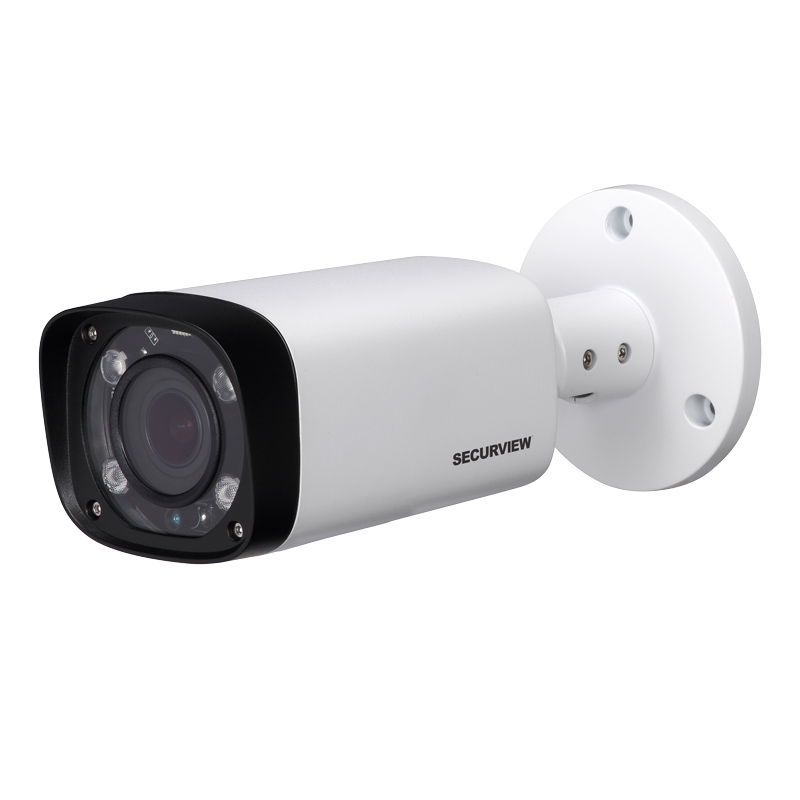

Professional Series 4.0MP WDR Motorised HDCVI Bullet

Brand logo
SKU VSCVI4MPFBIRM
Brand logo

Professional Series 4.0MP WDR Motorised HDCVI Bullet

SKU VSCVI4MPFBIRM

Experience Ultra HD resolution for HDCVI with the VSCVI4MPFBIRM. This bullet offers 4K / 4.0MP resolution with true WDR, with added the convenience of a motorised varifocal lens.

Camera features:
• Stream up to 4.0MP (2560 x 1440) at 25fps
• Motorised varifocal 2.7 ~ 12mm lens with fixed iris
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 60m range
• Dual BNC outputs for HD and composite video
• True WDR (120dB) and 2D/3D noise reduction
• Dual voltage compatible: 12VDC and 24VAC
• IP67 rated weather resistant metal housing

Backwards compatible: HDCVI/Analogue dual BNC video outputs.
Analogue mode configuration via OSD using HDCVI DVR or tester.

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA122
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA135
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E

Links and Downloads

Securview FBIRM Series Datasheet (PDF) 0.88 MB
Securview FBIRM Pro Bullet - Bracket Compatibility Guide (PDF) 0.54 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/3” 4.1 Megapixel CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.7 ~ 12mm F1.3 Motorised Lens; Fixed Iris
Lens Type
Motorised Varifocal
Angle of View
98° (wide) ~ 26° (tele)
Focus
Auto/Manual / 0.2m Min. Focus Distance
Minimum Illumination
0.01 Lux at F1.3 (Colour) / 0 Lux IR Active
Electronic Shutter
1/4 ~ 1/100,000s
Day/Night
Auto (ICR) / Manual
Infrared Range
60m
White Balance
Auto / Manual
Noise Reduction
2D / 3D
Gain Control
Auto
Lighting Compensation
BLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
64m (wide) / 222m (tele)
Observe (63px/m)
26m (wide) / 89m (tele)
Recognise (125px/m)
13m (wide) / 44m (tele)
Identify (250px/m)
6m (wide) / 22m (tele)
Video
Resolution
4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate
25fps (4.0MP), 25fps (1080p and lower)
Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input
N/A
Alarm Interface
N/A
Video Output
2 x BNC video output (1 x HDCVI / 1 x Composite SD)
Modes Supported
Mode Switching
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Professional Series
Housing
Metal
Camera Type
Bullet
Tri-Axis Mounting
No
Power Input
12VDC / 24VAC
Power Consumption
< 15.4W
Dimensions

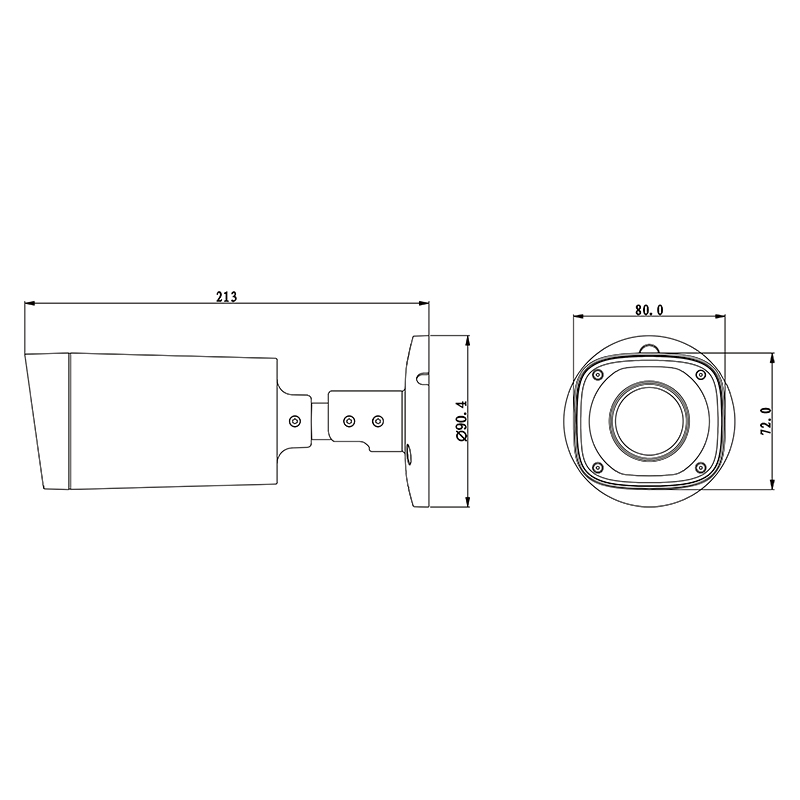

213 x 80 x 72mm (Base Ø90mm)
Weight
0.63kg
Operating Environment
-30° to 60°C / RH95% (max)
Other
Analogue Support
Yes (Dual output)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
250 mm
Height
110 mm
Depth
135 mm
Weight
1.50 kg
