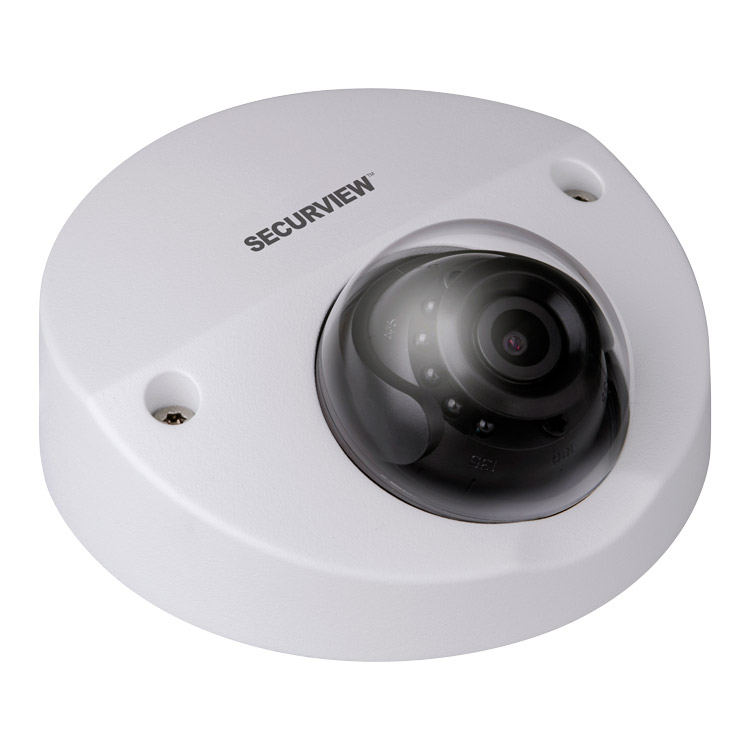

Mobile Series 1080p Fixed HDCVI Wedge Dome

Brand logo
SKU VSCVI2MPVDIRFTV3
Brand logo

Mobile Series 1080p Fixed HDCVI Wedge Dome

SKU VSCVI2MPVDIRFTV3

Every angle of your vehicle covered with the Mobile Series from Securview. Enjoy a wide 110° field of view and 1080p Full HD streaming, in a durable and compact shock-resistant housing.

Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Fixed 3.6mm lens; 110° viewing angle
• Ultra low light colour performance at 0.004lx
• Up to 500m HD video transmission over coax
• Infrared illumination up to 20m
• IP67/IK10 for weather & vandal resistance
• Auto white balance & 3D noise reduction
• Shock-resistant metal chassis & cable connectors

Suggested Products

Suggested product image

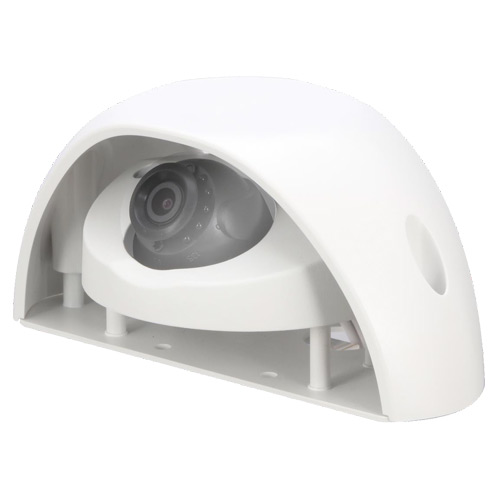

Auto Guard Mobile Dome Camera Bracket
VSBKTA201W
Suggested product image
UTC Video Output Controller
VSSELECT101

Links and Downloads

Securview Accessory Compatibility Guide - Apr 2018 (PDF) 0.81 MB
Mobile Series HDCVI Datasheet (PDF) 0.90 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/2.8" CMOS
Max. Resolution
1080P Full HD
Effective Pixels
1920(H)×1080(V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.8mm F1.6 Fixed Lens
Lens Type
Fixed
Angle of View
110°
Focus
Fixed
Minimum Illumination
0.005 Lux at F1.6 (Colour) / 0 Lux IR Active
Electronic Shutter
1/4s~1/100000s
Day/Night
Auto / Manual
Infrared Range
20m
White Balance
Auto / Manual
Noise Reduction
2D / 3D
Gain Control
AGC
Lighting Compensation
BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
39m
Observe (63px/m)
15m
Recognise (125px/m)
8m
Identify (250px/m)
4m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate
25fps (1080p and lower)
Transmission Distance
3m / 6m / 12m / 18m heavy duty cables available
Interface
Audio Input
N/A
Alarm Interface
N/A
Video Output
1x BNC HDCVI output
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
OSD (via HDCVI recorder) / VSSELECT101 (UTC connector)
Synchronisation
N/A
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
IK10
Series
Mobile series
Housing
Aluminium
Camera Type
Wedge Dome
Tri-Axis Mounting
No
Power Input
12VDC
Power Consumption
Max 3.6W
Dimensions
Ø106 x 50mm
Weight
0.30kg
Operating Environment
-40° to 60°C / RH90% (max)
Other
Analogue Support
No
Category
HDCVI Surveillance
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
140 mm
Depth
120 mm
Weight
0.45 kg
