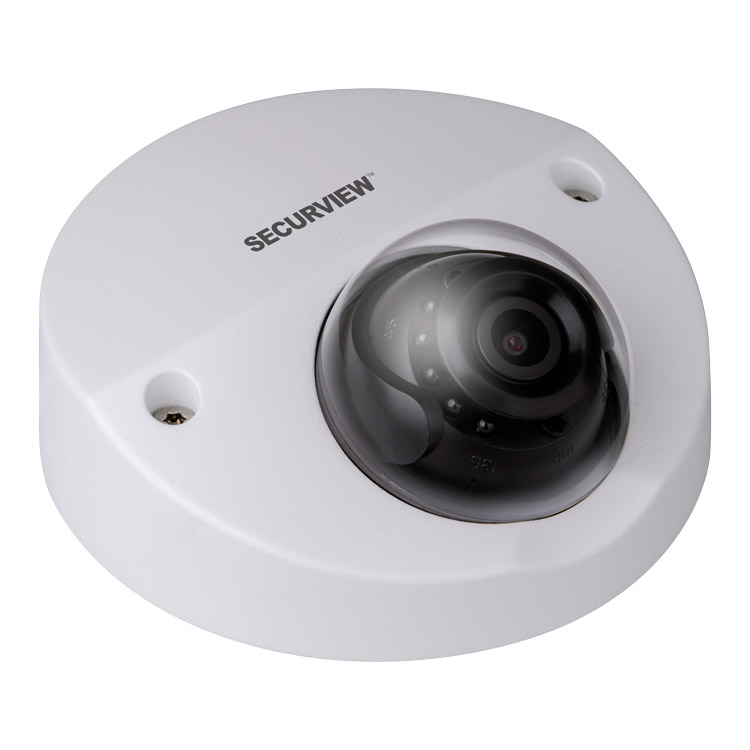

Mobile Series 1080p Fixed HDCVI Wedge Dome

Brand logo
SKU VSCVI2MPVDIRFT
Brand logo

Mobile Series 1080p Fixed HDCVI Wedge Dome

SKU VSCVI2MPVDIRFT

Available by special order only. Please contact us for lead times.

Every angle of your vehicle covered with the Mobile Series from Securview. Enjoy a wide 106° field of view and 1080p Full HD streaming, in a durable and compact shock-resistant housing.

Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Fixed 2.8mm lens; 106° viewing angle
• Up to 500m HD video transmission over coax
• Infrared illumination up to 20m
• IP67/IK10 for weather & vandal resistance
• Built-in microphone on camera
• Auto white balance & 3D noise reduction
• Shock-resistant metal chassis & cable connectors

Suggested Products

Suggested product image
Securview 4 Channel Mobile HDCVI Recorder with GPS and 4G Remote Connection
MCVR-GPS4G
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA139
Suggested product image
Auto Guard Mobile Dome Camera Bracket
VSBKTA201W
Suggested product image
Mobile Series 1080p Fixed HDCVI Bumper Camera
VSCVI2MPCIRAT
Suggested product image
Mobile Series 1080p Fixed HDCVI Mini Dome
VSCVI2MPDIRAT

Links and Downloads

Securview Mobile Camera Series Datasheet (PDF) 0.54 MB
Securview Accessory Compatibility Guide - Apr 2018 (PDF) 0.81 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/2.8” 2.4 Megapixel CMOS
Max. Resolution
1080p Full HD
Effective Pixels
1984 (H) x 1225 (V)
Signal Noise Ratio
> 50dB
Camera
Lens
2.8mm F1.2 Fixed Lens
Lens Type
Fixed
Angle of View
106°
Focus
Fixed
Minimum Illumination
0.05 Lux at F1.2 (Colour) / 0 Lux IR Active
Electronic Shutter
1/3 ~ 1/100,000s
Day/Night
Auto (ICR) / Colour / B&W
Infrared Range
20m
White Balance
Auto
Noise Reduction
2D / 3D
Gain Control
Auto
Lighting Compensation
BLC
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate
25fps (1080p and lower)
Transmission Distance
3m / 6m / 12m / 18m heavy duty cables available
Interface
Audio Input
Built-in microphone
Alarm Interface
N/A
Video Output
1x BNC HDCVI output
Modes Supported
Mode Switching
Synchronisation
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
IK10
Series
Housing
Metal, Polycarbonate
Camera Type
Wedge Dome
Tri-Axis Mounting
No
Power Input
12VDC
Power Consumption
<3.3W

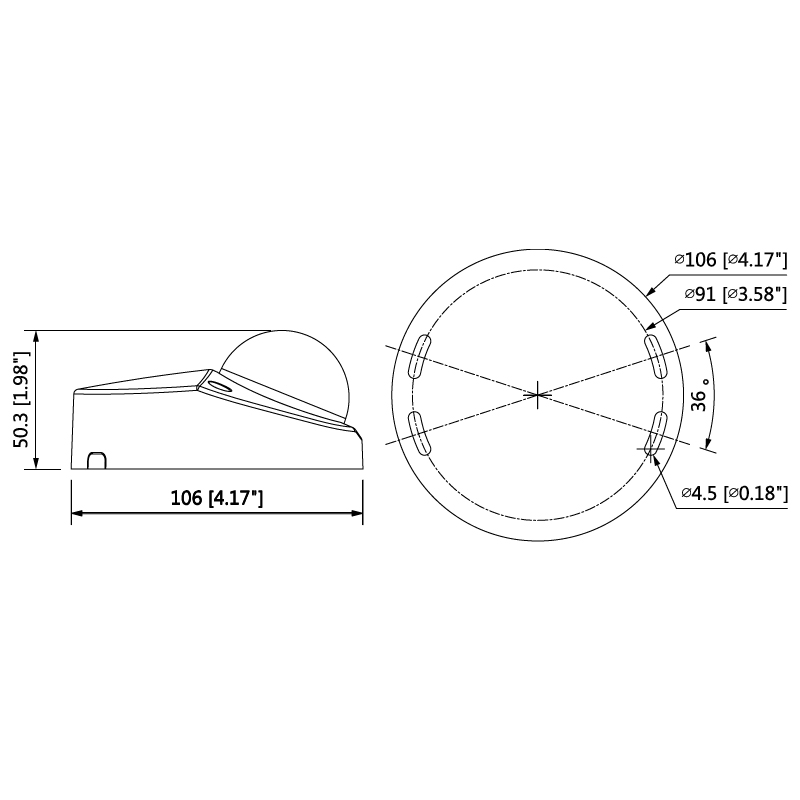

Dimensions
Ø106 x 50mm
Weight
0.30kg
Operating Environment
-30° to 60°C / RH95% (max)
Other
Analogue Support
No
Camera Style
Mobile Wedge Dome
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
138 mm
Height
139 mm
Depth
116 mm
Weight
0.42 kg
