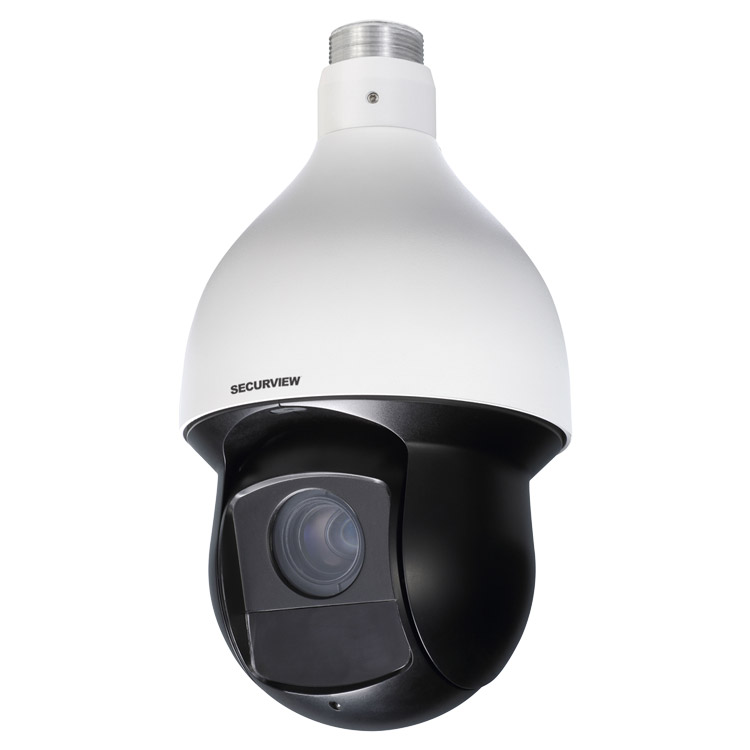

Professional Series 1080p 20x Zoom HDCVI PTZ

Brand logo
SKU VSCVI2MPPTZIRB
Brand logo

Professional Series 1080p 20x Zoom HDCVI PTZ

SKU VSCVI2MPPTZIRB

Available by special order only. Please contact us for lead times.

Every moment captured with the Securview HDCVI PTZ series. Enjoy Full HD 1080p streaming, convenient endless 360° panning at 400°/s preset speed, and high-power infrared up to 100m.

Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Motorised 4.7 ~ 94mm lens, auto iris
• 54.1 ~ 3.2° horizontal viewing angles
• Up to 300m HD video transmission over coax
• Infrared illumination up to 100m
• IP66 for weather resistant housing
• HD/SD switchable output for analogue DVRs
• Endless 360° panning, 105° tilt-range & auto-flip 180°
• Alarm and audio I/O interface
• Digital WDR & 3D noise reduction

This PTZ dome camera comes standard with right angle bracket, bracket adapter and AC power supply.

Suggested Products

Suggested product image
Adapter/Junction Box for PTZ Dome Cameras
VSBKTA120
Suggested product image
Adapter/Junction Box for PTZ Dome Cameras
VSBKTA140
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Ceiling Mount Camera Bracket
VSBKTB300C
Suggested product image
Parapet Mount PTZ Camera Bracket
VSBKTB303S
Suggested product image
VIP Vision IP PTZ Control Keyboard
VSIPPTZKBV2

Links and Downloads

VSCVI2MPPTZIRB Product Brochure (PDF) 0.30 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/2.8” 2.0 Megapixel Exmor CMOS
Max. Resolution
1080p Full HD
Effective Pixels
1920 (H) x 1080 (V)
Signal Noise Ratio
> 50dB
Camera
Lens
4.7 ~ 94mm Motorised Lens; Auto Iris
Lens Type
Motorised Varifocal
Angle of View
54.1° (wide) ~ 3.2° (tele)
Focus
Minimum Illumination
0.05 Lux at F1.4 (Colour) / 0.005 Lux (B&W) IR Active
Electronic Shutter
1/1 ~ 1/30,000s
Day/Night
Auto (ICR) / Colour / B&W
Infrared Range
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Noise Reduction
2D / 3D
Gain Control
Auto/Manual
Lighting Compensation
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate
25fps (1080p and lower)
Transmission Distance
Up to 300m via 75-3 coaxial cable
Interface
Audio Input
1 channel in
Alarm Interface
2 channel in / 1 channel out
Video Output
1 x BNC HD video output
Modes Supported
Mode Switching
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP66
Vandal Resistant
No
Series
Housing
Camera Type
PTZ Dome
Tri-Axis Mounting
No
Power Input
24VAC 3A ±10%
Power Consumption
12W / 25W (IR active)
Dimensions
Ø186 x 310mm
Weight
3.5kg
Operating Environment
-40° to 70°C / RH90% (max)
Other
Analogue Support
Yes (Switchable)
Backlight Compensation
BLC / HLC / DWDR
Camera Style
Weather Resistant PTZ Dome
HD/SD Switchable
Yes
Manual PTZ Speed
Pan: 0.1° ~300°/s; Tilt: 0.1° ~200°/s
Maximum Infrared Range
100m
Pan/Tilt Range
Pan: 0° ~ 360° endless / Tilt: -15° ~ 90° / Auto-flip 180°
Preset PTZ Speed
Pan: 400°/s; Tilt: 300°/s
Presets
300(DH-SD) / 255(Pelco-P/D)
Protocols
DH-SD / Pelco-P/D (Auto Recognition)
PTZ Modes
5 Pattern / 8 Tour / Auto Pan / Auto Scan
RS485
1 input
Video Compression
H.264 / MJPEG
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
300 mm
Height
300 mm
Depth
525 mm
Weight
8.30 kg
