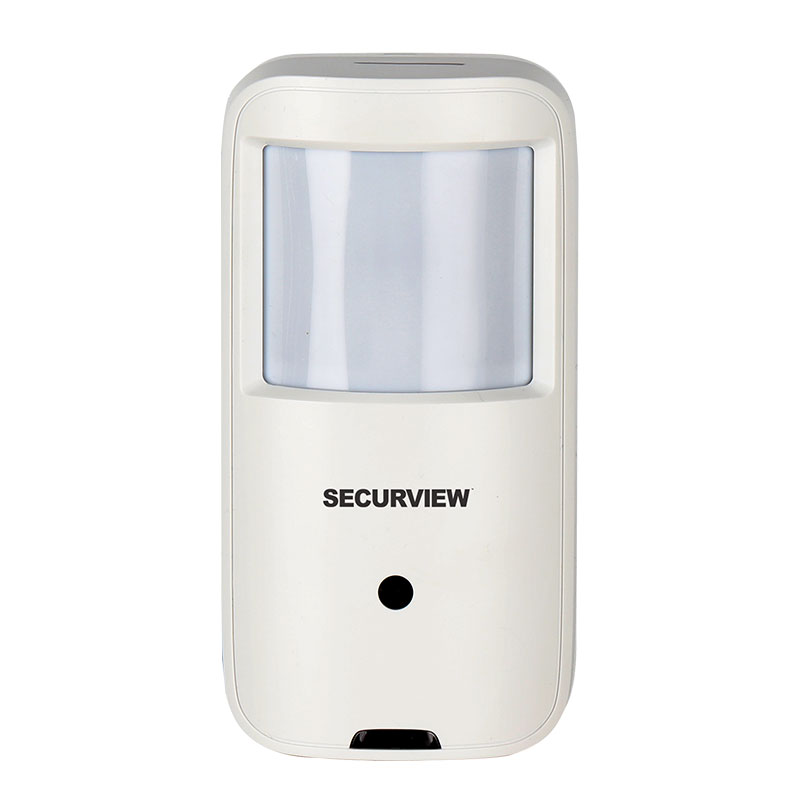

Pinhole Series 2.0MP Fixed HDCVI Pinhole Camera with PIR Sensor

Brand logo
SKU VSCVI2MPPIRC
Brand logo

Pinhole Series 2.0MP Fixed HDCVI Pinhole Camera with PIR Sensor

SKU VSCVI2MPPIRC

Stock may be limited. Please contact us for availability or for an alternative item.

The VSCVI2MPPH3.6 is an HDCVI pinhole camera with a built-in PIR sensor, doubling as both a surveillance and alarm device. The PIR sensor has a range of 12m and, when triggered, sends an alarm signal to the connected DVR.

Camera features:
• Stream up to Full HD/2.0MP (1920 x 1080) at 25fps
• Fixed 2.8mm lens with 101° field of view
• 12m PIR sensor triggers alarm to DVR over coax
• Pet immune PIR ignores objects ≤18kg
• Up to 700m video transmission over coaxial cable
• Auto digital day/night & 2D digital noise reduction
• Includes brackets for wall mounting
• Supports HDCVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)

Suggested Products

Suggested product image
UTC Video Output Controller
VSSELECT101

Links and Downloads

Securview PH / RC Pinhole Camera Datasheet (PDF) 0.33 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/2.9" 2.0 Megapixel CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.8mm F2.0 Fixed Lens
Lens Type
Fixed
Angle of View
101°
Focus
Fixed / 0.5m Min. Focus Distance
Minimum Illumination
0.02 Lux at F2.0 (Colour) / 0.002 Lux at F2.0 (B&W)
Electronic Shutter
1/25 ~ 1/100,000s
Day/Night
Auto (ICR) / Manual
Infrared Range
N/A
White Balance
Auto / Manual
Noise Reduction
2D
Gain Control
Auto
Lighting Compensation
BLC / HLC / DWDR
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
44m
Observe (63px/m)
17m
Recognise (125px/m)
9m
Identify (250px/m)
4m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate
25fps (1080p and lower)
Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input
N/A
Alarm Interface
N/A
Video Output
BNC CVI HD output / Composite SD output
Modes Supported
HDCVI & Composite
Mode Switching
OSD (via HDCVI recorder) / VSSELECT101 (UTC connector)
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
N/A
Vandal Resistant
N/A
Series
Pinhole Series
Housing
Plastic
Camera Type
Pinhole
Tri-Axis Mounting
No
Power Input
12VDC
Power Consumption
< 0.7W

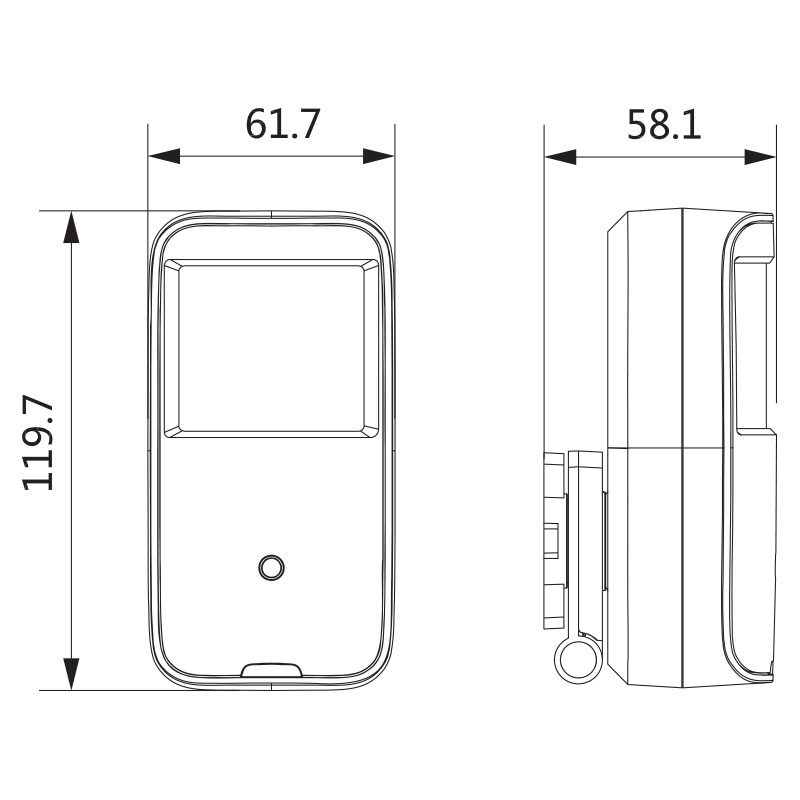

Dimensions
120 x 62 x 58mm
Weight
0.13kg
Operating Environment
-30° to 60°C / RH90% (max)
Other
Pet Immunity
≤18kg
PIR Detection Range
12 x 12m (100°)
PIR Detection Type
Passive Infrared
Resistance Light
6500Lux
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
70 mm
Height
70 mm
Depth
172 mm
Weight
0.18 kg
