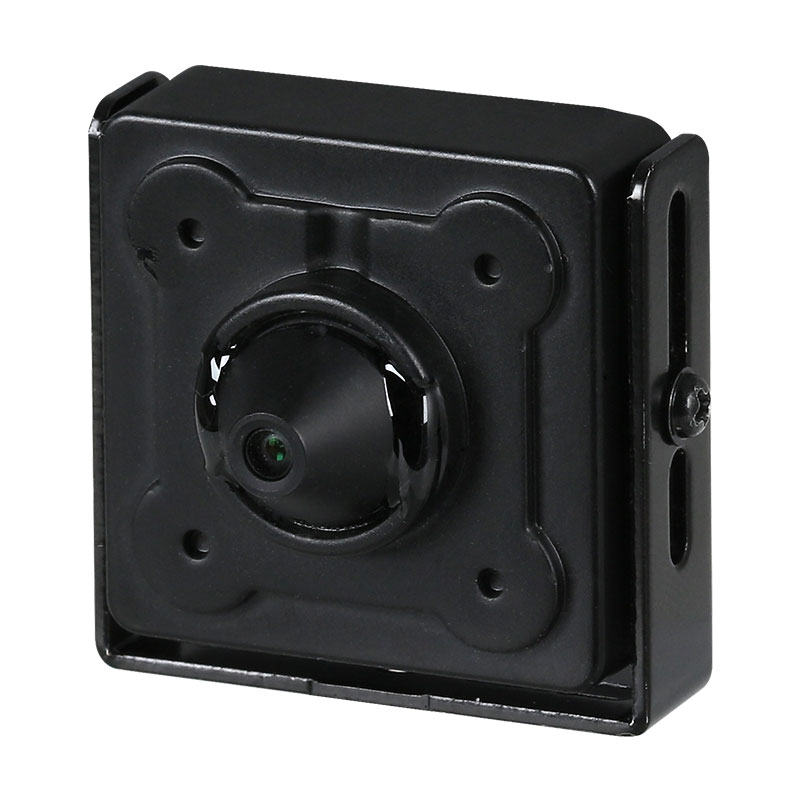

Pinhole Series 2.0MP Fixed HDCVI Pinhole Camera

Brand logo
SKU VSCVI2MPPH3.6
Brand logo

Pinhole Series 2.0MP Fixed HDCVI Pinhole Camera

SKU VSCVI2MPPH3.6

Stock may be limited. Please contact us for availability or for an alternative item.

The VSCVI2MPPH3.6 is an HDCVI pinhole camera, designed for discreet surveillance applications such as at controlled ingress points, shelf surveillance, in vehicles, ATMs and more.

Camera features:
• Stream up to Full HD/2.0MP (1920 x 1080) at 25fps
• Fixed 3.6mm lens with 92° field of view
• Up to 700m video transmission over coaxial cable
• Discreet pinhole housing for covert surveillance
• True wide dynamic range (120dB)
• Auto digital day/night & 2D digital noise reduction
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)

Suggested Products

Suggested product image
UTC Video Output Controller
VSSELECT101

Links and Downloads

Securview PH / RC Pinhole Camera Datasheet (PDF) 0.33 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/2.8" 2.0 Megapixel CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1937 (H) x 1097 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
3.6mm F2.4 Fixed Lens
Lens Type
Fixed
Angle of View
92°
Focus
Fixed / 0.6m Min. Focus Distance
Minimum Illumination
0.05 Lux at F2.4 (Colour) / 0.005 Lux at F2.4 (B&W)
Electronic Shutter
1/4 ~ 1/100,000s
Day/Night
Auto (ICR) / Manual
Infrared Range
N/A
White Balance
Auto / Manual
Noise Reduction
2D / 3D
Gain Control
Auto
Lighting Compensation
BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
51m
Observe (63px/m)
20m
Recognise (125px/m)
10m
Identify (250px/m)
5m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate
25fps (1080p and lower)
Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input
N/A
Alarm Interface
N/A
Video Output
BNC CVI HD output / Composite SD output (switchable)
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
OSD (via HDCVI recorder) / VSSELECT101 (UTC connector)
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
N/A
Vandal Resistant
N/A
Series
Pinhole Series
Housing
Metal
Camera Type
Pinhole
Tri-Axis Mounting
No
Power Input
12VDC
Power Consumption
< 1.2W

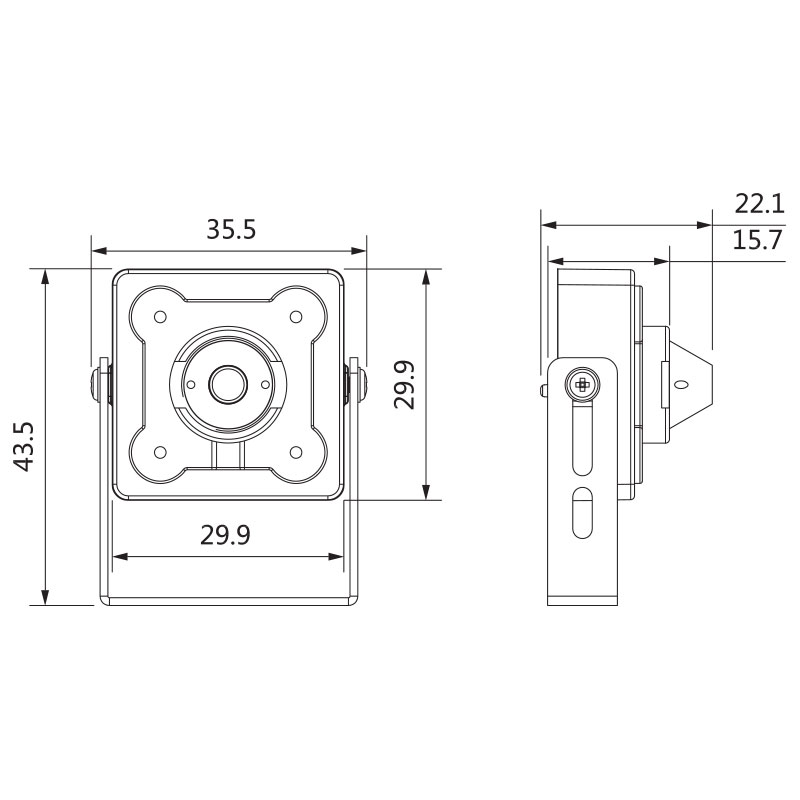

Dimensions
35.5 x 30 x 22mm
Weight
0.09kg
Operating Environment
-30° to 60°C / RH90% (max)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
84 mm
Height
81 mm
Depth
77 mm
Weight
0.13 kg
