Ultimate Series 1080p Motorised HDCVI Bullet

Brand logo
SKU VSCVI2MPFBIRM30M
Brand logo

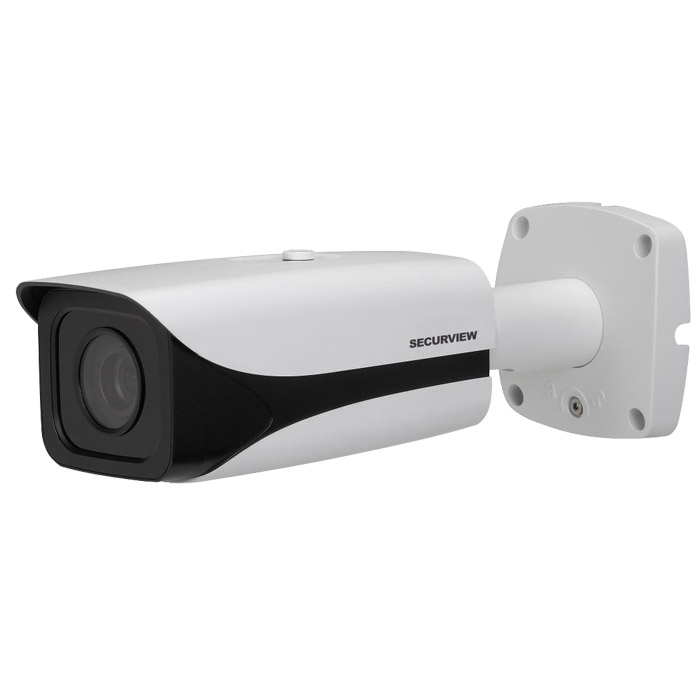

Ultimate Series 1080p Motorised HDCVI Bullet

SKU VSCVI2MPFBIRM30M

The VSCVI2MPFBIRM30M has all the professional features you require including auto-iris motorised lens, alarm and audio interfaces, and 50m maximum infrared illumination distance for strong low-light performance.

• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Motorised 2.7 ~ 12mm lens, auto iris
• 93 ~ 35° horizontal viewing angles
• Up to 500m HD video transmission over coax
• Infrared illumination up to 50m
• IP67 rated for weather resistance
• Dual voltage compatible: 12VDC and 24VAC
• Alarm and audio I/O interface
• Digital WDR & 3D noise reduction

Backwards compatible: HDCVI/Analogue switchable BNC video output.
Analogue mode configuration via on-camera buttons or OSD using HDCVI DVR or tester.

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA121
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152

Links and Downloads

VSCVI2MPFBIRM30M Product Brochure (PDF) 0.29 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/2.8” 2.4 Megapixel CMOS
Max. Resolution
1080p Full HD
Effective Pixels
1984 (H) x 1225 (V)
Signal Noise Ratio
> 50dB
Camera
Lens
2.7 ~ 12mm Motorised Lens; Auto Iris
Lens Type
Motorised Varifocal
Angle of View
93° (wide) ~ 35° (tele)
Focus
Minimum Illumination
0.05 Lux at F1.2 (Colour) / 0 Lux IR Active
Electronic Shutter
1/3 ~ 1/100,000s
Day/Night
Auto (ICR) / Colour / B&W
Infrared Range
White Balance
Auto
Noise Reduction
2D / 3D
Gain Control
Auto
Lighting Compensation
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate
25fps (1080p and lower)
Transmission Distance
Over 500m via 75-3 coaxial cable
Interface
Audio Input
1 channel in
Alarm Interface
1 channel in / 1 channel out
Video Output
1 x BNC SD/HD video output (switchable)
Modes Supported
Mode Switching
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP66
Vandal Resistant
No
Series
Housing
Camera Type
Bullet
Tri-Axis Mounting
No
Power Input
12VDC / 24VAC
Power Consumption
< 7.4W
Dimensions
273 x 95 x 95mm
Weight
1.20kg
Operating Environment
-30° to 60°C / RH95% (max)
Other
Analogue Support
Yes (Switchable)
Backlight Compensation
BLC
Camera Style
Weather Resistant Bullet
Maximum Infrared Range
50m
Video Compression
H.264 / MJPEG
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
180 mm
Height
350 mm
Depth
190 mm
Weight
1.50 kg
