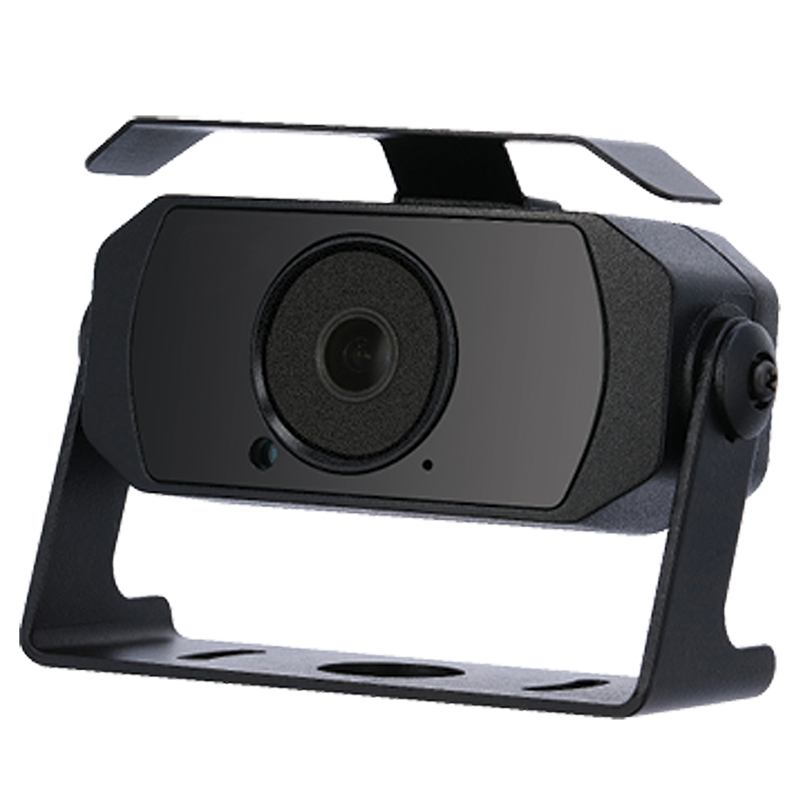

VSCVI2MPCIRAT: Mobile Series 1080p Fixed HDCVI Bumper Camera

Specifications

General

Image Sensor

1/2.9” 2.0 Megapixel CMOS

Max. Resolution

1080p Full HD

Effective Pixels

1920 (H) x 1080 (V)

Signal Noise Ratio

> 65dB

Camera

Lens

3.6mm F2.0 Fixed Lens

Lens Type

Fixed

Angle of View

83°

Focus

Fixed / 0.8m Min. Focus Distance

Minimum Illumination

0.02 Lux at F2.0 (Colour) / 0 Lux IR Active

Electronic Shutter

1/25 ~ 1/100000s

Day/Night

Auto (ICR) / Manual

Infrared Range

20m

White Balance

Auto / Manual

Noise Reduction

Gain Control

Auto

Lighting Compensation

BLC / HLC / DWDR

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

57m

Observe (63px/m)

23m

Recognise (125px/m)

11m

Identify (250px/m)

Video

Resolution

1080p (1920 x 1080) to CIF (352 x 288)

Frame Rate

25fps (1080p and lower)

Transmission Distance

3m / 6m / 12m / 18m heavy duty cables available

Interface

Audio Input

Built-in microphone

Alarm Interface

N/A

Video Output

1x M12 BNC HDCVI output

Modes Supported

Mode Switching

Synchronisation

N/A

OSD Menu

Support

Environmental

Ingress Protection

IP67

Vandal Resistant

N/A

Series

Mobile

Housing

Metal

Camera Type

Bumper

Tri-Axis Mounting

Power Input

12VDC

Power Consumption

<2.9W

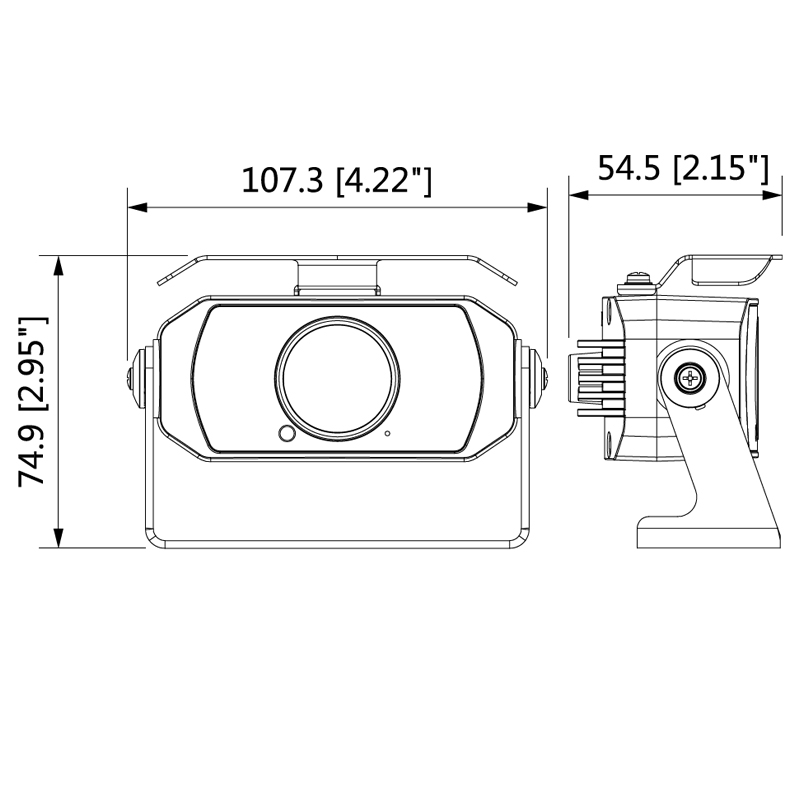

Dimensions

107 x 43 x 55mm

Weight

0.31kg

Operating Environment

-40° to 70°C / RH90% (max)

Other

Analogue Support

Warranty (Years)
