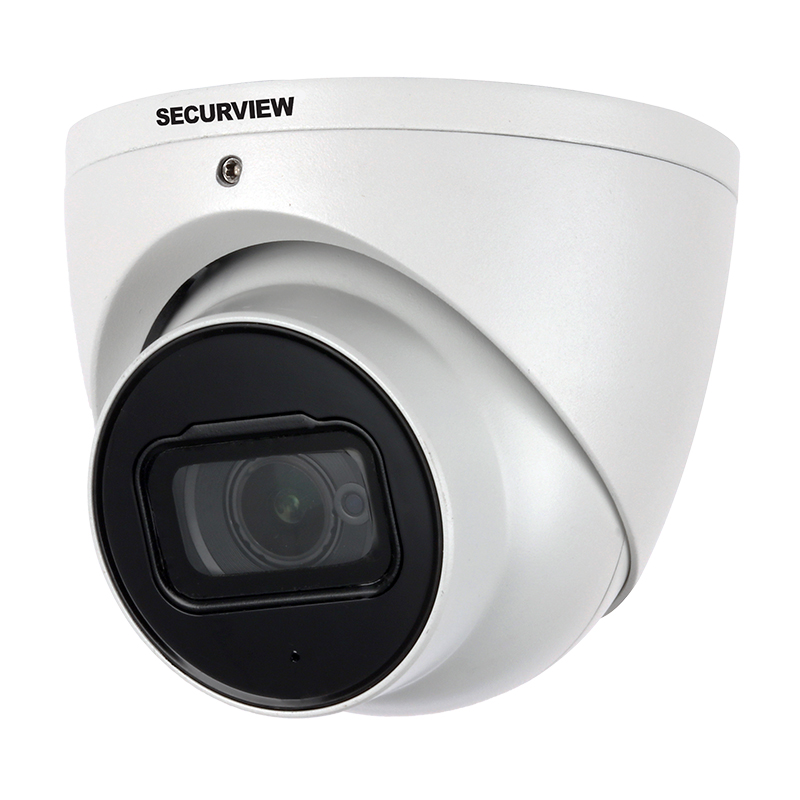

Professional Series 8.0MP Fixed HDCVI Mini Dome

Brand logo
SKU VSCVI-8DIRG
Brand logo

Professional Series 8.0MP Fixed HDCVI Mini Dome

SKU VSCVI-8DIRG

The VSCVI-8DIRG offers high performance surveillance over coax in a compact body. Deliver perfect evidence in challenging conditions with weather resistance for outdoor use, low light colour footage and a small install footprint.

Camera features:
• Stream up to UHD/4K/8.0MP (3840 x 2160) at 15fps
• 2.8mm lens with wide 111° viewing angle
• Superb colour image performance in low light at 0.005lx
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 50m range
• Switchable BNC output for HD/composite video
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistance
• Compact Ø106mm base for versatile installation
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via DIP switches

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA139
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB204W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

Securview BIRG/DIRG Series Datasheet (PDF) 0.59 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/2" 8.0 Megapixel CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.8mm F1.6 Fixed Lens
Lens Type
Fixed
Angle of View
111°
Focus
Fixed / 1.8m Min. Focus Distance
Minimum Illumination
0.005 Lux at F1.6 (Colour) / 0 Lux IR Active
Electronic Shutter
1/4 ~ 1/100,000s
Day/Night
Auto (ICR) / Colour / B&W
Infrared Range
50m
White Balance
Auto / Manual
Noise Reduction
2D / 3D
Gain Control
AGC
Lighting Compensation
BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
84m
Observe (63px/m)
34m
Recognise (125px/m)
17m
Identify (250px/m)
8m
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate
15fps (8.0MP) / 20fps (6.0MP) / 25fps (4.0MP and lower)
Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input
1 channel in & Built-in Mic
Alarm Interface
N/A
Video Output
1 x HDCVI / AHD / TVI / Composite video output
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
DIP Switches
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Professional Series
Housing
Aluminium
Camera Type
Dome
Tri-Axis Mounting
Yes
Power Input
12VDC
Power Consumption
< 8W
Dimensions
Ø106 x 99mm
Weight
0.5kg
Operating Environment
-30° to 60°C / RH90% (max)
Other
Category
HDCVI Surveillance
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
156 mm
Height
156 mm
Depth
137 mm
Weight
0.60 kg
