Professional Series 5.0MP 2.8mm Fixed HDCVI Vandal Dome

SKU VSCVI-5DIR2.8D

Professional Series 5.0MP 2.8mm Fixed HDCVI Vandal Dome

SKU VSCVI-5DIR2.8D

Stock may be limited. Please contact us for availability or for an alternative item.

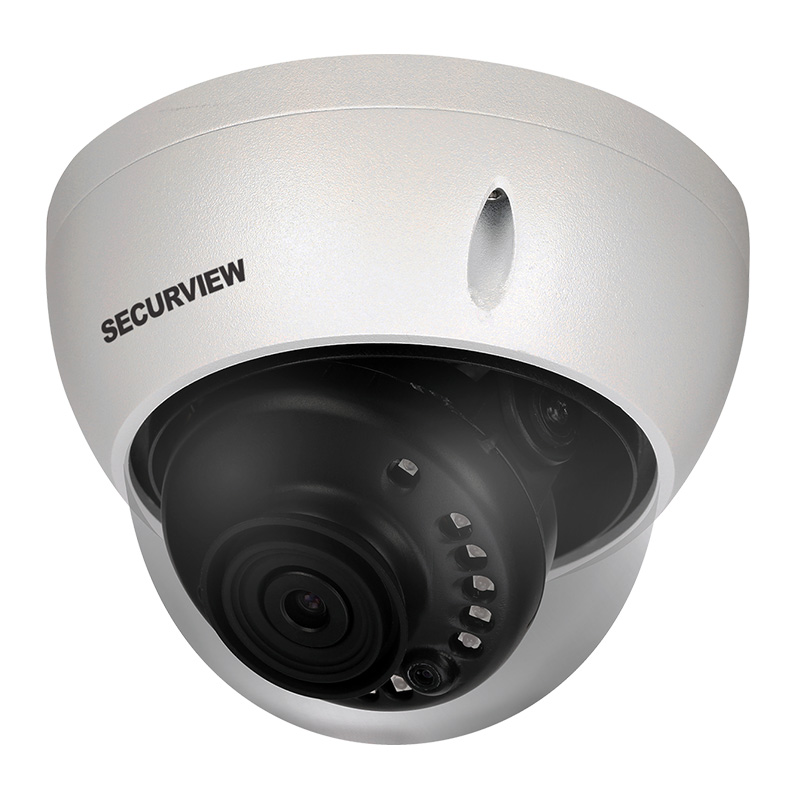

The VSCVI-5DIR2.8D offers high performance surveillance over coax in a compact body. Deliver perfect evidence in challenging conditions with weather and vandal resistance, ultra low light colour performance and a small install footprint.

Camera features:
• Stream up to 5.0MP (2592 x 1944) at 20fps
• 2.8mm lens with wide 98° viewing angle
• Superb colour image performance in low light at 0.005lx
• Smart infrared illumination, up to 30m range
• Switchable BNC output for HD/composite video
• True WDR (120dB) and 2D/3D noise reduction
• Up to 700m video transmission over coaxial cable
• IP67/IK10 rated for weather and vandal resistance
• Compact Ø110mm base for versatile installation
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via DIP switches

Suggested Products

Adapter for Ceiling & Wall Mount Brackets
VSBKTA106

780mm Extender for Ceiling Mount Bracket
VSBKTA117

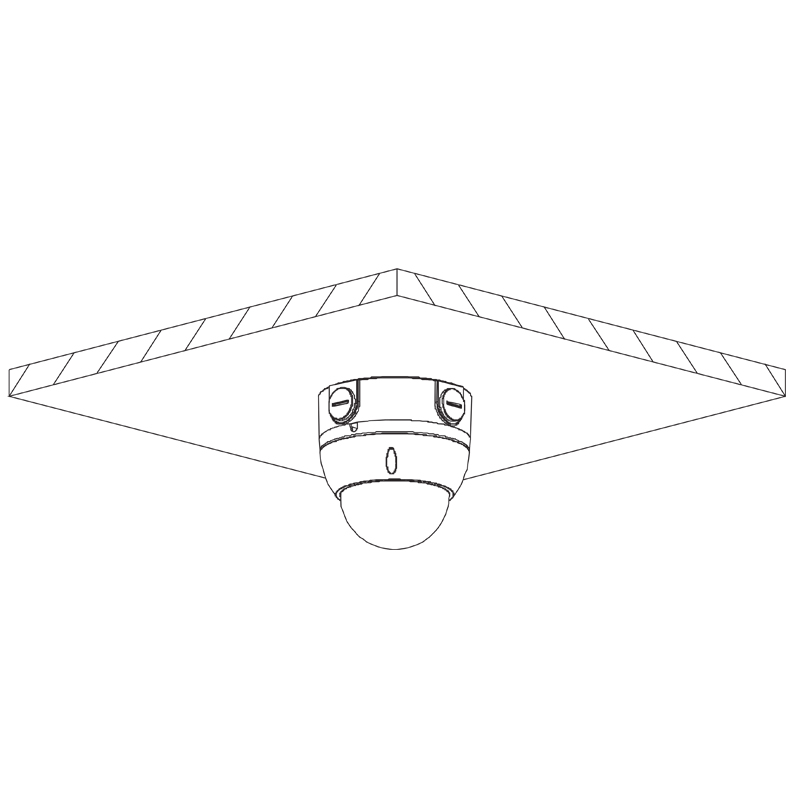

Adapter/Junction Box for Surveillance Cameras
VSBKTA123

Adapter/Junction Box for Surveillance Cameras
VSBKTA136

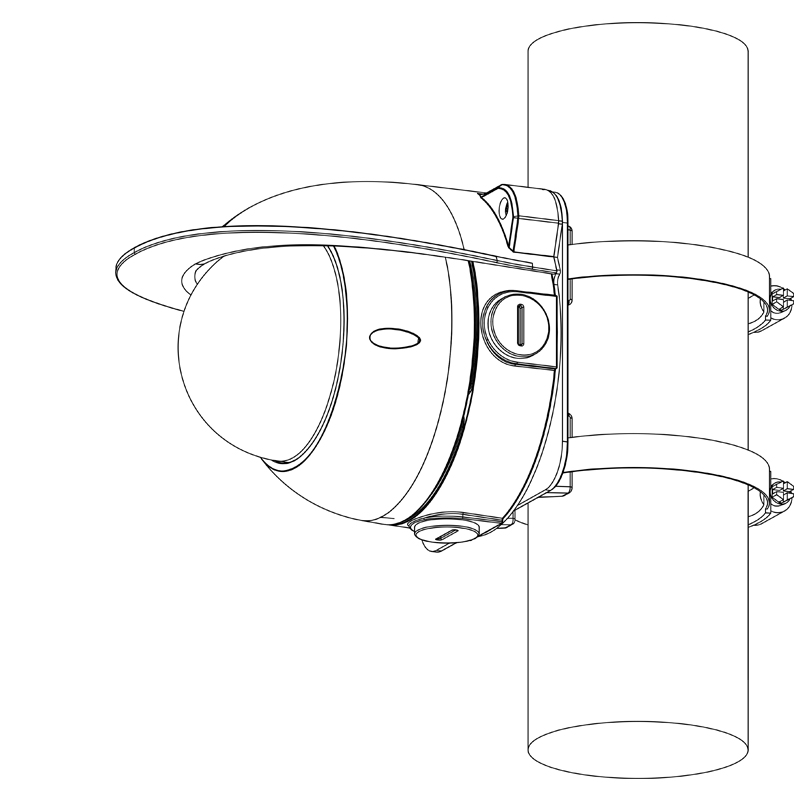

Triple Clamp Pole Mount Camera Bracket
VSBKTA150

Corner Wall Mount Camera Bracket
VSBKTA151

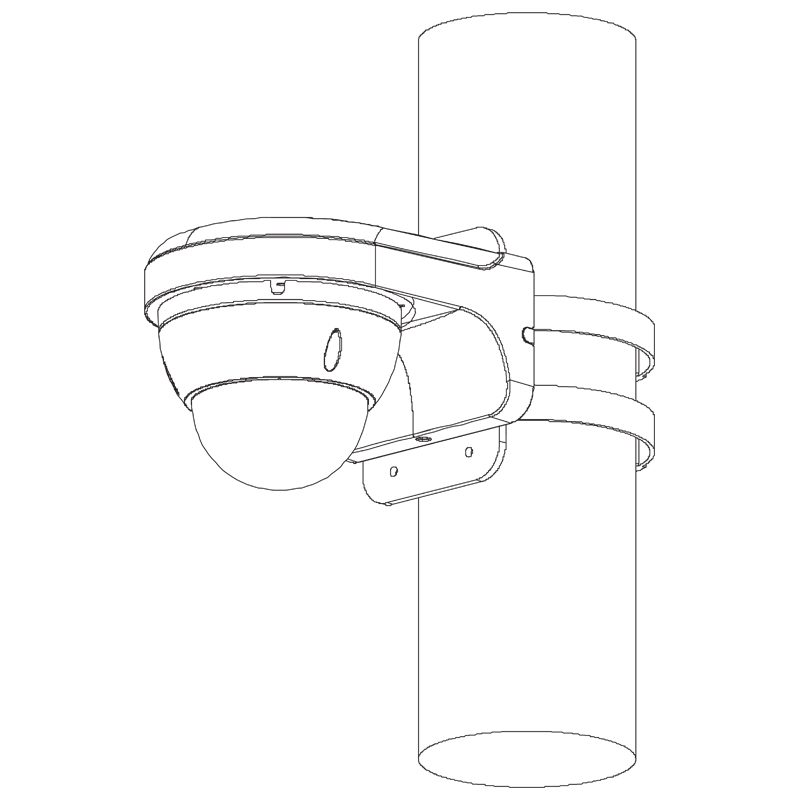

Dual Clamp Pole Mount Camera Bracket
VSBKTA152E

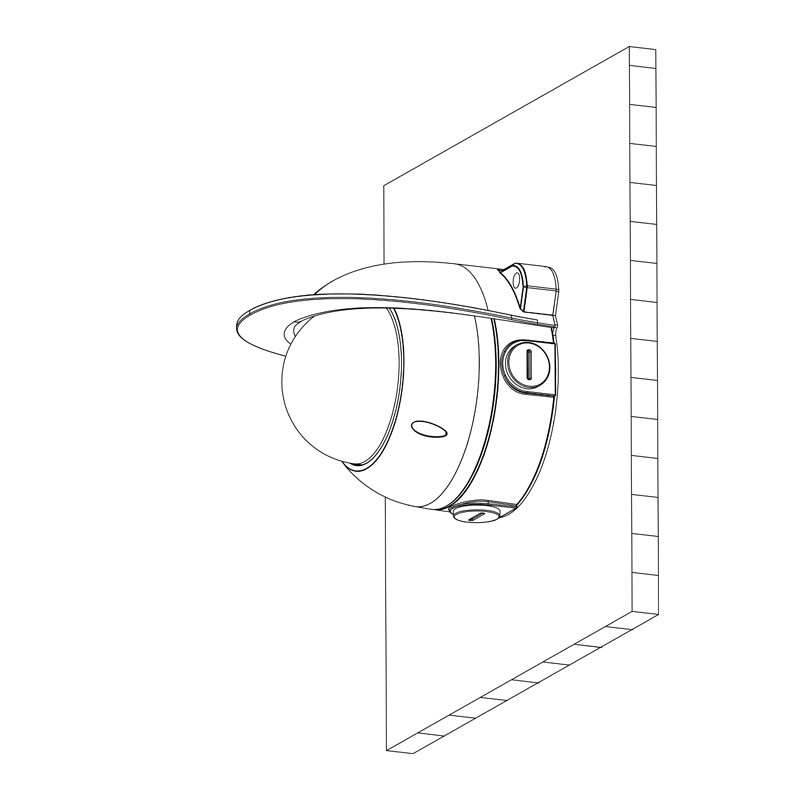

Rain Cover Dome Camera Bracket
VSBKTA200W

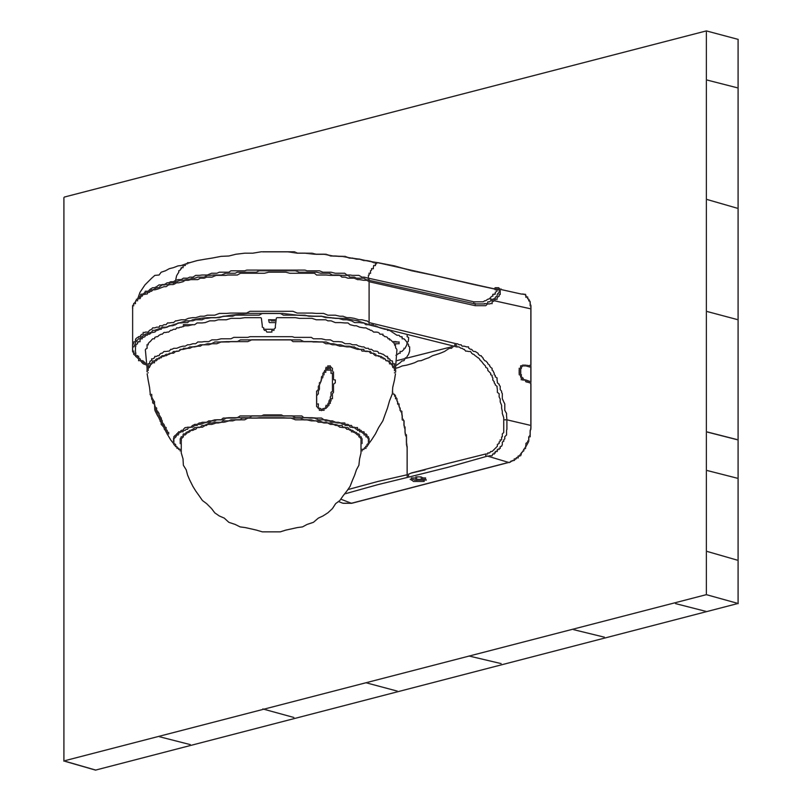

Right Angle Wall Mount Camera Bracket
VSBKTB203W

760mm Ceiling Mount Dome Bracket
VSBKTB220C

Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

Securview VSCVI-5DIR2.8D Datasheet.pdf 1.16 MB

Accessory Compatibility Guide 2023 (PDF) 1.60 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Image Sensor

1/2.8” 5.0 Megapixel CMOS

Max. Resolution

2592 x 1944

Effective Pixels

2592 (H) x 1944 (V)

Signal Noise Ratio

>65dB

Camera

Lens

2.8mm F1.6 Fixed Lens

Lens Type

Fixed

Angle of View

98°

Focus

Fixed / 0.8m Min. Focus Distance

Minimum Illumination

0.005 Lux at F1.6 (Colour) / 0 Lux IR Active

Electronic Shutter

1/4s ~ 1/100,000s

Day/Night

Auto (ICR) / Color / B&W

Infrared Range

30m

White Balance

Auto / Manual

Noise Reduction

2D / 3D

Gain Control

Auto

Lighting Compensation

BLC / HLC / WDR (120dB)

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

56m

Observe (63px/m)

22m

Recognise (125px/m)

11m

Identify (250px/m)

Video

Resolution

5.0MP (2592 x 1944) to CIF (352 x 288)

Frame Rate

20fps (5.0MP) / 25fps (4.0MP and lower)

Transmission Distance

Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)

Interface

Audio Input

1 channel in

Alarm Interface

N/A

Video Output

1 x HDCVI / AHD / TVI / Composite video output (switchable via DIP switch)

Modes Supported

HDCVI, AHD, HDTVI & Composite

Mode Switching

DIP Switches

Synchronisation

Internal

OSD Menu

Support

Environmental

Ingress Protection

IP67

Vandal Resistant

IK10

Series

Professional Series

Housing

Metal & Polycarbonate

Camera Type

Dome

Tri-Axis Mounting

Yes

Power Input

12VDC

Power Consumption

<5.3W

Dimensions

Ø110 x 81mm

Weight

0.33kg

Operating Environment

-30° to 60°C / RH90% (max)
