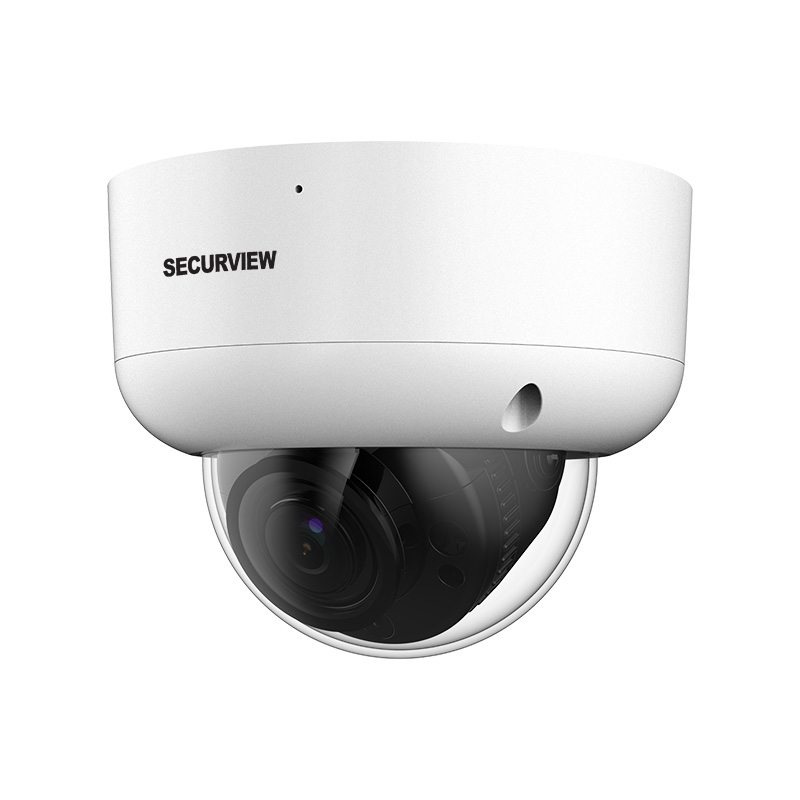

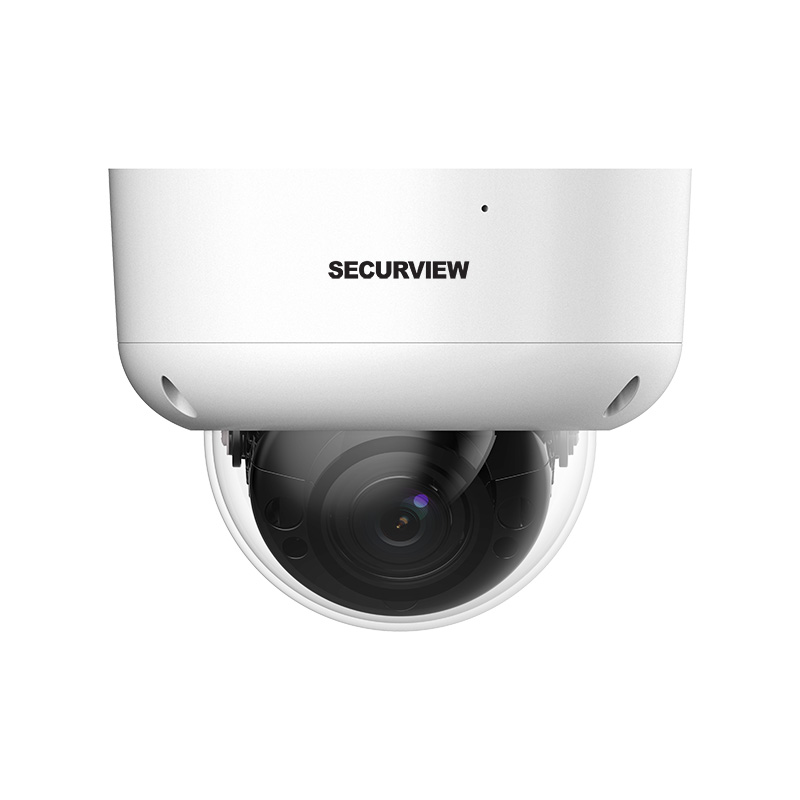

Professional Series 2.0MP Motorised HDCVI Vandal Dome

Brand logo
SKU VSCVI-2DIRMD
Brand logo

Professional Series 2.0MP Motorised HDCVI Vandal Dome

SKU VSCVI-2DIRMD

With high resolution image quality up to 1080p and a compact, weather resistant aluminium body, the
VSCVI-2DIRMD captures excellent video footage, ultra-low light performance, long range infrared, and zero image distortion with its flat lens cover.

Camera features:
• Stream up to 2.0MP (1920 x 1080) at 25fps
• Motorised varifocal 2.7~13.5mm lens with fixed iris
• 108° ~ 30° horizontal viewing angles
• Superb colour image performance in low light at 0.001lx
• Smart infrared illumination, up to 60m range
• CVI / TVI / AHD / CVBS / Composite switchable via DIP switch
• True WDR (130dB) and 2D/3D noise reduction
• Audio signal transmission over coaxial cable
• IP67 rated weather resistant metal housing
• Dual power input 12VDC/24VAC
• Switch modes via DIP switches

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA123
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image

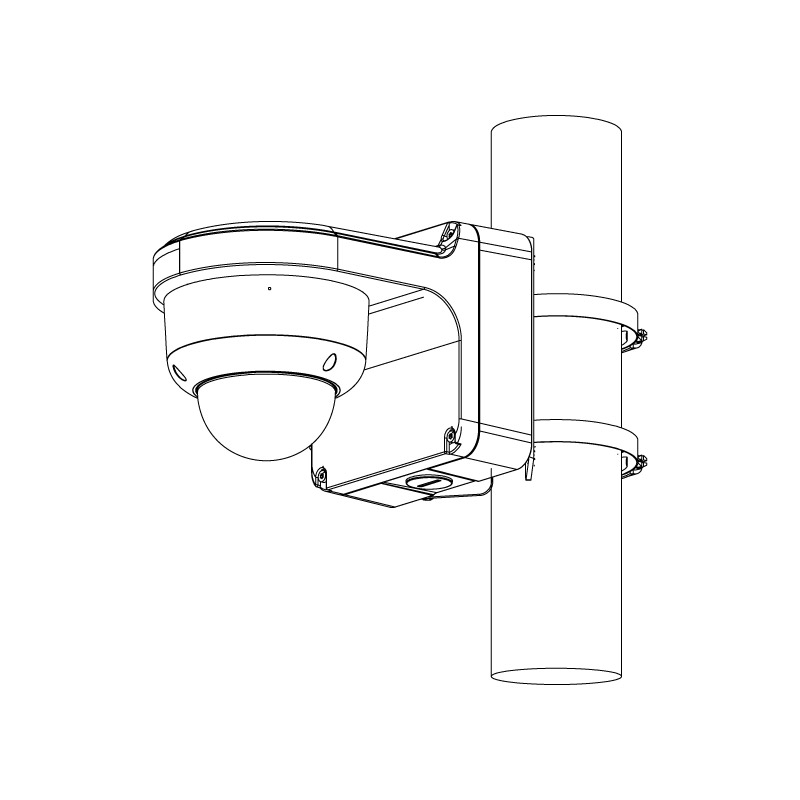

Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image

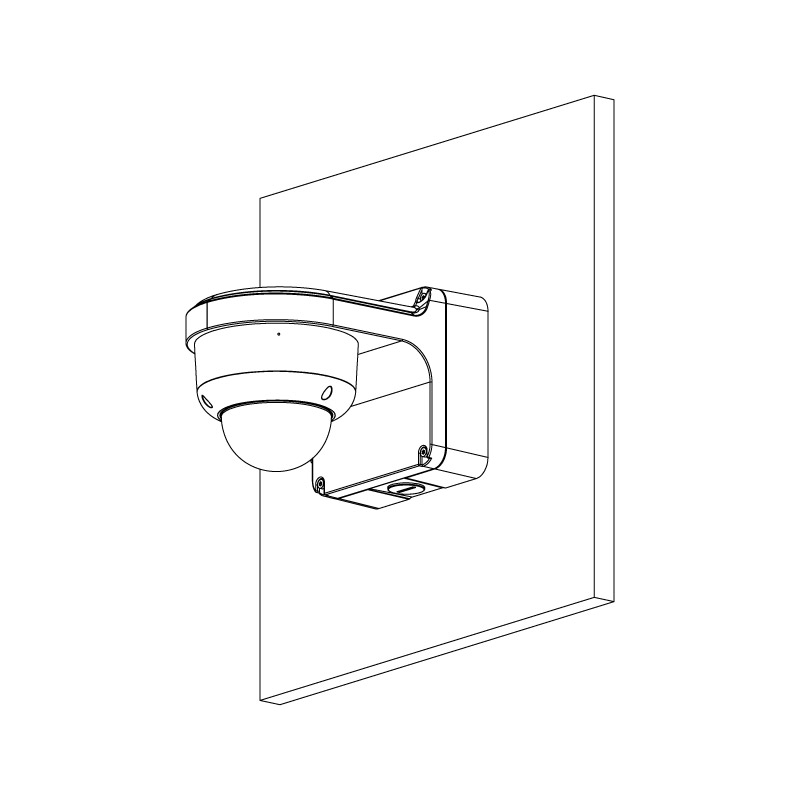

Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image

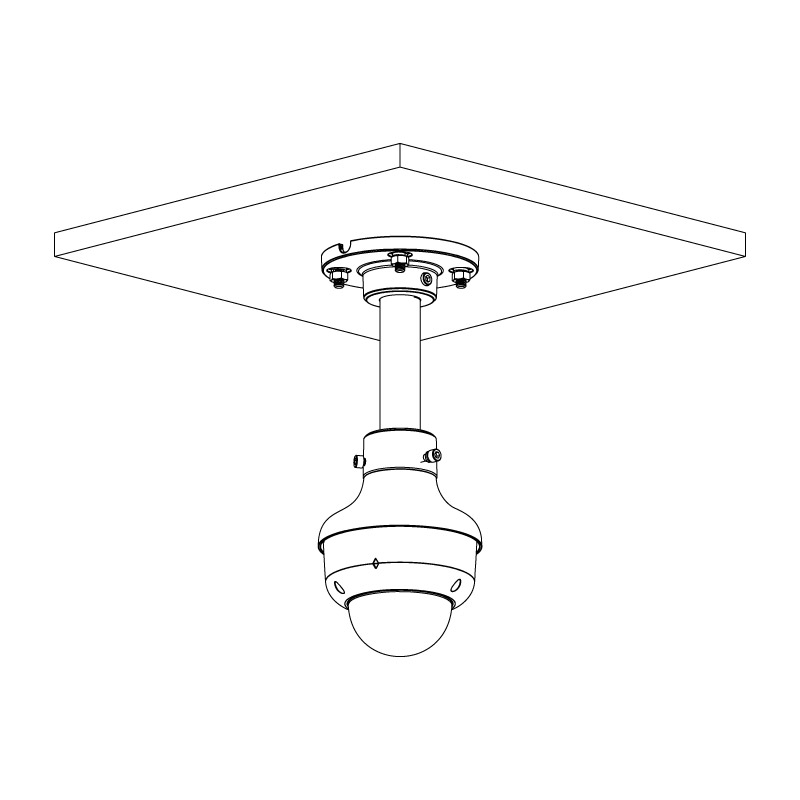

760mm Ceiling Mount Dome Bracket
VSBKTB220C

Links and Downloads

Secureview Victory Series VSCVI-2DIRMD (pdf) 0.87 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
2.0 Megapixel CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) × 1080 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.7mm ~ 13.5mm F1.3 Motorised Lens, fixed iris
Lens Type
Motorised Varifocal
Angle of View
108° ~ 30° (H) / 56° ~ 17° (W)
Focus
Fixed / 0.8m Min. Focus Distance
Minimum Illumination
0.001 Lux at F1.5 (Colour) / 0 Lux IR Active
Electronic Shutter
1/25s ~ 1/100,000 s
Day/Night
Auto (ICR) / Color / B&W
Infrared Range
60m
White Balance
Auto
Noise Reduction
3D
Gain Control
Auto / Manual
Lighting Compensation
BLC / HLC / WDR (130dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
44m
Observe (63px/m)
18m
Recognise (125px/m)
9m
Identify (250px/m)
4m
Video
Resolution
1080p (1920 x 1080) to 960H (960 × 576/960 × 480)
Frame Rate
25fps (1080p and lower)
Transmission Distance
-
Interface
Audio Input
1 channel in & Built-in Mic
Alarm Interface
N/A
Video Output
1 x CVI / TVI / AHD / CVBS by one BNC port (DIP Switch)
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
DIP Switches
Synchronisation
N/A
OSD Menu
N/A
Environmental
Ingress Protection
IP67
Vandal Resistant
IK10
Series
Professional Series
Housing
Metal
Camera Type
Vandal Dome
Tri-Axis Mounting
No
Power Input
12VDC / 24VAC
Power Consumption
< 9.9W

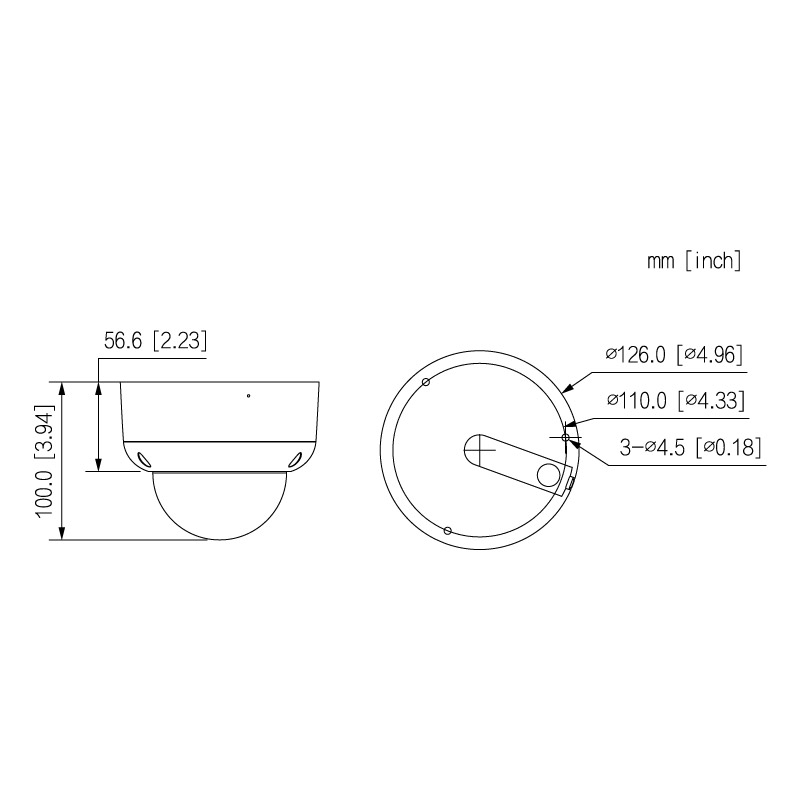

Dimensions
Ø126mm x 100mm
Weight
0.65kg
Operating Environment
-30° to 60°C / RH90% (max)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
150 mm
Depth
140 mm
Weight
1.00 kg
