Professional Series 2.0MP 24/7 Colour Fixed HDCVI Turret

SKU VSCVI-2DFCG

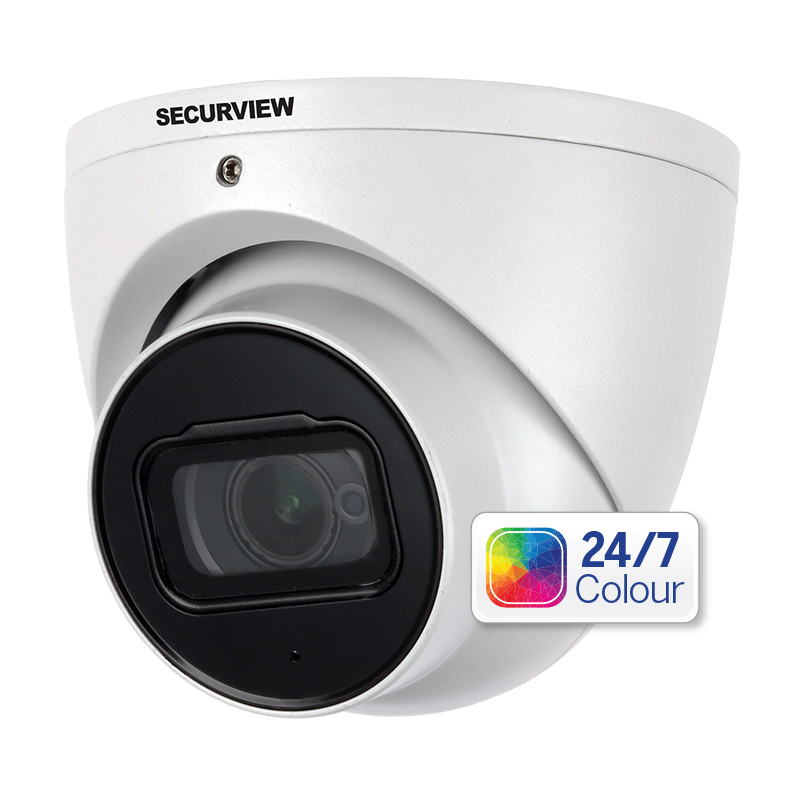

Professional Series 2.0MP 24/7 Colour Fixed HDCVI Turret

SKU VSCVI-2DFCG

Designed specially for low light applications, the VSCVI-2DFCG 24/7 Colour HDCVI dome is capable of capturing vivid colour footage in the most challenging lighting conditions, with a high performance image sensor and large aperture lens.

Camera features:
• Stream up to Full HD 1080p (1980x 1020) at 25fps
• 3.6mm fixed lens with 90° viewing angle
• 24/7 Colour low light footage at 0.001lx
• Large 1/2.8'' sensor for excellent low light performance
• HDCVI / AHD / TVI / Composite switchable via DIP switch
• Up to 700m video transmission over coaxial cable
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistant metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via DIP switches

Suggested Products

Adapter for Ceiling & Wall Mount Brackets
VSBKTA106

780mm Extender for Ceiling Mount Bracket
VSBKTA117

Adapter/Junction Box for Surveillance Cameras
VSBKTA130E

Adapter/Junction Box for Surveillance Cameras
VSBKTA139

Triple Clamp Pole Mount Camera Bracket
VSBKTA150

Corner Wall Mount Camera Bracket
VSBKTA151

Dual Clamp Pole Mount Camera Bracket
VSBKTA152E

Right Angle Wall Mount Camera Bracket
VSBKTB204W

760mm Ceiling Mount Dome Bracket
VSBKTB220C

Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

Product Feature Guide - Securview 247 Colour.pdf 1.89 MB

Securview FCG / DIRG Pro Turret Dome Datasheet (PDF) 1.37 MB

Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Image Sensor

1/2.8” 2.0 Megapixel CMOS

Max. Resolution

2.0 Megapixel

Effective Pixels

1920(H)×1080(V)

Signal Noise Ratio

> 65dB

Camera

Lens

3.6mm F1.0 Fixed Lens

Lens Type

Fixed

Angle of View

90°

Focus

Fixed / 1.6m Min. Focus Distance

Minimum Illumination

0.001 Lux at F1.0 (Colour)

Electronic Shutter

1/4s ~ 1/100,000s

Day/Night

Auto (ICR) / Manual

Infrared Range

N/A

White Balance

Auto / Manual

Noise Reduction

2D / 3D

Gain Control

Auto

Lighting Compensation

BLC / HLC / WDR (120dB)

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

53m

Observe (63px/m)

21m

Recognise (125px/m)

11m

Identify (250px/m)

Video

Resolution

2.0MP 1920 x 1080

Frame Rate

25fps (1080p and lower)

Transmission Distance

Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)

Interface

Audio Input

1 channel in & Built-in Mic

Alarm Interface

N/A

Video Output

1 x HDCVI / AHD / TVI / Composite video output

Modes Supported

HDCVI, AHD, HDTVI & Composite

Mode Switching

DIP Switches

Synchronisation

Internal

OSD Menu

Support

Environmental

Ingress Protection

IP67

Vandal Resistant

N/A

Series

Professional Series

Housing

Aluminium

Camera Type

Turret

Tri-Axis Mounting

N/A

Power Input

12VDC

Power Consumption

<7W

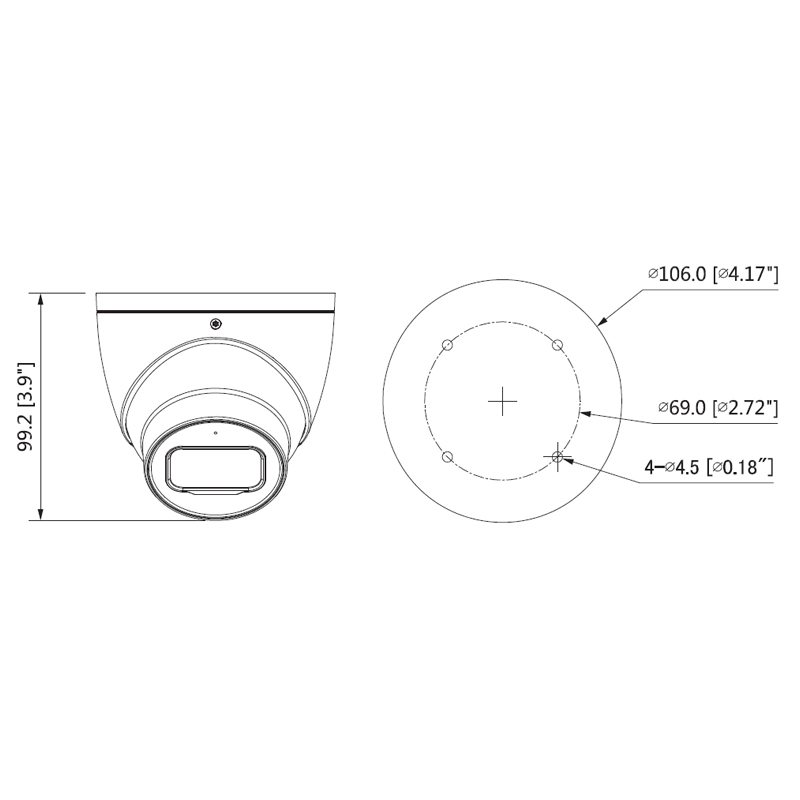

Dimensions

Ø106 x 99mm

Weight

0.50kg

Operating Environment

-30° to 60°C / RH90% (max)

Other
