Professional Series 2.0MP WDR Vari-Focal Motorised HDCVI Bullet

Brand logo
SKU VSCVI-2BIRMG
Brand logo

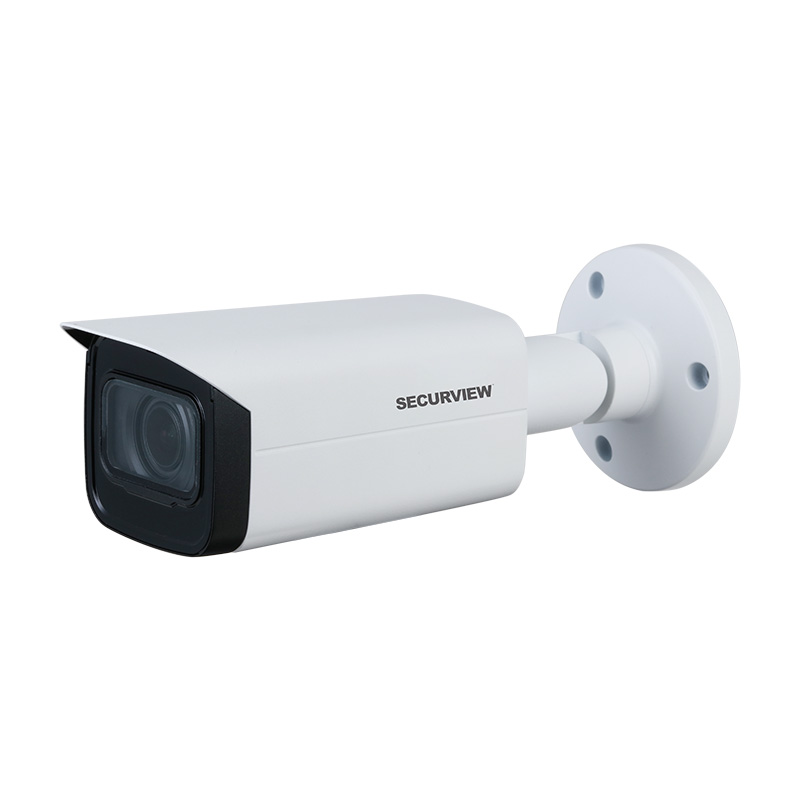

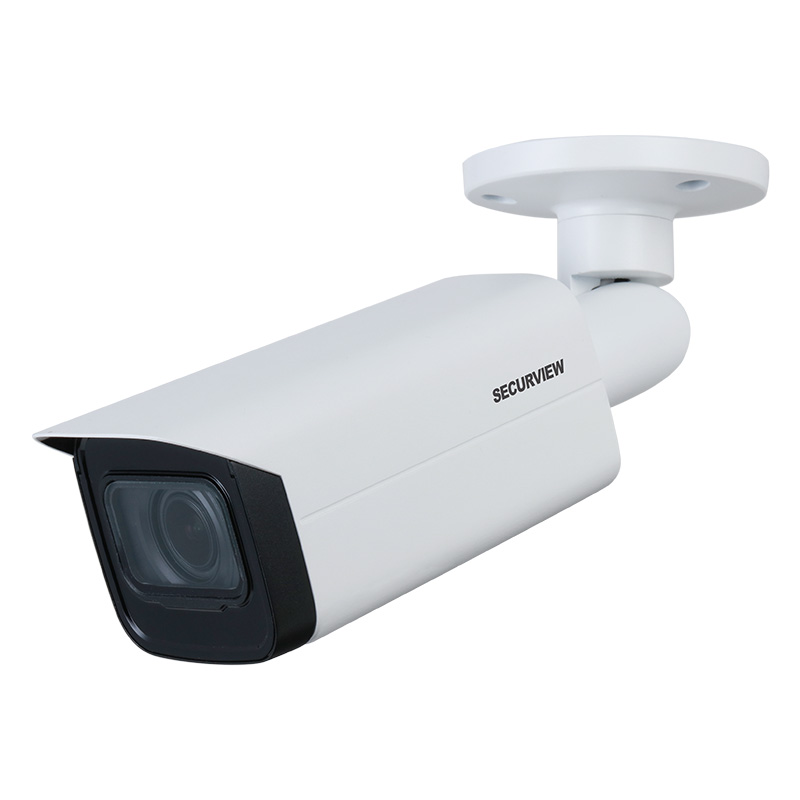

Professional Series 2.0MP WDR Vari-Focal Motorised HDCVI Bullet

SKU VSCVI-2BIRMG

With superior 80m infrared illumination, more than double Full HD resolution and ultra low light colour, the VSCVI-2BIRMG captures clear footage at all hours, featuring a motorized varifocal lens for easy remote image adjustment.

Camera features:
• Stream 2.0MP (1920 x 1080) at 25fps
• Motorized varifocal 2.7~13.5mm lens with motorized iris
• 2.0MP CMOS sensor for excellent low light performance
• Smart infrared illumination, up to 80m range
• HDCVI / AHD / Composite switchable via DIP switch
• Up to 700m video transmission over coaxial cable
• True WDR (120dB) and 3D noise reduction
• IP67 rated weather resistant metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via DIP switches

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E

Links and Downloads

VSCVI-2BIRMG & VSCVI-5BIRMG Data Sheet.pdf 3.31 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/2.7" 2.0MP CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 x 1080
Signal Noise Ratio
>65db
Camera
Lens
2.7mm ~ 13.5mm F1.5 Motorised Lens, Fixed Iris
Lens Type
Motorized Varifocal
Angle of View
108.° (wide) ~ 30° (tele)
Focus
Fixed / 0.8m Min. Focus Distance
Minimum Illumination
0.001 Lux at F1.5 (Colour) / 0 Lux IR Active
Electronic Shutter
1/25 s ~ 1/100,000s
Day/Night
Auto (ICR) / Manual / Colour / BW
Infrared Range
80m
White Balance
Auto / Area WB
Noise Reduction
3D NR
Gain Control
Auto/Manual
Lighting Compensation
BLC / HLC / WDR / HLC-Pro (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
44.1m
Observe (63px/m)
17.6m
Recognise (125px/m)
8.8m
Identify (250px/m)
4.4m
Video
Resolution
2.0MP (1920 x 1080) to 960H (960 x 576)
Frame Rate
25fps (1080p and lower)
Transmission Distance
Rated for up to 700m via coaxial cable (performed in ideal test conditions)
Interface
Audio Input
1 Channel built-in microphone
Alarm Interface
N/A
Video Output
1 x HDCVI / AHD / TVI / Composite video output
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
DIP Switch
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Professional Series
Housing
Aluminium
Camera Type
Bullet
Tri-Axis Mounting
No
Power Input
12VDC / 24VAC
Power Consumption
< 12.5W

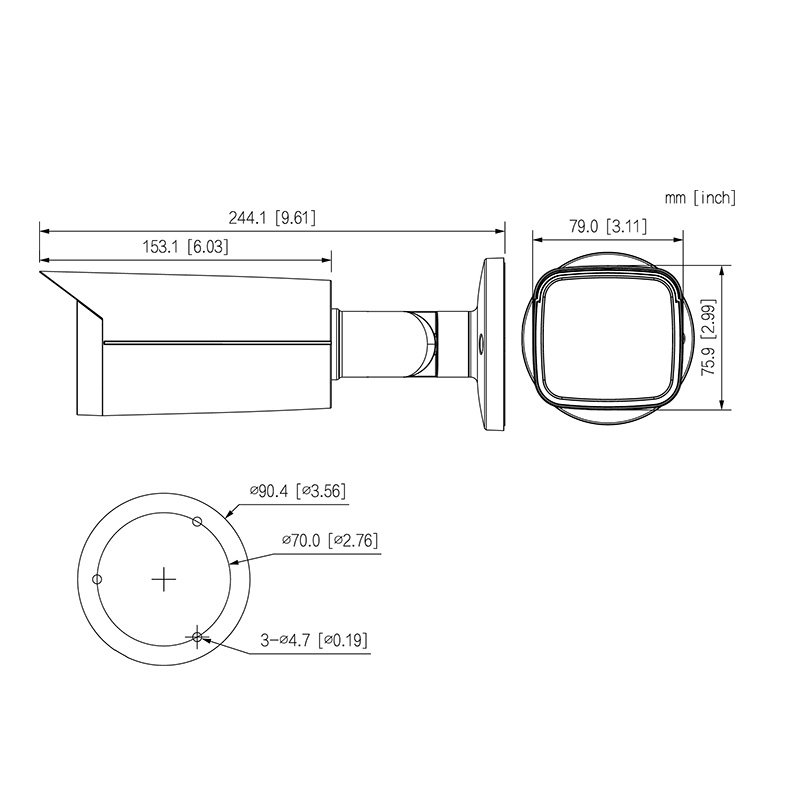

Dimensions
244.1mm x 90.4mm x 90.4mm
Weight
0.79kg
Operating Environment
-30° to 60°C / RH95% (max)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
110 mm
Depth
300 mm
Weight
1.00 kg
