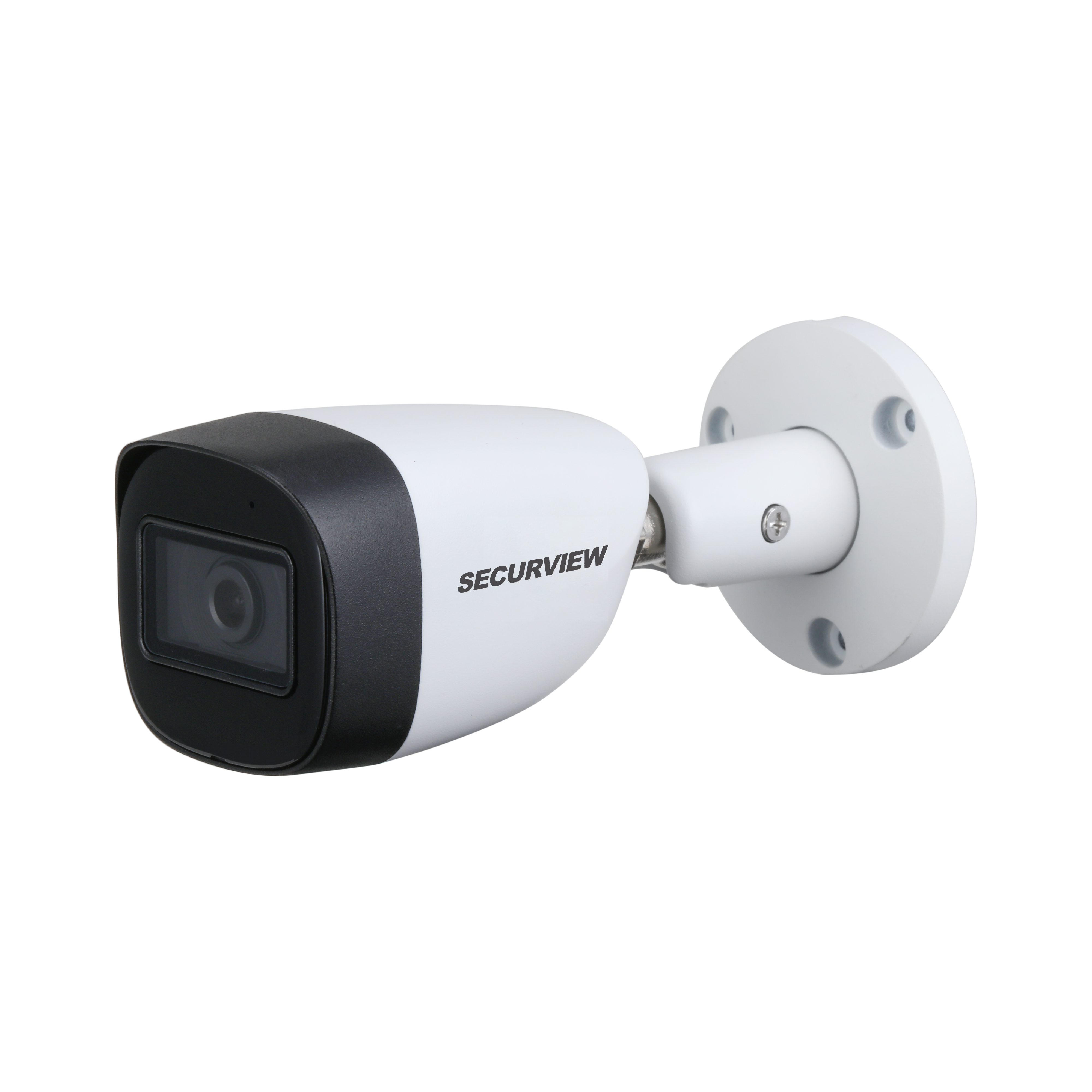

Professional Series 2.0MP WDR Fixed Lens HDCVI Bullet

Brand logo
SKU VSCVI-2BIRG
Brand logo

Professional Series 2.0MP WDR Fixed Lens HDCVI Bullet

SKU VSCVI-2BIRG

A fixed lens bullet camera, with 120dB true WDR and a multi-language OSD and HD/SD switchable output.

Camera features:
• Stream 2.0MP (1920 x 1080) at 25fps
• Smart infrared illumination, up to 30m range
• 2.0 Megapixel CMOS sensor for excellent low light performance
• Up to 700m video transmission over coaxial
• Black and white image in low light at 0.001lx
• 2MP CMOS sensor for excellent low light performance
• True WDR (130dB) and 2D/3D noise reduction
• IP67, metal weather rated camera housing

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA134
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E

Links and Downloads

VSCVI-5BIRG2 & VSCVI-2BIRG Datasheet 2023.pdf 2.95 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/2.7" 2.0MP CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 x 1080
Signal Noise Ratio
>65db
Camera
Lens
2.8mm F1.6 Fixed Iris
Lens Type
Fixed-Focal Lens
Angle of View
109°
Focus
Fixed / 0.7m Min. Focus Distance
Minimum Illumination
0.001 Lux at F1.6 (Colour) / 0 Lux IR Active
Electronic Shutter
1/25 s ~ 1/100,000s
Day/Night
Auto (ICR) / Colour / BW
Infrared Range
30m
White Balance
Auto / Manual
Noise Reduction
2D NR / 3D NR
Gain Control
Auto/Manual
Lighting Compensation
BLC / HLC / WDR (130dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
42.2m
Observe (63px/m)
16.9m
Recognise (125px/m)
8.4m
Identify (250px/m)
4.2m
Video
Resolution
5.0 MP (2880 x 1620) to 960H (960 x 480)
Frame Rate
25fps (5.0MP and lower)
Transmission Distance
Rated for up to 700m via coaxial cable (performed in ideal test conditions)
Interface
Audio Input
1 Channel built-in microphone
Alarm Interface
N/A
Video Output
1 x HDCVI / AHD / TVI / Composite video output
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
DIP Switch
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Professional Series
Housing
Aluminium
Camera Type
Bullet
Tri-Axis Mounting
No
Power Input
12VDC
Power Consumption
< 3.0W
Dimensions
161.3mm x 69.7mm x 70.0mm
Weight
0.33kg
Operating Environment
-40° to +60°C / RH95% (max)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
80 mm
Height
190 mm
Depth
90 mm
Weight
1.00 kg
