Adapter/Junction Box for Bullet & PTZ Cameras

Brand logo
SKU VSBKTA143

Adapter/Junction Box for Bullet & PTZ Cameras

SKU VSBKTA143

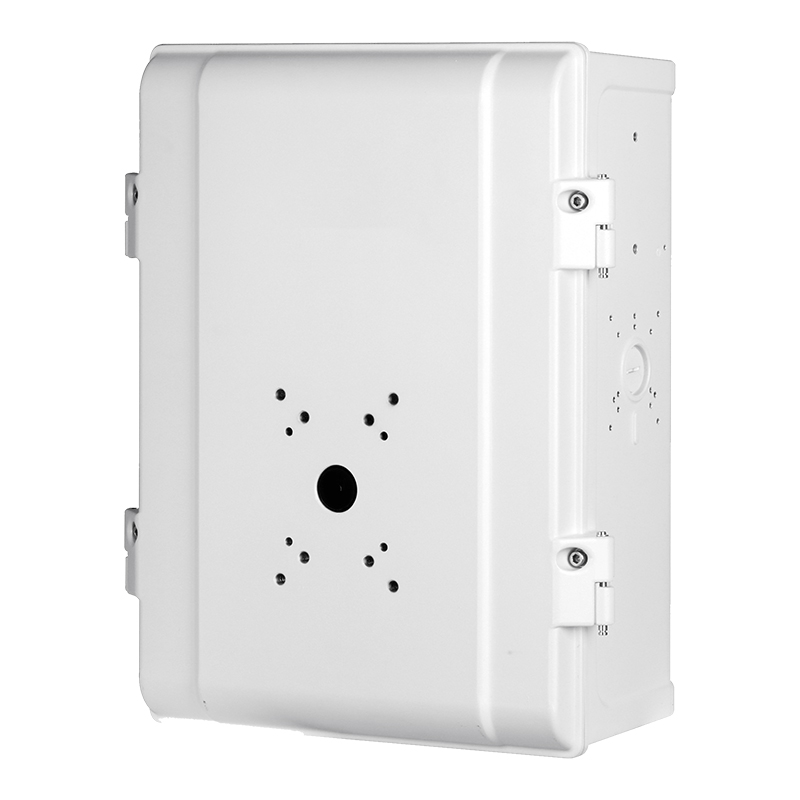

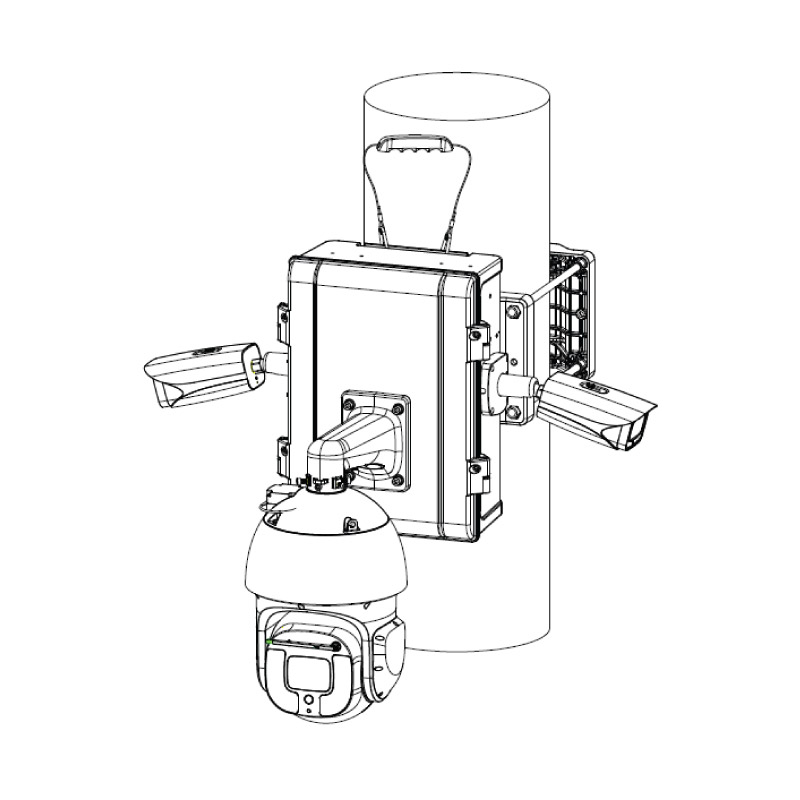

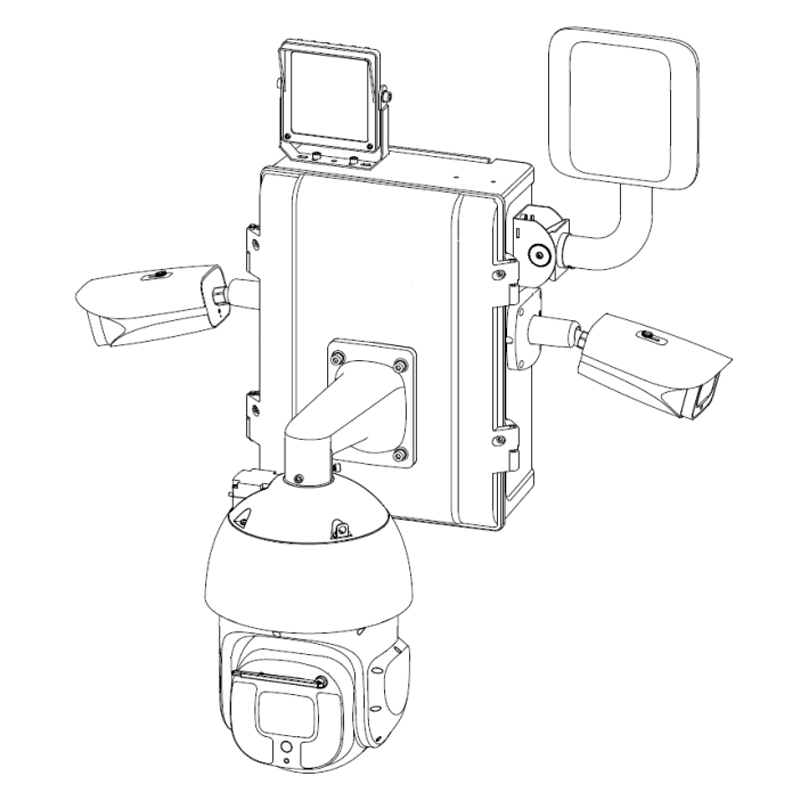

Aluminium adapter/junction box used as a spacer or as connector for corner & pole mounts. For PTZ surveillance and bullet cameras.

Links and Downloads

Large Adapter/Junction Box datasheet (pdf) 0.27 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Connection
Bracket Type
Junction Box
Load Bearing Capacity
10.00kg (front) / 6.00kg (side) / 5.00kg (inside)
Pipe Thread

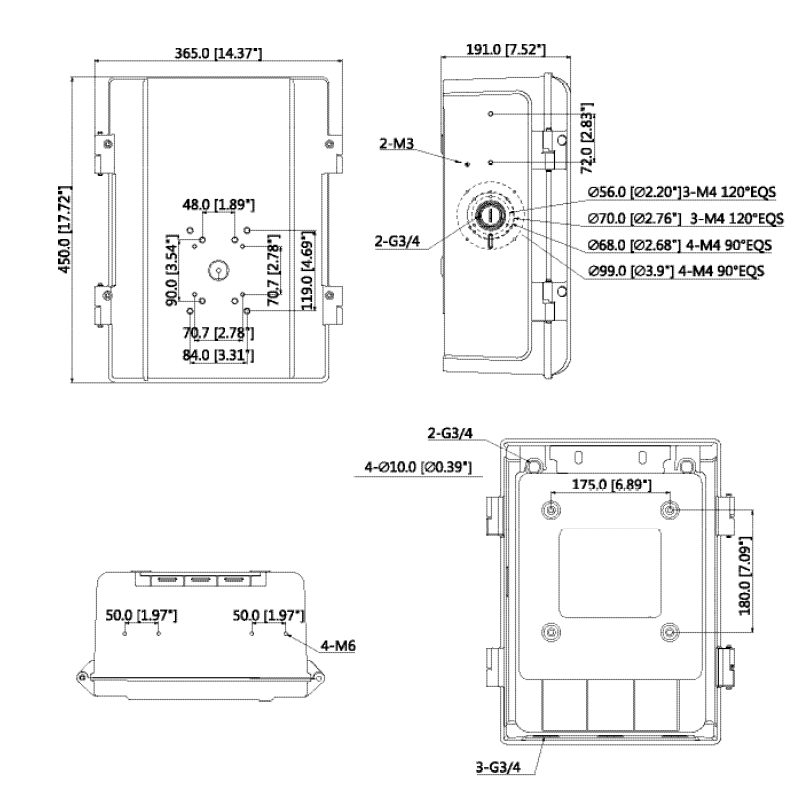

Refer diagram
General
Materials
Aluminium
Weather Resistance
IP66 rated
Operating Conditions
-40° ~ 60°C / 90% RH (max)
Dimensions
450 x 365 x 191mm
Weight
9.00kg
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
248 mm
Height
297 mm
Depth
105 mm
Weight
2.00 kg
