Adapter/Junction Box for PTZ Dome Cameras

Brand logo
SKU VSBKTA120

Adapter/Junction Box for PTZ Dome Cameras

SKU VSBKTA120

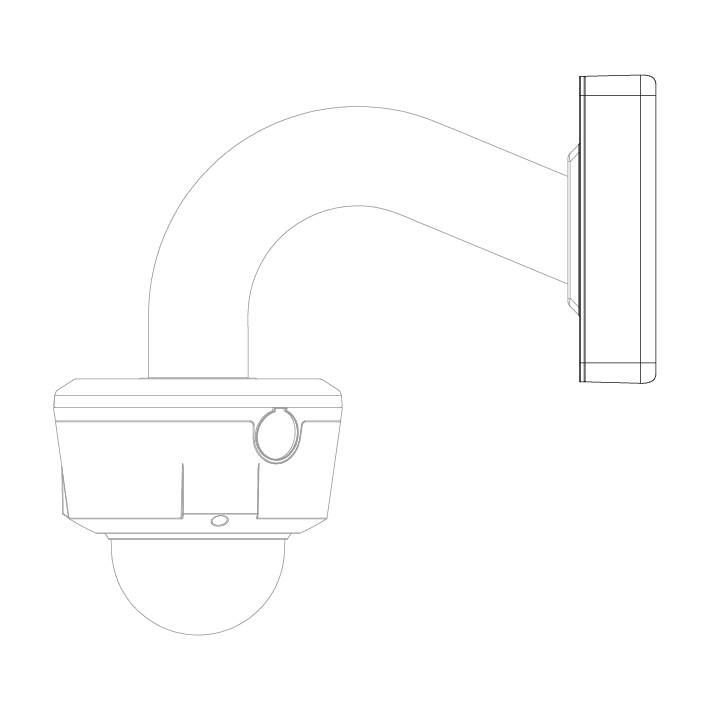

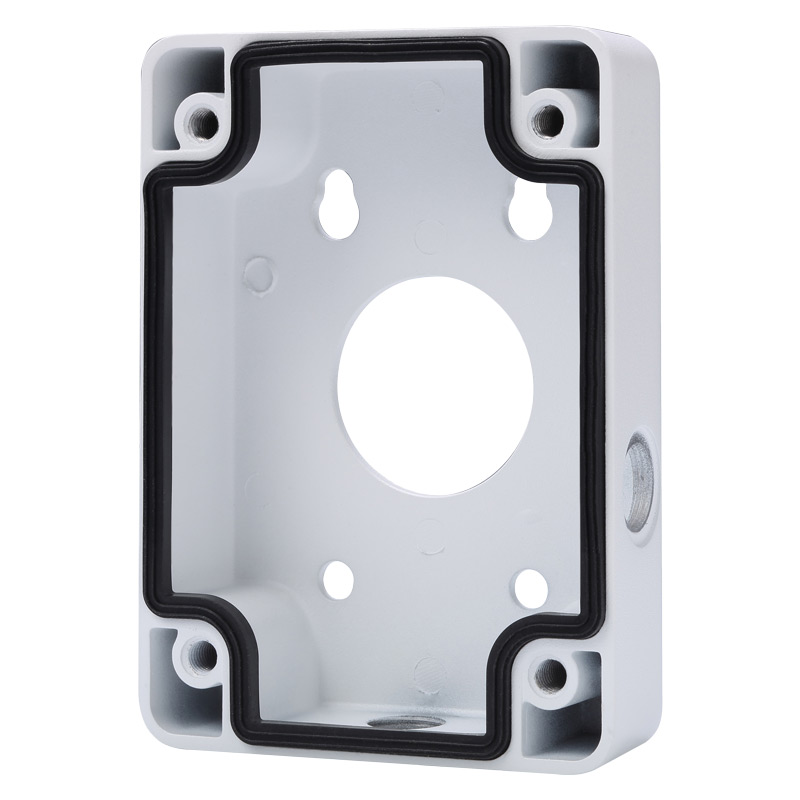

Aluminium adapter/junction box used as a spacer or as connector for corner & pole mounts. For PTZ surviellance cameras.

VIP Vision™ IP Surveillance Cameras
VIP Vision PTZ cameras only. Excludes VSIP2MPPTZ and VSIP2MPPTZC.

Securview Victory Series™
PTZ cameras only.

Links and Downloads

VSBKTA120 Product Brochure (PDF) 0.30 MB
Accessory Compatibility Guide 2023 (PDF) 1.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Connection
Bracket Type
Junction Box
Load Bearing Capacity
7.00kg
Pipe Thread
M20 (G1/2”)
General
Materials
Aluminium
Weather Resistance
Yes
Operating Conditions
-40° ~ 60°C / 90% RH (max)

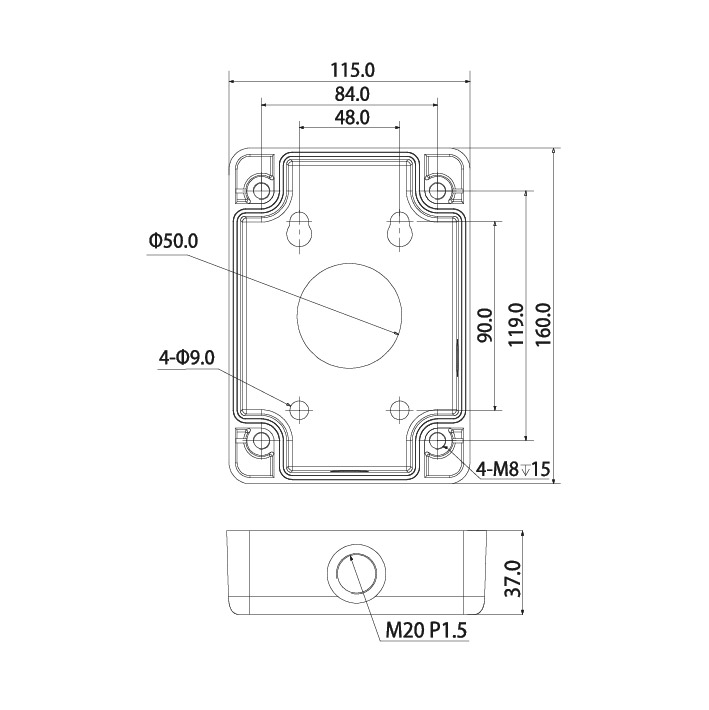

Dimensions
115 x 160 x 37mm
Weight
0.50kg
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
145 mm
Height
63 mm
Depth
148 mm
Weight
0.66 kg
