Adapter/Junction Box (Silver)

SKU VSBKTA120-SG

Adapter/Junction Box (Silver)

SKU VSBKTA120-SG

Compatible with VSIPPA-8BIR-I.

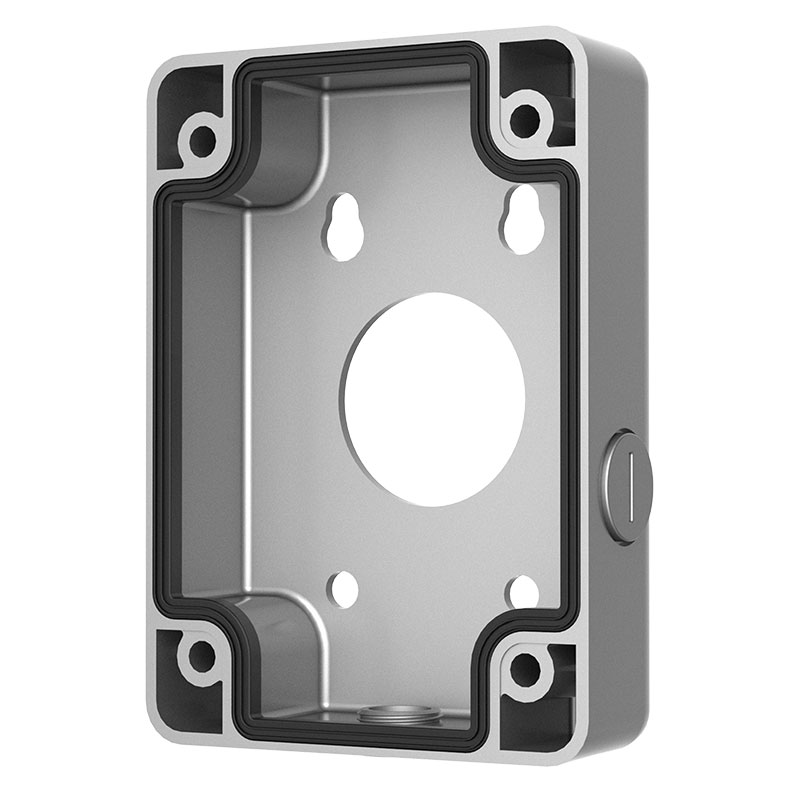

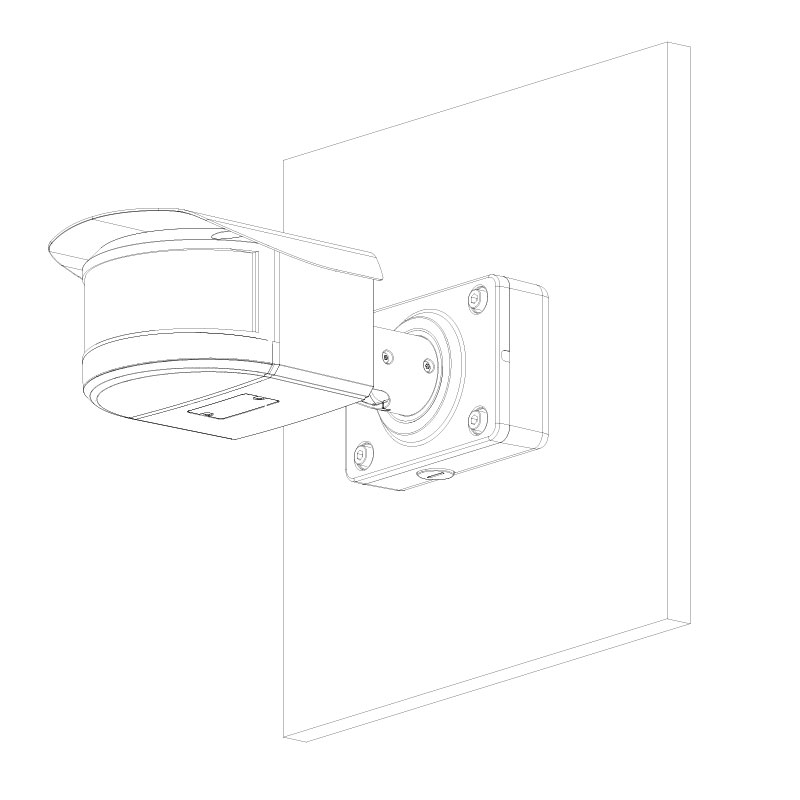

Aluminium adapter/junction box used as a spacer or as connector for corner & pole mounts.

Links and Downloads

CE/ RCM Certificate

RoHS Certificate

Specifications

Connection

Bracket Type

Junction Box

Load Bearing Capacity

7.00kg

Pipe Thread

M20 (G1/2”)

General

Materials

Aluminium

Weather Resistance

Yes

Operating Conditions

-40° ~ 60°C / 90% RH (max)

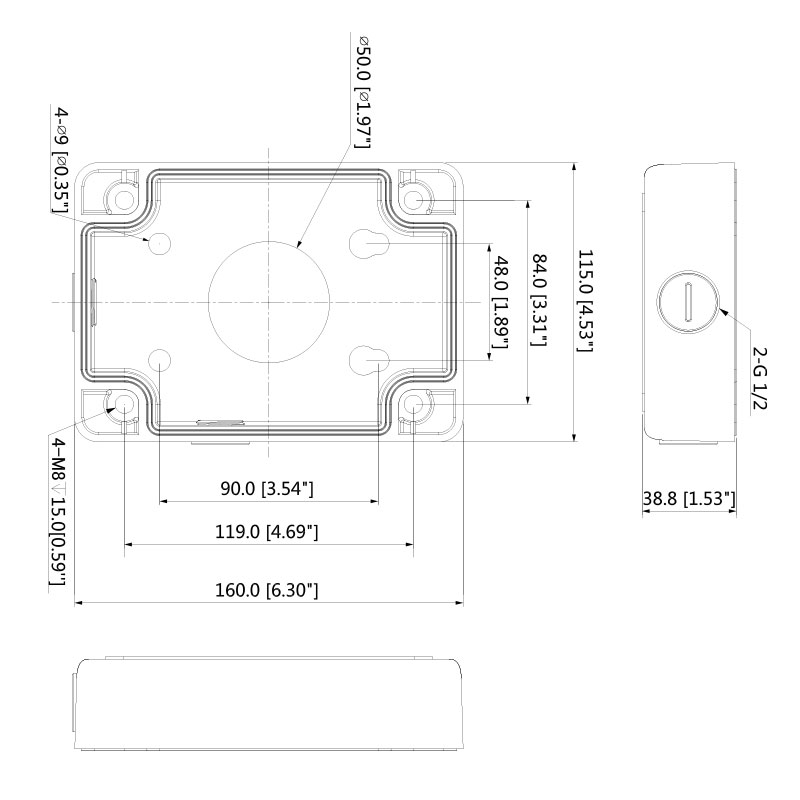

Dimensions

115 x 160 x 38mm

Weight

0.53kg

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

145 mm

Height

63 mm

Depth

148 mm

Weight

0.66 kg
