4 Channel Passive HDCVI/Analogue Balun

Brand logo
SKU VSBALHDP4
Brand logo

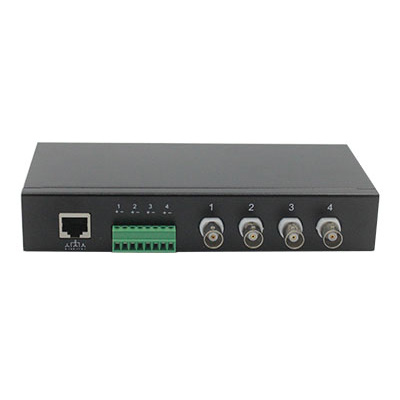

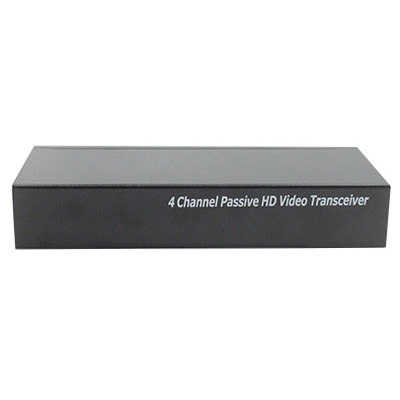

4 Channel Passive HDCVI/Analogue Balun

SKU VSBALHDP4

The VSBALHDP4 4 channel video balun minimises the cost of CCTV installations allowing network cabling (CAT5/5e/6) to be used instead of coax cable in HDCVI installations.

Product features:
• Compatible with up to 4 HDCVI, HDTVI and AHD signals
• Transmit HD video up to 400m (passive to passive)
• Transmit HD video up to 600m (passive to active)
• Compatible with CAT5/CAT5e/CAT6 UTP cable
• RJ45/green terminal block connects UTP cable
• Compact design with surge protection
• Passive - no power supply required

Includes:
1 x 4 Channel Passive HDCVI/Analogue Balun
1 x Installation manual
2 x Rack-mount ears
8 x Rack-mount screws
4 x Rubber base pads

Suggested Products

Suggested product image
Passive HDCVI/Analogue Balun Pair
VSBALHDP
Suggested product image
8 Channel Passive HDCVI/Analogue Balun
VSBALHDP8

Links and Downloads

Securview VSBALHDP Series Datasheet (PDF) 0.30 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Channels
4
UTP Cable Connector
8 pin green terminal block / RJ-45
UTP Cable Connector Protection
2KV (different mode) / 4KV (common mode)
Video Connector
BNC-F
Video Connector Protection
2KV (common mode)
Interference Rejection
>60dB
Signal & Transmission
Signal Compatibility
HDCVI / HDTVI / AHD
Signal Transmission Band
0-65MHz
Transmission Distance (AHD)
720p: 350m / 1080p: 200m
Transmission Distance (HDCVI)
720p: 400m / 1080p: 250m / 4.0MP: 200m
Transmission Distance (HDTVI)
720p/1080p: 250m
Environment
Dimensions
180 x 100 x 45mm
Weight
0.4kg
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
230 mm
Height
70 mm
Depth
125 mm
Weight
0.50 kg
