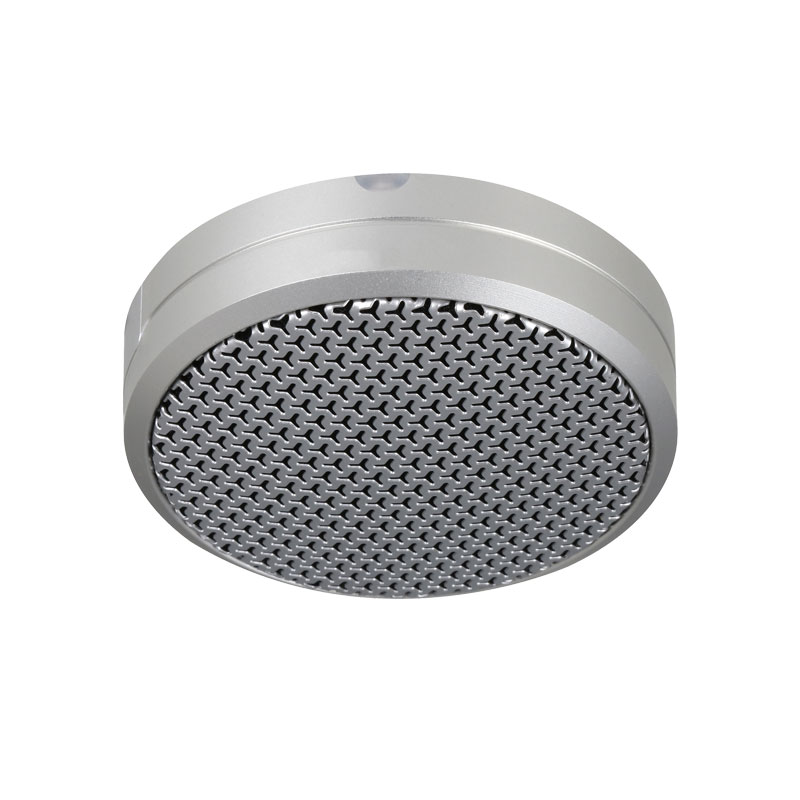

High Fidelity Surveillance Microphone (Aluminium)

Brand logo
SKU VSAMICB2
Brand logo

High Fidelity Surveillance Microphone (Aluminium)

SKU VSAMICB2

Add high quality audio to any surveillance installation with the VSAMICB2. This microphone enables audio recording and features adjustable sensitivity, DNR and auto gain control.

Product features:
• 85dB signal noise reduction for low background noise
• 1 ~ 150m² effective range
• Adjustable sensitivity; audio gain control
• Dynamic range up to 106dB (1KHz at Max dB SPL)
• Stylish aluminium casing
• Ideal for ceiling & wall mounting; for indoor use only

* Legality of voice recording in Australia varies by state and may require knowledge & consent from all parties. Refer to individual state laws for details.

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Audio
Microphone
MEMS Silicon Microphone
Operation Area
1 ~ 150m²
Sensitivity
-38dB
Bandwidth Frequency
20Hz ~ 20kHz
Direction
Omni-directional
Signal-to-Noise Ratio
85dB (1m 40dB sound source SPL) / 52dB (10m 45dB sound source SPL) / 1kHz at 1Pa
Dynamic Range
106dB (1KHz at Max dB SPL)
Max. Sound Pressure
120dB SPL (1KHz, THD 1%)
Output Impedance
25Ω (unbalanced)
Output Signal Amplitude
2.5Vpp/-25dB
General
Power Supply
12VDC (9 ~ 18V)
Power Consumption
0.72W (60mA)
Operation Environment
-25°C~+60°C
Ingress Protection
Indoor
Material
Aluminum alloy

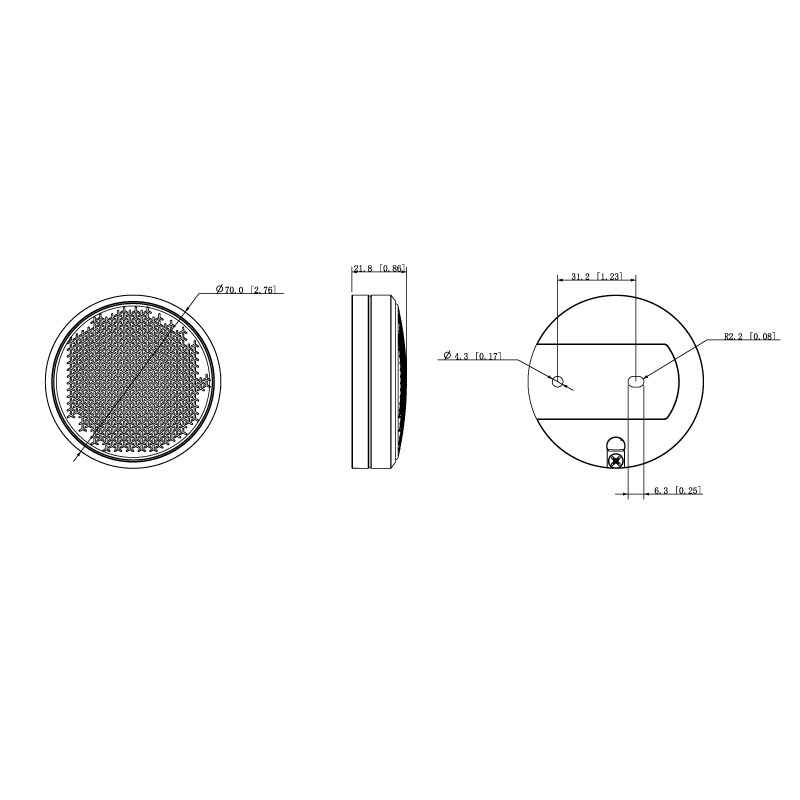

Dimensions
Φ70 x 21mm
Weight
0.11kg
Interface Ports
1 x RCA female ports, 1 x DC power port
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
70 mm
Depth
110 mm
Weight
0.30 kg
