High Fidelity Surveillance Microphone (Plastic)

SKU VSAMICA2

High Fidelity Surveillance Microphone (Plastic)

SKU VSAMICA2

Add high quality audio to any surveillance installation with the VSAMICA2. This microphone enables audio recording and features adjustable sensitivity, DNR and auto gain control.

Product features:
• 85dB signal noise reduction for low background noise
• 1 ~ 150m² effective range
• Adjustable sensitivity; audio gain control
• Dynamic range up to 106dB (1KHz at Max dB SPL)
• Stylish plastic casing

* Legality of voice recording in Australia varies by state and may require knowledge & consent from all parties. Refer to individual state laws for details.

Suggested Products

High Fidelity Surveillance Microphone (Aluminium)
VSAMICB

Links and Downloads

CE/ RCM Certificate

RoHS Certificate

Specifications

Audio

Microphone

MEMS Silicon Microphone

Operation Area

1 ~ 150m²

Sensitivity

-38dB

Bandwidth Frequency

20Hz ~ 20kHz

Direction

Omni-directional

Signal-to-Noise Ratio

85dB (1m 40dB sound source SPL) / 52dB (10m 40dB sound source SPL) / 1kHz at 1Pa

Dynamic Range

106dB (1KHz at Max dB SPL)

Max. Sound Pressure

120dB SPL (1KHz, THD 1%)

Output Impedance

N/A

Output Signal Amplitude

2.5Vpp/-25dB

General

Power Supply

12VDC (9 ~ 18V)

Power Consumption

60mA

Operation Environment

-20°C~+60°C

Ingress Protection

N/A

Material

PC+ABS Plastic

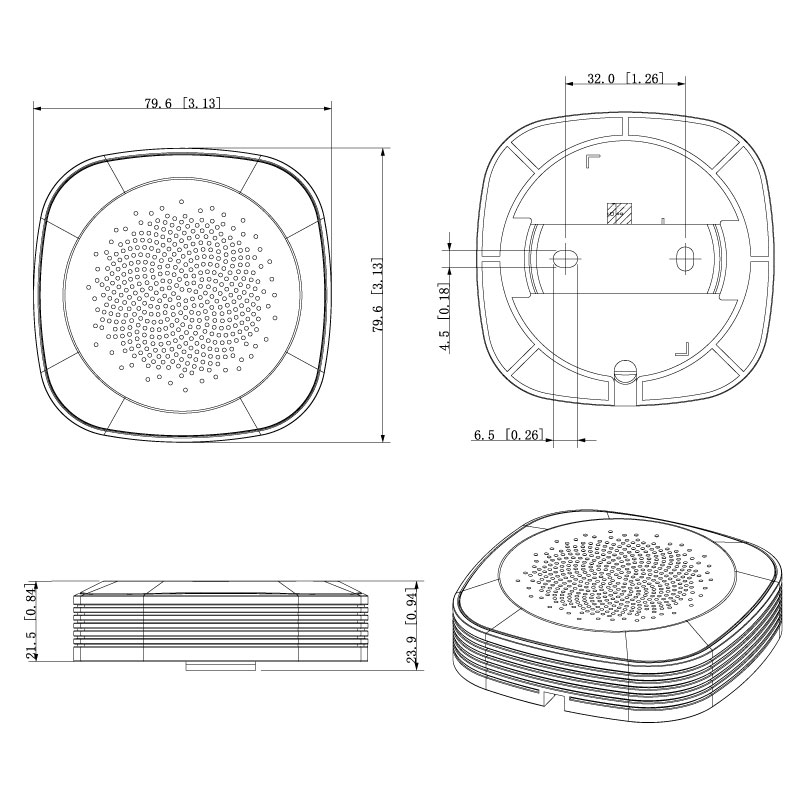

Dimensions

Φ79.6 x 21.5mm

Weight

0.06kg

Interface Ports

1 x RCA female ports, 1 x DC power port

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

31 mm

Height

117 mm

Depth

15 mm

Weight

0.11 kg
