High Fidelity Surveillance Microphone (Plastic)

Brand logo
SKU VSAMICA
Brand logo

High Fidelity Surveillance Microphone (Plastic)

SKU VSAMICA

Available by special order only. Please contact us for lead times.

Add high quality audio to any surveillance installation with the VSAMICA. This microphone enables audio recording and features adjustable sensitivity, DNR and auto gain control.

Product features:
• 80dB signal noise reduction for low background noise
• 10 ~ 100m² effective range
• Adjustable sensitivity; audio gain control
• Dynamic range up to 100dB (1KHz at Max dB SPL)
• Cascading support for multiple audio outputs
• Stylish plastic casing
• Ideal for ceiling & wall mounting; for indoor use only

* Legality of voice recording in Australia varies by state and may require knowledge & consent from all parties. Refer to individual state laws for details.

Suggested Products

Suggested product image

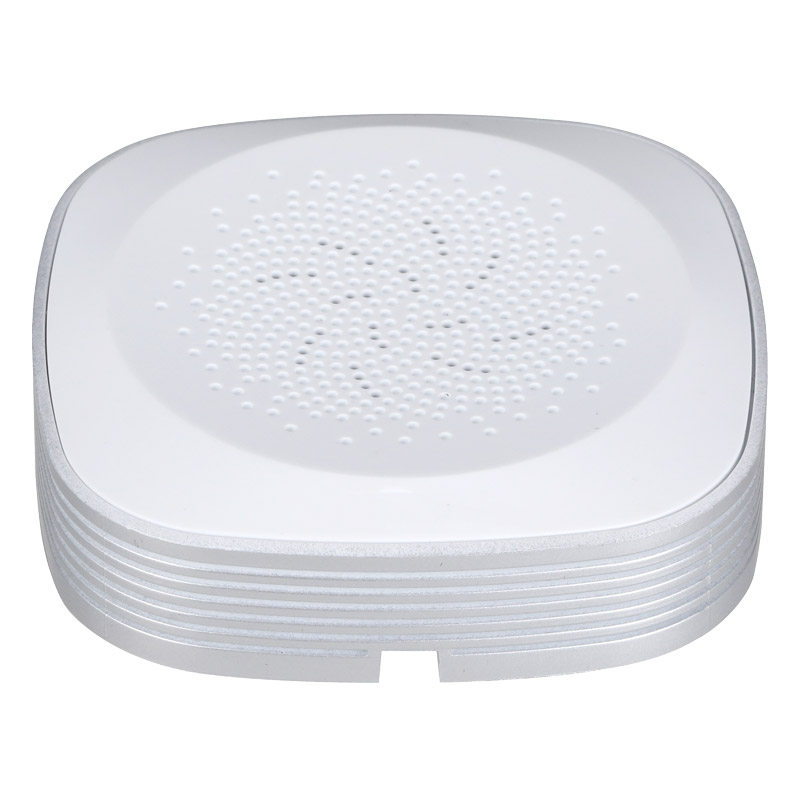

High Fidelity Surveillance Microphone (Aluminium)
VSAMICB

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Audio
Microphone
Electret Condenser Microphone
Operation Area
10 ~ 100m²
Sensitivity
-30dB
Bandwidth Frequency
20Hz ~ 20kHz
Direction
Omni-directional
Signal-to-Noise Ratio
80dB (1m 40dB sound source SPL) / 50dB (10m 45dB sound source SPL) / 1kHz at 1Pa
Dynamic Range
104dB (1KHz at Max dB SPL)
Max. Sound Pressure
120dB SPL (1KHz, THD 1%)
Output Impedance
600Ω (unbalanced)
Output Signal Amplitude
2.5Vpp/-25dB
General
Power Supply
12VDC (9 ~ 18V)
Power Consumption
50mA
Operation Environment
-25°C~+70°C
Ingress Protection
N/A
Material
PC+ABS Plastic

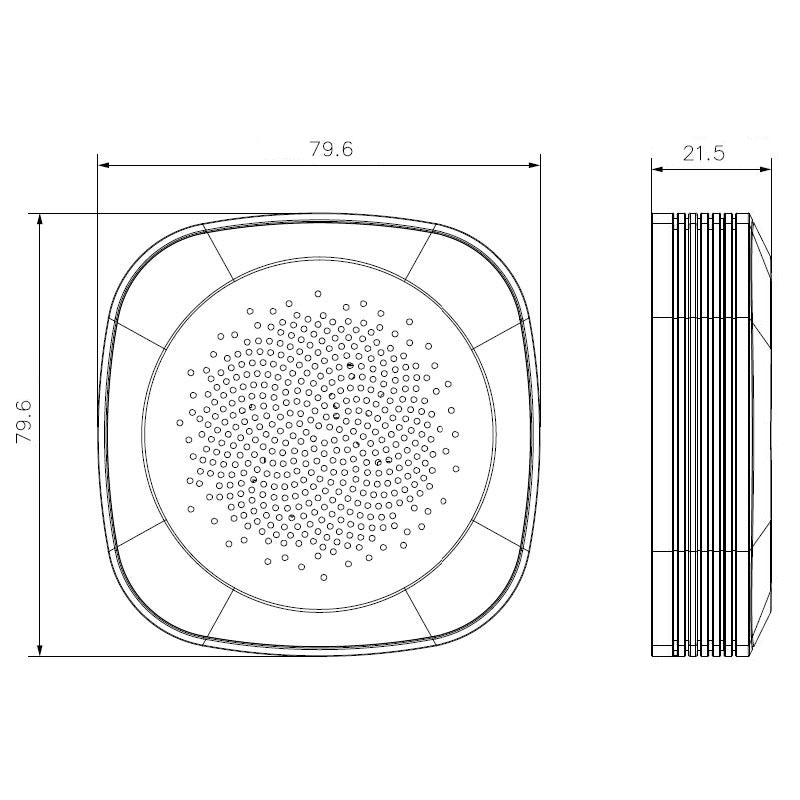

Dimensions
Φ80 x 22mm
Weight
0.06kg
Interface Ports
2 x RCA female ports, 1 x DC power port
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
125 mm
Height
60 mm
Depth
95 mm
Weight
0.11 kg
