8-port Unmanaged Network Switch

Brand logo
SKU VS8PORTSWITCH

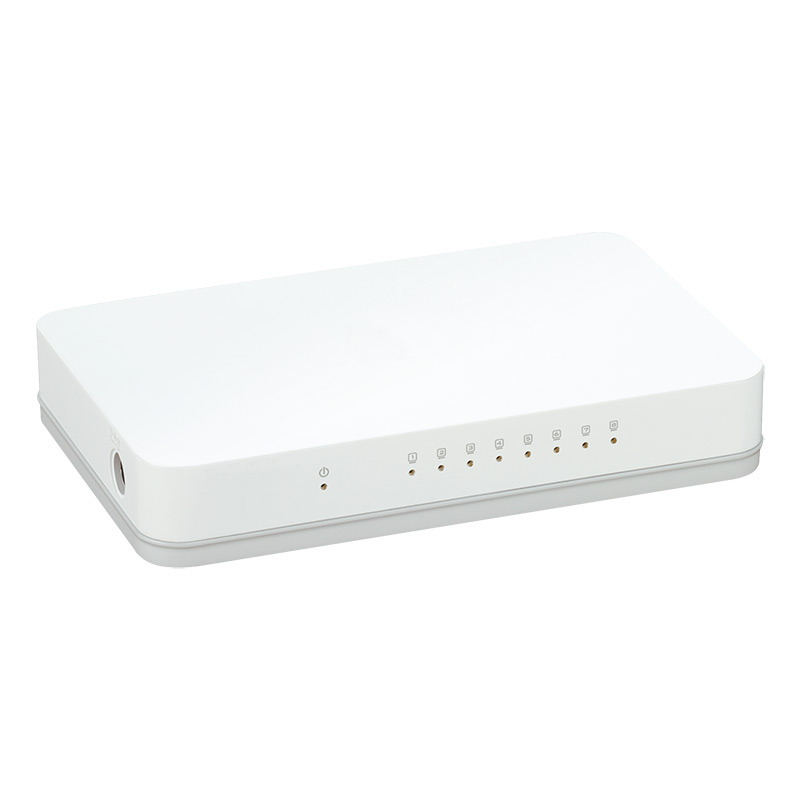

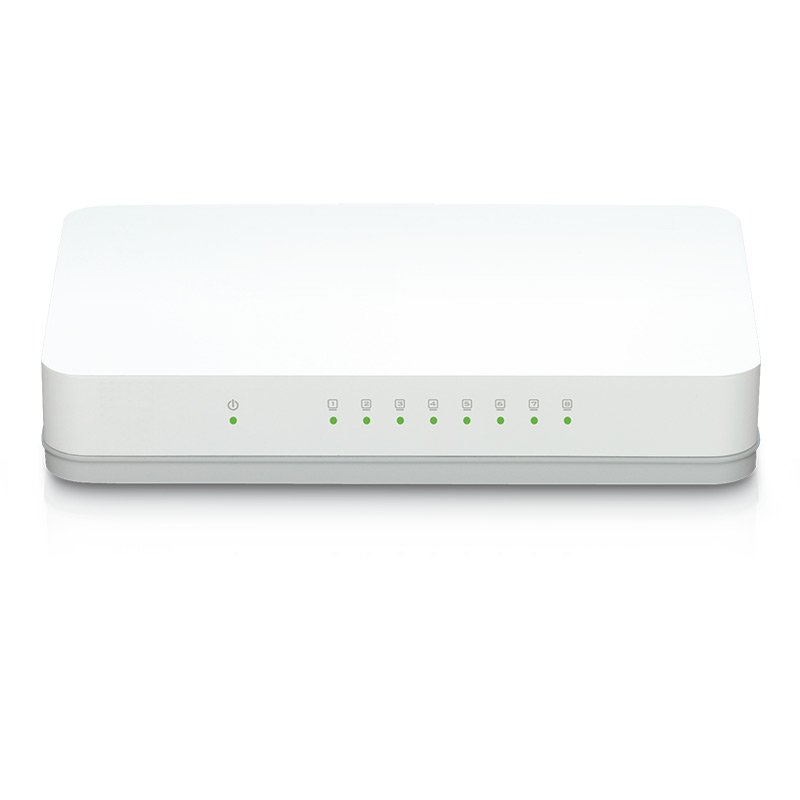

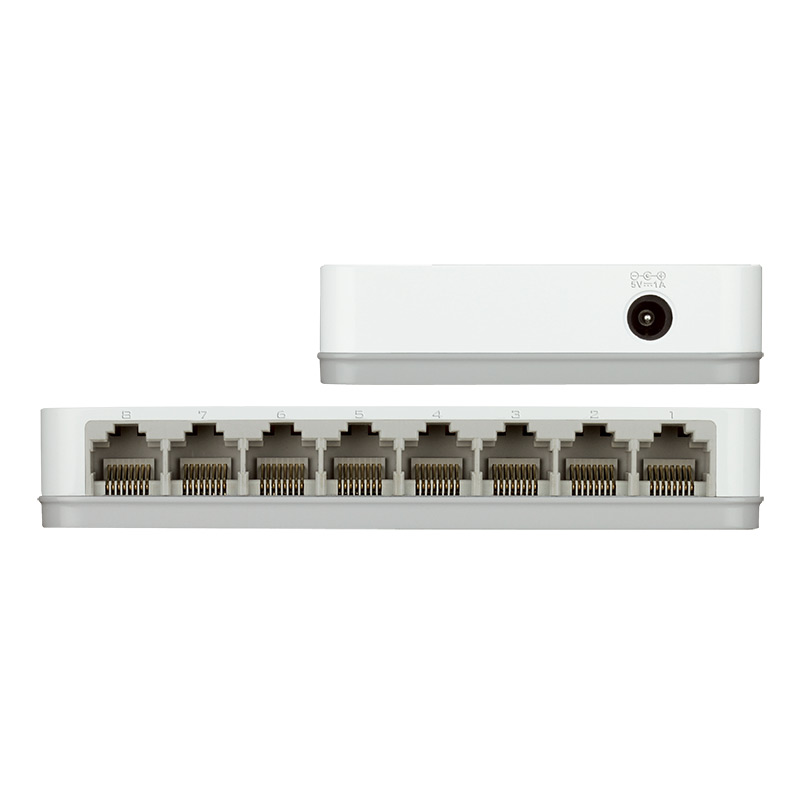

8-port Unmanaged Network Switch

SKU VS8PORTSWITCH

The VS8PORTSWITCH is a based gigabit Ethernet switch available in 8 ports.

• Unmanaged Gigabit Ethernet switch (no PoE)
• Eight Gigabit Ethernet LAN ports for data transfer rates up to 100Mbps
• Cable Diagnostics Function notifies users of cable conditions via LEDs
• 802.3 Energy-Efficient Ethernet (EEE) allows for less power consumption during low data activity
• Reduces power to a port when no link is detected
• Adjust power to a port by detecting the length of the connected Ethernet cable

Suggested Products

Suggested product image
8-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW8

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
8 ports
Speed
Gigabit 10/100/1000
Device Ports
8 x 10/100/1000 Base-T
Uplink Ports
N/A
Switching Capacity
16Gbps
Packet Forwarding Rate
14.9Mbps
Exchange Mode
N/A
Power over Ethernet
PoE
No
PoE Protocol
N/A
Switch Power Load
N/A
Management
Switch Management
Unmanaged
MAC Address Capacity
4K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
N/A
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
5VDC
Lightning Protection
N/A
Mounting Options
Desktop
Operating Environment
0° ~ 40°C / 10 ~ 90% RH (max.)
Weight
0.13kg
Dimensions
130 x 79 x 22mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
100 mm
Height
160 mm
Depth
110 mm
Weight
0.29 kg
