8 port 10/100 Power over Ethernet Unmanaged Switch

Brand logo
SKU VS8PORTPOEV3
Brand logo

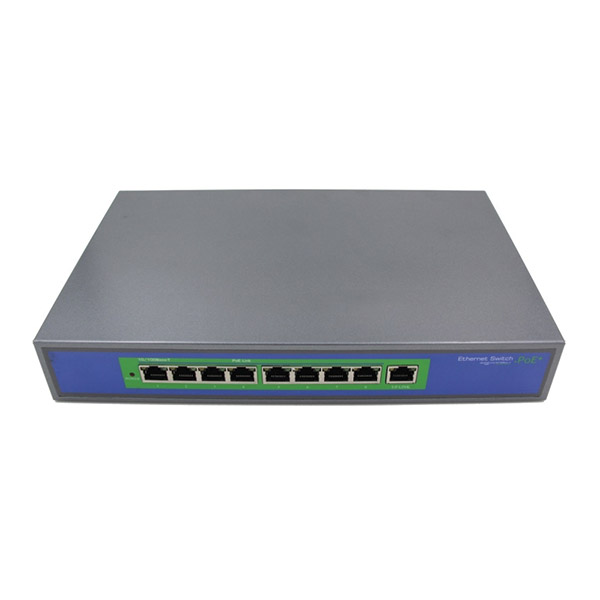

8 port 10/100 Power over Ethernet Unmanaged Switch

SKU VS8PORTPOEV3

Stock may be limited. Please contact us for availability or for an alternative item.

The VS8PORTPOEV3 Power over Ethernet switch is a 10/100Mbps PoE switch with 8 port configuration options. The PoE switch features 8 x 10/100M PoE ethernet ports, making it perfect for quick installation of PoE devices such as IP cameras, wireless access points, and VoIP devices by transmitting both power and data through the same cable. It also includes a separate 10/100M uplink port for network connectivity.

The switch supplies up to 30W of power per port. It can automatically detect your PoE devices and their power class, minimising the possibility of damaging your equipment with the wrong power supply. The VS8PORTPOEV3 switch can support PoE devices installed up to 100m (CAT5 cable). This unmanaged, plug & play PoE switch makes network installations quick and easy, with no need for advanced configuration or setup.

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Backplane Bandwith
1.8Gbps
Dimensions
285 x 180 x 45mm
Housing Construction
Iron
Input Voltage
100-240VAC
LED Indicator
Power: 1 red light indicates switch is powered on / PoE: 9 yellow lights indicates PoE is powered on / Ethernet: 9 green lights indicates the ethernet links are active
MAC Address List
2K
Mean Time Between Failures
> 30,000 hours
Network Ports
1~8 PoE ethernet ports: 10/100Mbps / Uplink ethernet Port: 10/100Mbps
Network Protocol Standard
IEEE802.3i: 10BASE-T / IEEE802.3u: 100BASE-TX / IEEE802.3x: Flow Control / IEEE802.3af: Power over Ethernet / IEEE802.3at: Power over Ethernet
Operating Environment
0° ~ 55°C
Packet Forwarding Rate
0.1488Mbps
PoE Power Supply Type
End-Span (1/2+;3/6_)
PoE Standard
IEEE802.3af/at
Power Consumption
150W
Transmission Distance
100m
Transmission Medium
CAT5 / CAT5E / CAT6 standard network cable
Weight
1.58kg
Warranty (Years)
1
