1100VA Online Rackmount/Tower UPS - 900W

Brand logo
SKU UPS1100VA-ORM
Brand logo

1100VA Online Rackmount/Tower UPS - 900W

SKU UPS1100VA-ORM

The UPS1100VA-ORM is an online uninterruptible power supply with a max capacity of 1100VA / 900W and features 6 x 10A IEC 320-C13 power inputs. At only 2U height and 333mm depth, it is an incredibly compact solution UPS solution that can fit into small racks only 450mm deep.

The UPS1100VA-ORM is an online UPS, meaning your devices are connected to the UPS backup power at all times. Should main power be lost or compromised, connected devices are switched to battery backup power with zero-second transfer delay, ensuring no loss or corruption of data. This UPS also features overload, overcharge and ESD protection.

Product features:
• Ideal solution for protecting small servers, networking devices, surveillance and peripherals.
• Assures service continuity to critical security systems and applications.

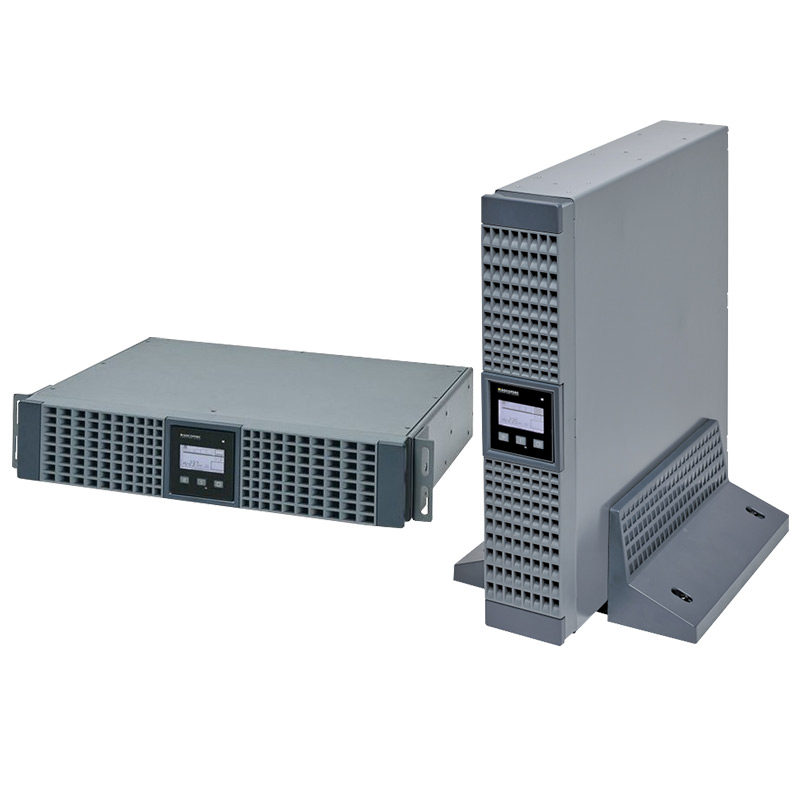

• The space and time-saving tower/rack conversion option means it can be installed easily either in tower mode or inside standard 19” rack cabinets depending on the user’s needs.
• No configuration needed on first startup.
• Compact footprint (2U/89 mm) for installation in rack cabinets.
• USB port and HID protocol as standard for direct interfacing with Windows systems®, without the need for additional specialist software. Protection for your data line
• Load segmentation function to prioritize loads and manage critical situations.
• EPO (Emergency Power Off) emergency stop.
• RS232 advanced connections for the management of the power supply and local/ remote shutdown of applications.

Links and Downloads

UPS1100VA-ORM Product Datasheet (PDF) 4.90 MB
UPS1100VA-ORM Product Manual (PDF) 3.90 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Battery
Battery Type
Sealed lead-acid maintenance free - expected life 3/5 years
Capacity
1100VA / 900W
Frequency Range (Battery Mode)
50Hz / 60Hz
Est. Backup Time
~32min@180W
Input
Rated input Voltage
230VAC
Rated input Frequency
50Hz / 60Hz ±10%
Output
AC Voltage Regulation
Yes
Rated output Voltage
230VAC
Rated output Frequency
50Hz / 60Hz ±2%
Waveform (Batt. Mode)
Pure Sine Wave
Protection
Overload, Overcharge, ESD
Output Sockets
6 (10A) x IEC 320-C13
Alarm Output
Yes
Communication
Interface
LCD Screen (Load level / Alarm / Battery fault / Overload / Battery capacity / Battery mode / AV/Regulation active / Configuration / UPS Test)
Local Communication Software
RS232 (MODBUS protocol), COMM slot, EPO input (RJ11 port), USB port and HID protocol as standard for direct interfacing with Windows systems®
General
UPS Type
Online
Dimensions
440 x 333 x 89 mm
Weight
13kg
Other
Noise level
<45dB
Operating Environment
0 ~ 40°C / 5% ~ 95%RH
Power Factor
0.9
Recharge Time
3 hours to 90% capacity (Average)
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
89 mm
Height
440 mm
Depth
333 mm
Weight
13.00 kg
