1500VA Line Interactive UPS - 900W

Brand logo
SKU UPS-A1500-L
Brand logo

1500VA Line Interactive UPS - 900W

SKU UPS-A1500-L

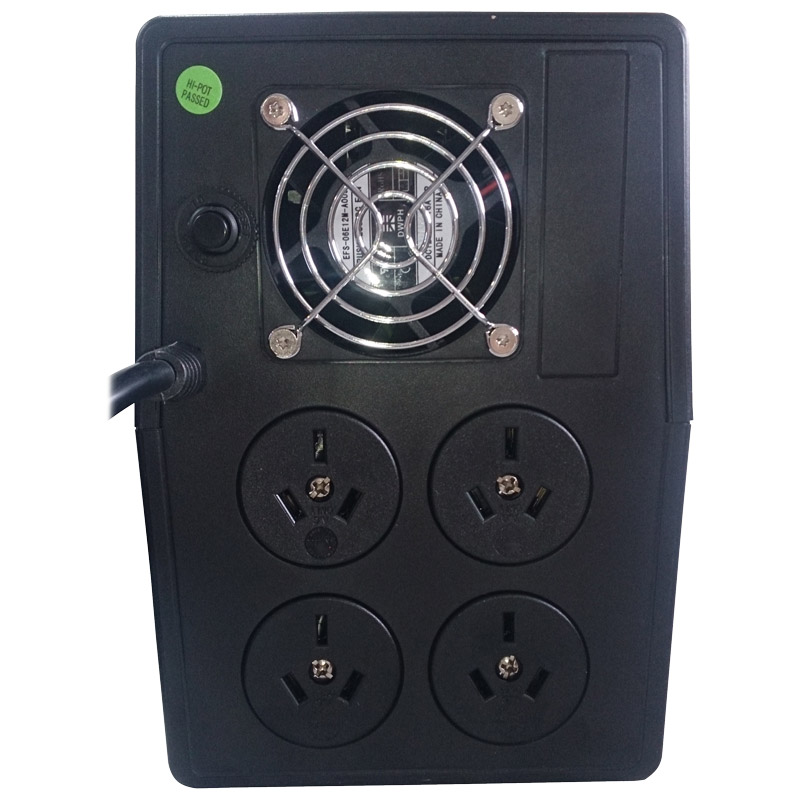

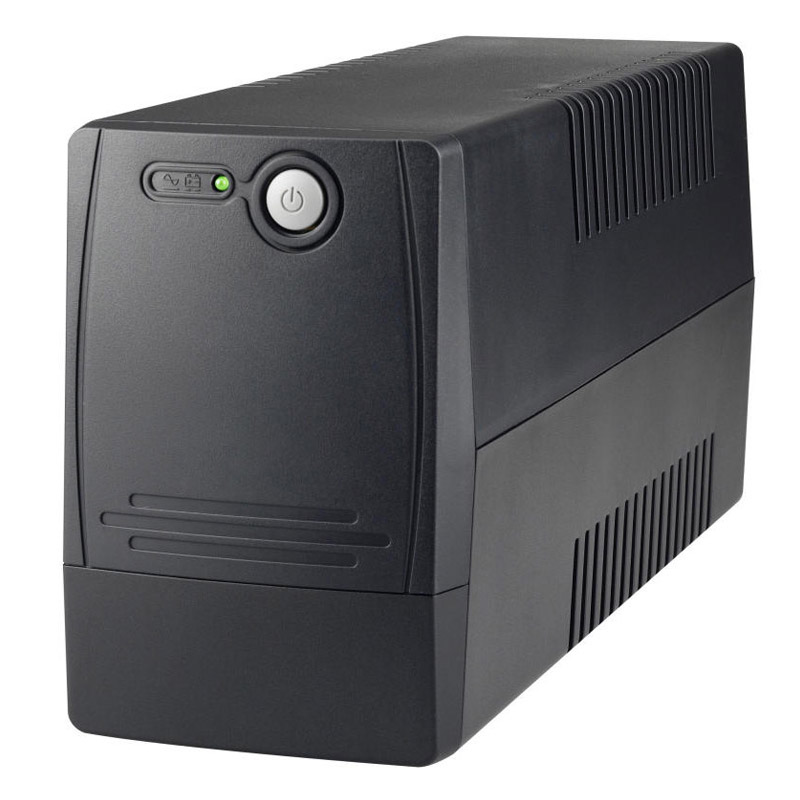

The UPS-A1500-L is a line interactive uninterruptible power supply with a max capacity of 1500VA / 900W. This UPS will protect your connected electronics from overloads, overcharges and ESD, while also providing a short-term battery backup for your security system in the event of a power outage.

The UPS-A1500-L can provide backup for four Australian 3-pin devices.

Features:
• Wide input and output voltage range
• ECO mode for energy efficiency
• Protect up to 4 Australian 3-pin devices
• Prevent hardware damage from sudden power spikes
• Overload, overcharge and ESD protection
• Alarm alerts for battery mode, faults and low power

Suggested Products

Suggested product image
600VA Line Interactive UPS - 360W
UPS-A600-L
Suggested product image
1000VA Smart Online UPS - 900W
UPS-B1000-O

Links and Downloads

Securview UPS Series Datasheet (PDF) 0.76 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

AC Voltage Regulation
±10%
Alarm
Yes
Battery Type
2 X 12v/7Ah
Capacity
1500VA / 900W
Charging Voltage
27.4V ±1%
Dimensions
320 x 130 x 182mm
Frequency Range
50Hz / 60Hz
Frequency Range (Battery Mode)
50Hz / 60Hz ±1Hz
Input Voltage
110VAC ~ 120VAC / 220VAC ~ 240VAC
Noise Level
<40dB
Operating Environment
0 ~ 40°C / 90%RH
Output Sockets
4 x Australian 3-pin plugs
Output Voltage
110 / 120 / 220 / 230 / 240VAC
Power Factor
0.6
Protection
Overload, Overcharge, ESD
Recharge Time
4 hours to 90% capacity (Average)
Status Display
N/A
Transfer Time
2-6ms
UPS Type
Line Interactive
Voltage Range
81 ~ 145VAC / 140 ~ 290VAC
Waveform (Batt. Mode)
Simulated Sinewave
Weight
10.4kg
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
192 mm
Height
275 mm
Depth
390 mm
Weight
10.40 kg
