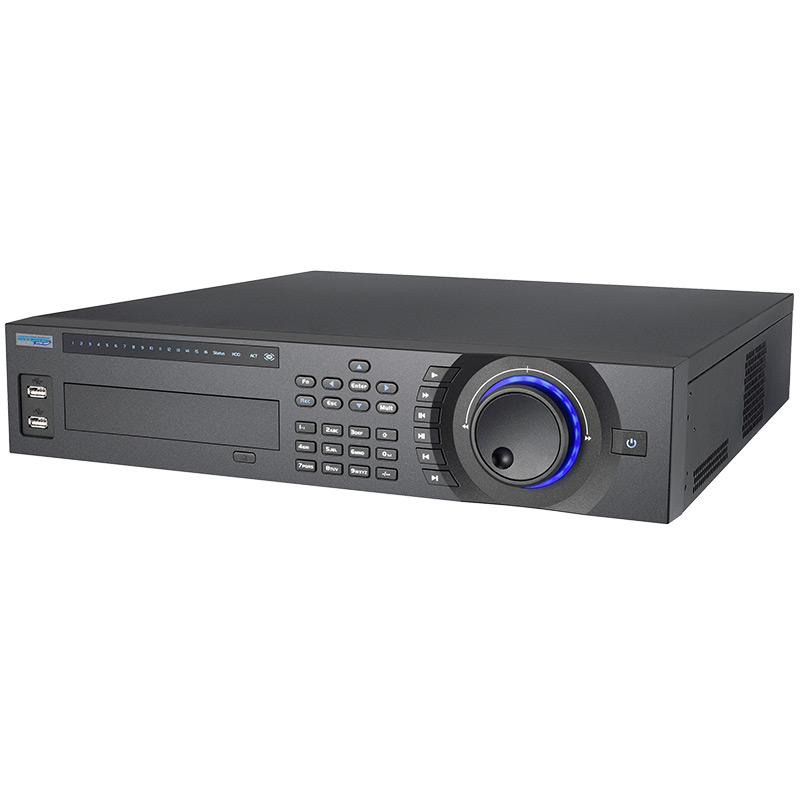

Ultimate Series 16 Channel 1080p HDCVI Digital Video Recorder

Brand logo
SKU TVR16
Brand logo

Ultimate Series 16 Channel 1080p HDCVI Digital Video Recorder

SKU TVR16

Available by special order only. Please contact us for lead times.

The TVR16 is a 16 channel HDCVI DVR capable of high resolution video over coaxial cable, as well as analogue and IP recording. Compared to other DVRs, it has a large HDD capacity and higher framerate. It is perfect for upgrading existing analogue systems, boosting image resolution up to 4x that of typical D1 resolution analogue surveillance systems.

Product features:
• Records 2.0MP (1920 x 1080) resolution up to 25fps
• Support for HDCVI, Analogue and IP video inputs
• Up to 700m video transmission distance over coaxial cable
• 8 x SATA ports up to 10TB, max. 80TB HDD capacity
• Configure iOS/Android remote view in seconds via QR code
• HDMI, VGA and TV (BNC) simultaneous video output
• Backup via external USB device, local network or DVD-RW

Suggested Products

Suggested product image
24" LG LCD Monitor
LCDLG24W
Suggested product image
6RU 600mm Deep Wall Mount Data Cabinet
RACKMOUNTCAB6-600W
Suggested product image
1500VA Line-Interactive Tower UPS - 900W
UPS1500VA
Suggested product image
HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
VSCVIDECODER

Links and Downloads

Securview TVR16 Datasheet (PDF) 0.70 MB
Smart PSS V2.0 (Mac) 90.05 MB
CVR_Firmware_TypeA_20160322 23.25 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded processor
Operating System
Embedded Linux OS
Video Input
16 channel BNC
Audio In/Out
16 channel input / 1 channel output
Two-way Talk
1 channel input/output BNC
Internal HDD
8 x SATA ports up to 10TB, max. 80TB HDD capacity
USB Interface
4 x USB2.0 ports (2 Rear)
Auxiliary Inputs
1 x RS232 port (PC comm. & keyboard) / 1 x RS485 (for PTZ)
Power Supply
100 ~ 240VAC 50/60 Hz
Power Consumption
40W (without HDD)
Operating Environment
-10 ~ +55°C / 10 ~ 90%RH / 86~106kpa
Dimensions
440 x 460 x 89 (mm) / 2U Rackmount
Rackmountable
Rackmount Unit
Weight
6.5kg (without HDD)
Cross Compatibility
Supported Video Inputs
Coax Input Support
IP Input Support
IP Input Max. Resolution
IP Input Max. Bandwidth
Display
Video Output
2 HDMI / 1 VGA / 1 TV (BNC)
Display Resolution
1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1 / 4 / 8 / 9 / 16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection
Recording
Maximum Resolution
1080p (1920 x 1080) / 720p (1280 x 720)
Frame Rate (Main)
1080p (1~12fps), 960H (1~25fps)
Frame Rate (Sub)
D1 (1~25fps)
Frame Rate (Third)
N/A
Video Compression
H.264 / G.711
Bit Rate
48~8192Kb/s
Record Modes
Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop
Record Interval
1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Features
Alarm Input / Output
16 channel input / 6 relay output
Trigger Events
Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; internal buzzer; and screen tip overlay
Video Detection
Motion detection (zones: 396 [22 × 18]) / Video loss / Camera blank
Playback Sync
1 / 4 / 8 / 16
Search Modes
Time/Date; Alarm; Motion detection; Exact search (to the second); Smart Search
Intelligent Functions
Backup Modes
USB Device / eSATA Devic e/ Internal SATA burner (optional) / Network
Network
Ethernet
2 RJ-45 ports (10/100M/1000M)
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices, Windows Phone
Other
Camera Configurations
Coaxial: 16 channels up to 960H/25fps (analogue) 1080p/12fps (HDCVI) / IP: 2 channels up to 1080p/12fps (substitutes coaxial)
External HDD
1 eSATA port, up to 16TB
Interoperability
ONVIF 2.4.1, CGI Conformant
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
570 mm
Height
220 mm
Depth
570 mm
Weight
10.20 kg
