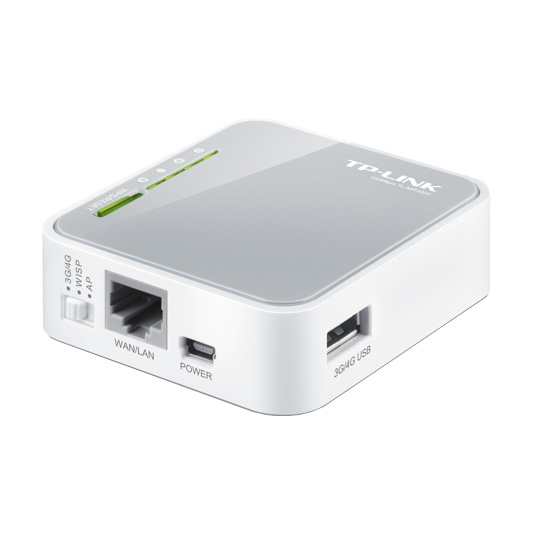

TP-Link Portable 3G/4G Wireless N Router

Brand logo
SKU TP-TL-MR3020

TP-Link Portable 3G/4G Wireless N Router

SKU TP-TL-MR3020

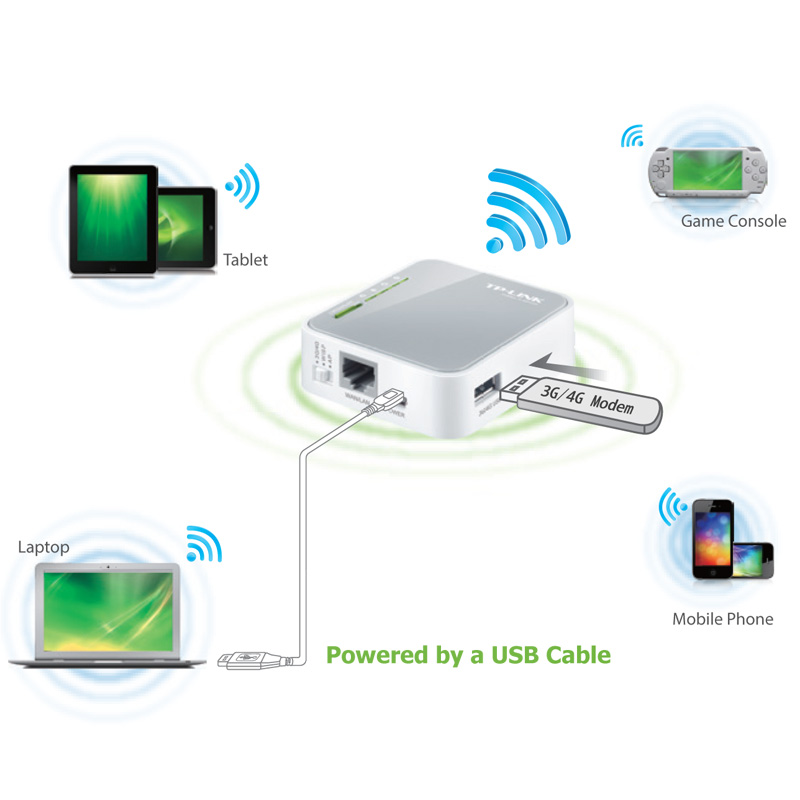

TP-TL-MR3020 is the ideal travel partner for people on the go. The 3G Router Mode enables you to plug in a 3G USB modem and share it wirelessly. Its Travel Router Mode (AP Mode) allows you to conveniently setup an internet connection utilizing a hotel WAN cable. Meanwhile, you can also use the switch on the side of the router to choose between Travel Router Mode, 3G Router Mode and WISP Client Router Mode based on your different requirements.

• Share a 3G/4G* mobile connection, compatible with 120+ LTE/HSPA+/HSPA/UMTS/EVDO 3G/4G USB modems, tested in the field
• Travel-size design, small and light enough to take on the road, enables users to share a 3G/4G* mobile connection wherever 3G/4G* coverage is available
• Wireless speed is up to 150Mbps
• Three modes available: 3G/4G* Router, WISP Client Router and Travel Router Mode (AP Mode)
• With 3G/4G* and WAN failover back-up strategy, TP-TL-MR3020 can provide a sustained internet connection.

* If your existing device does not support 4G sharing, please upgrade it to the latest firmware manually.
* Find your firmware version: www.tp-link.com/en/article/?faqid=315

Links and Downloads

Specifications

Access Control
Parental Control, Host List, Access Schedule, Rule Management
Antenna Type
Internal Antenna
Button
Quick Setup Security Button, Reset Button, Mode Switch
DHCP
Server, DHCP Client List, Address Reservation
Dimensions ( W x D x H )
2.9 x 2.6 x 0.9 in. (74 x 67 x22 mm)
External Power Supply
5VDC/1.0A
Frequency
2.4-2.4835GHz
Interface
1 10/100Mbps WAN/LAN Port, USB 2.0 Port for 3G/4G modem, a mini USB Port for power supply.
Port Forwarding
Virtual Server, Port Triggering, DMZ, UPnP
Security
Firewall, MAC filtering, Denial of Service (DoS)
Transmit Power
<20dBm
Wireless Modes
3G Router, Travel Router (AP), WISP Client Router
Wireless Security
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
120 mm
Depth
90 mm
Weight
0.03 kg
