30W Microwave Sensor Solar LED Street Light

Brand logo
SKU SSL-B30MC
Brand logo

30W Microwave Sensor Solar LED Street Light

SKU SSL-B30MC

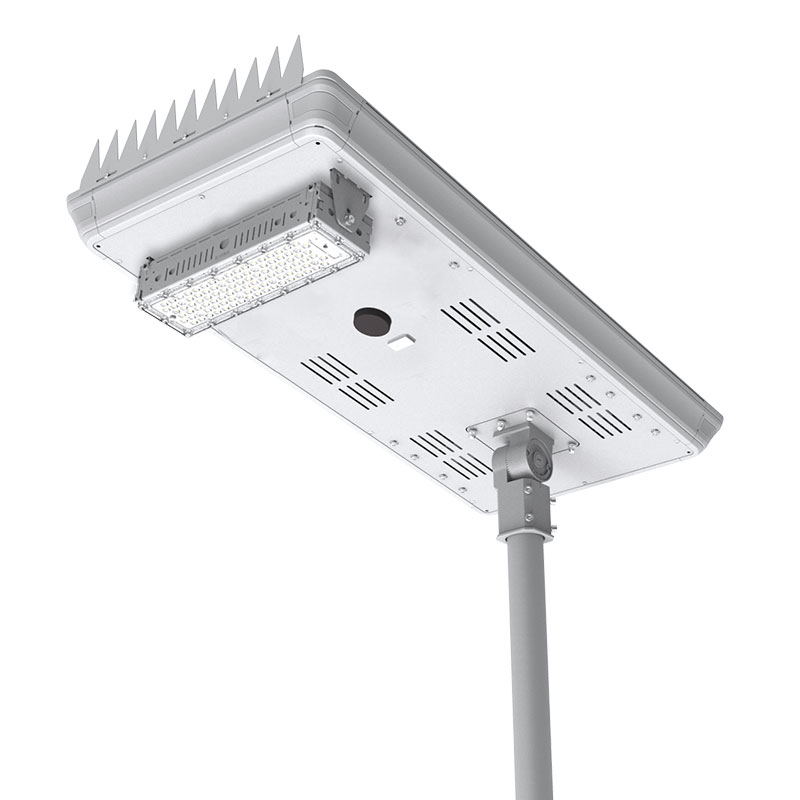

The ENSA™ SSL-B series features motion-powered, solar-charged LED street lights, designed to easily deliver lighting to any outdoor location. These pole-mounted lights provide good coverage with a wide 145° beam angle in cool white colour. The light can be set to always be active from dusk to dawn, or only when motion is detected with the adjustable motion sensor.

The solar panel unit features a 30W motion activated LED street light plus, the entire system is powered by a rechargeable LiFePo₄ battery. The LED street light and the LiFePo₄ battery are all combined into the one solar panel unit.

These lights are fully self-sufficient, not requiring any external cabling. This makes them excellent for use in remote locations such as rural roads, power stations & construction sites, as well as general use in streets, parks, schools, farms and more.

Product features:
• 30W motion activated solar powered street light
• 80W monocrystalline silicon solar panel with LiFePO4 internal battery
• 5700K cool white colour temperature
• Outstanding energy efficiency at >180lm/W performance
• Up to 21% conversion rate monocrystalline solar panels
• Dusk/dawn switch, motion sensing & on-time delay
• Configure power output for different times of the day
• 60° tilt-adjustable LED modules for lighting customisation
• Multiple days of use from full charge (sensor mode, overcast)
• IP65 weather rated with included bird guard (optional)

*Pole not included

Suggested Products

Suggested product image
20W Microwave Sensor Solar LED Street Light
SSL-B20MC
Suggested product image
50W Microwave Sensor Solar LED Street Light
SSL-B50MC
Suggested product image
60W Microwave Sensor Solar LED Street Light
SSL-B60MC

Links and Downloads

ENSA SSL-B Series Solar Street Light Datasheet (PDF) 2.98 MB
ENSA SSL-B Series Solar Street Light Condensed Datasheet (PDF) 0.79 MB
ENSA SSL-B Series Solar System Applications Brochure (PDF) 3.38 MB
SSL-B30MC Lighting Simulation (IES) 0.08 MB
Solar Panel Control Box LED Explanation Table.pdf 0.07 MB
SSL-B Solar Street Light User Manual - Grey Remote (Gen 1)(PDF) 3.84 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Light
Light Output
5500lm
Luminous Efficacy
180lm/W
Colour Temperature
5700K
Beam Angle
145° x 75°
Rated LED Lifespan
50,000hrs
LED Testing
LM80 / TM21 (available on request)
Power Consumption
30W
Internal Battery
320Wh LiFePO4
Input Voltage
12.8VDC
Operating Time
72~120 hours (intelligent mode, rainy weather)
Light Bracket
Adjustable bracket angle -30° ~ 30°
Solar System
Panel Type
Monocrystalline silicon
Panel Wattage
80W
Panel Conversion Rate
≥21%
Panel Bracket
Adjustable bracket angle -60° ~ 60°
Rec. Install Height
5 ~ 7m
Detection
Motion Detection
Microwave motion sensor
Detection Range
Ø8 ~ 15m (height: 5 ~ 7m)
Light Mode Settings (Normal)
Mode time period / Brightness
Light Mode Settings (Morning)
Mode time period / Brightness
Light Mode Settings (Sensor)
Mode time period / Brightness on motion / On-time delay / Brightness after motion
General
Ingress Protection
IP65
Pole Diameter
Ø50~60mm
Charging Temperature
0℃~65℃

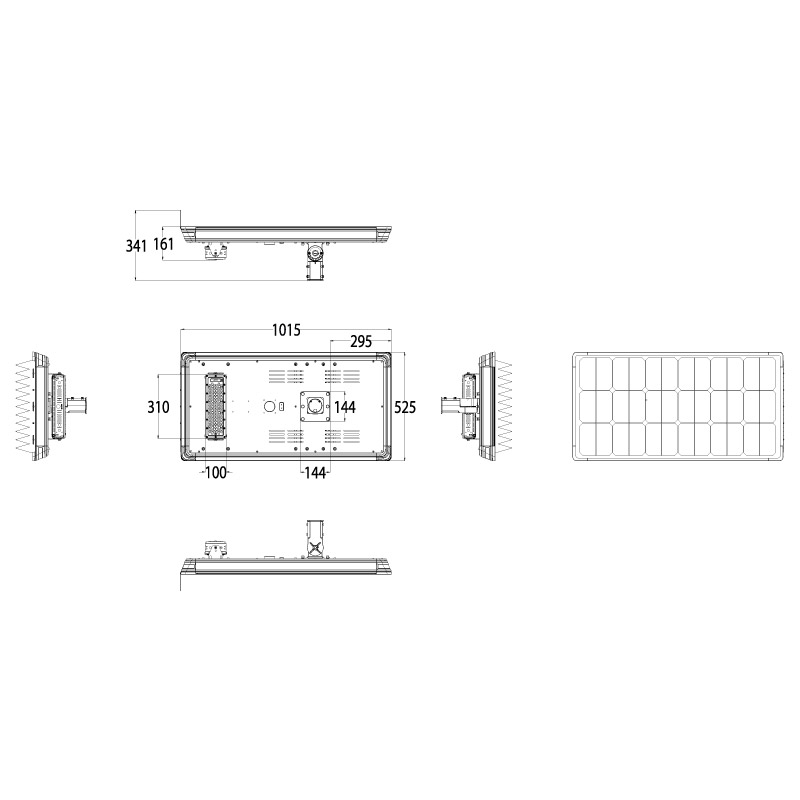

Dimensions
1015mm x 525mm x 161mm
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
615 mm
Height
1,105 mm
Depth
245 mm
Weight
22.00 kg
