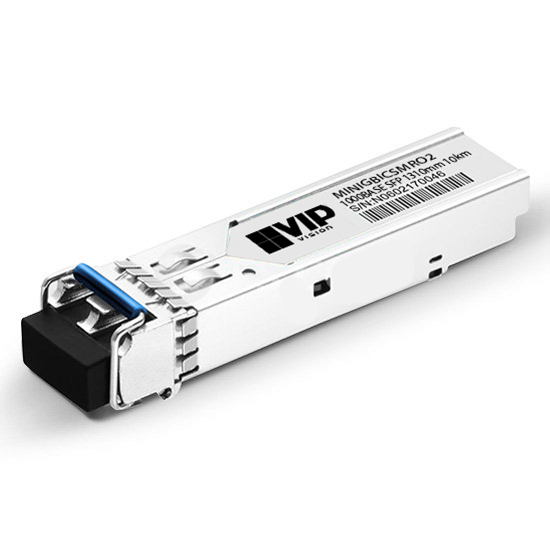

Mini GBIC / SFP Single-mode Fibre Adapter (SMF)

SKU SFPSM1

Mini GBIC / SFP Single-mode Fibre Adapter (SMF)

SKU SFPSM1

The SFPSM1 is a compact, hot-pluggable SFP module for linking high speed optical fibre infrastructure to a network. Easily configure and upgrade networks for high-speed networking over optical fibre, with a bit rate of up to 1.25Gbps.

Product features:
• Mini GBIC / SFP optical fibre adapter
• Transfer data over optical fibre at up to 1.25Gbps
• SFP (Small Form-factor Pluggable)
• Compatible with SMF (single mode fibre)
• 1310nm VCSEL laser transmitter
• Hot-pluggable, allowing for installation and removal while the system is running
• Built-in digital diagnostic functions, including optical power monitoring

Installed in the 1000 Base-X (Combo port) SFP ports of VIP Vision PoE switches.

Suggested Products

LC-LC OM3 Multimode Fibre Optic Patch Lead - 2m
FCLCLC2M

LC-SC OM3 Multimode Fibre Optic Patch Lead - 2m
FCLCSC2M

LC-ST OM3 Multimode Fibre Optic Patch Lead - 2m
FCLCST2MOM3

8-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW8

16-port Managed Fast Hi-PoE Ethernet Switch
VSPOE-SWA16

24-port Managed Fast Hi-PoE Ethernet Switch
VSPOE-SWA24

Links and Downloads

CE/ RCM Certificate

RoHS Certificate

Specifications

Interface

Cable Type

Single-mode Fibre

Form Type

SFP (Small Form-factor Pluggable)

Interface

LC duplex

DOM Support

Yes

Max Bit Rate

1.25Gb/s

Transmitter / Receiver

TX Power

-9.5 ~ -3dBm

Protocols

SFF-8472 MSA Compliant, IEEE 802.3ah-2004, ANSI Fibre Channel

Wavelength

1310nm

Receiver Sensitivity

< -21dBm

Environment

Power Supply

3.3VDC / 300mA

Operating Environment

-40 to 85°C / RH95% (max)

Other

Max Cable Distance

10km

Warranty (Years)

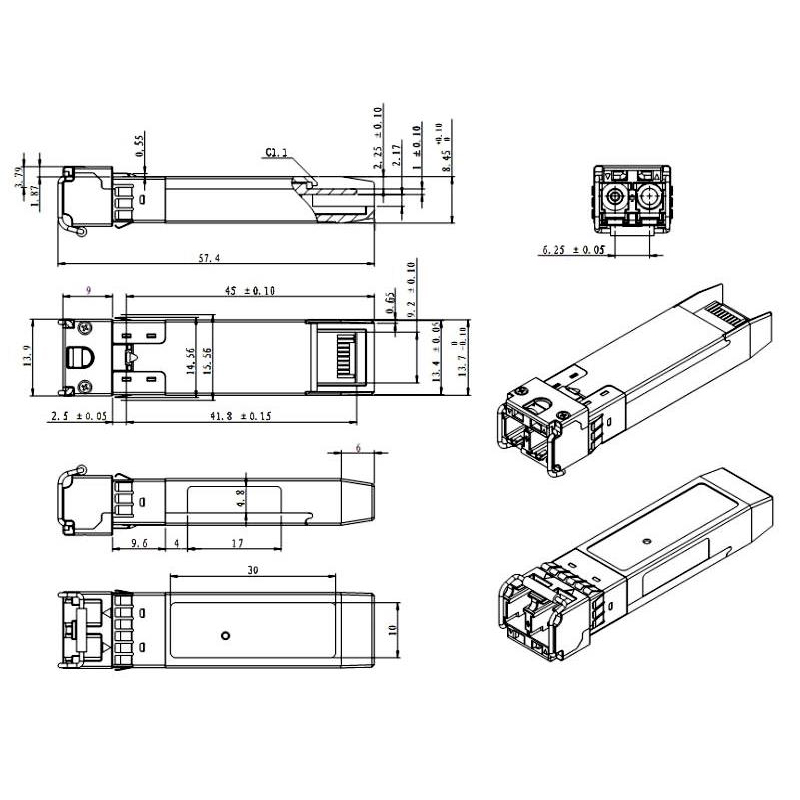

Shipping Weight and Dimensions

Includes product packaging

Width

59 mm

Height

12 mm

Depth

12 mm

Weight

0.03 kg
