Vertical Wall Mount Security Cabinet

Brand logo
SKU SECCAB
Brand logo

Vertical Wall Mount Security Cabinet

SKU SECCAB

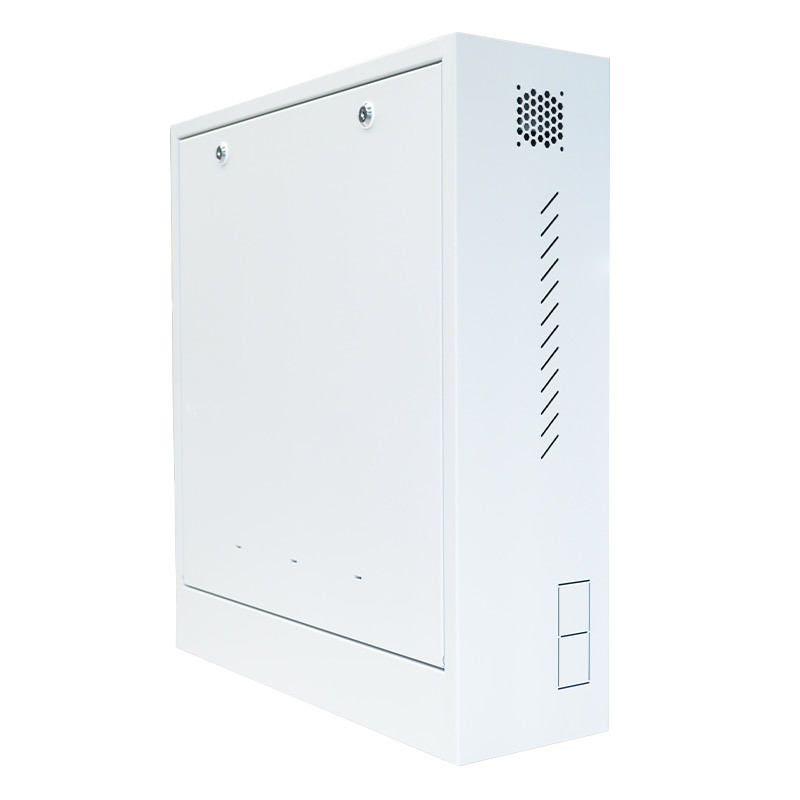

The SECCAB is a compact, vertical, wall-mount security cabinet that is great for delivering professional results in security installations. The SECCAB offers secure storage of CCTV surveillance, alarm & access control systems in difficult areas with limited space, such as behind refrigerators, in cupboards or wardrobes.

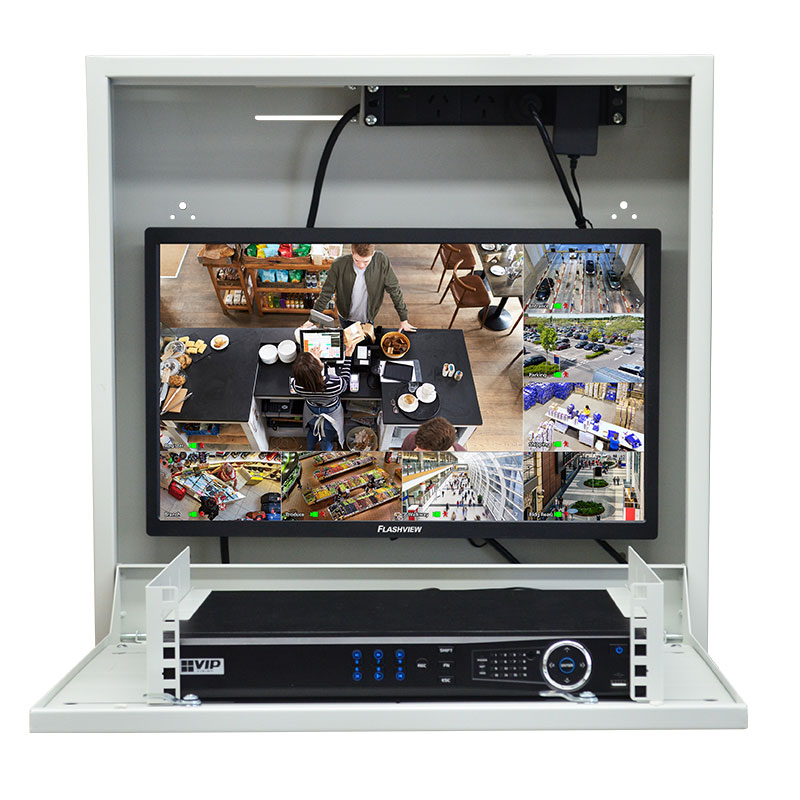

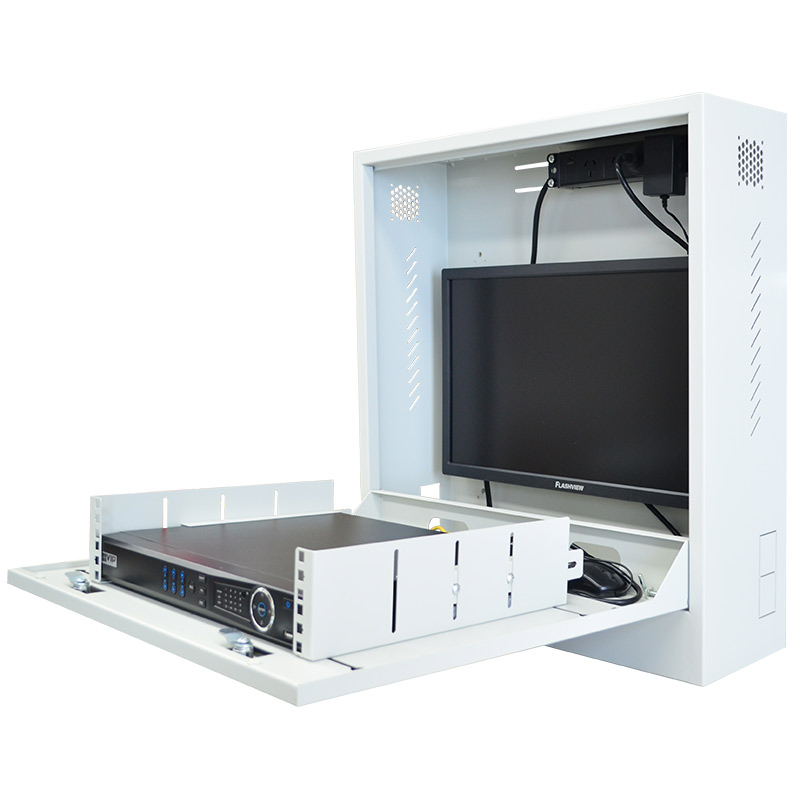

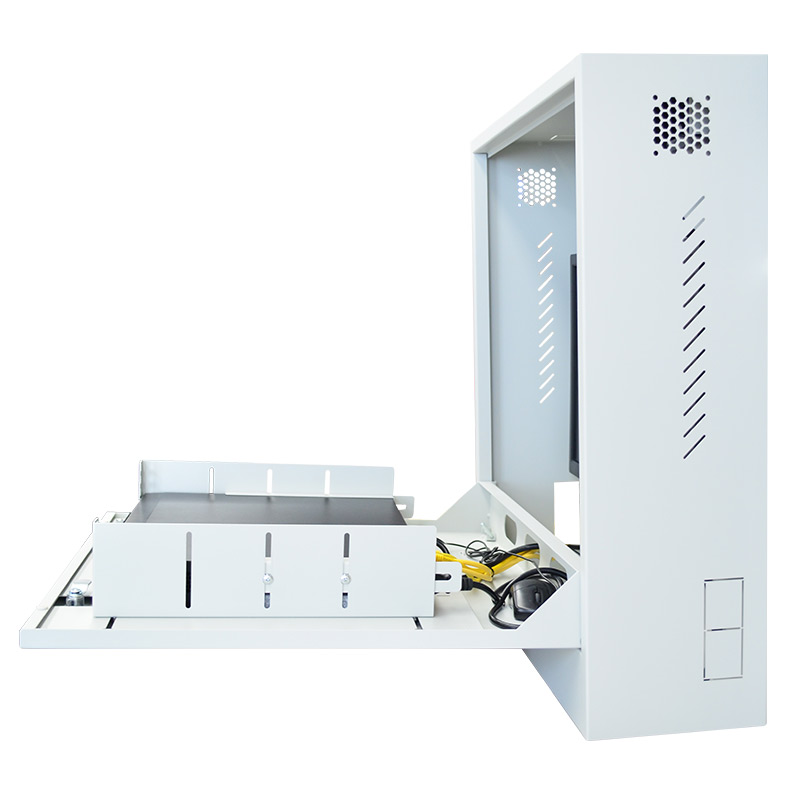

The SECCAB vertical rackmount shelf has a capacity of up to 2U height, up to 480mm width & 465mm depth, with extra space to mount up to a 24'' LCD monitor. It can house 1 HDD, 2HDD and 4HDD bay NVRs and DVRs from VIP Vision, Watchguard, Securview. It can also accommodate a WGAP864 alarm system and professional VIP Vision access control system in a single cabinet.

Product features:

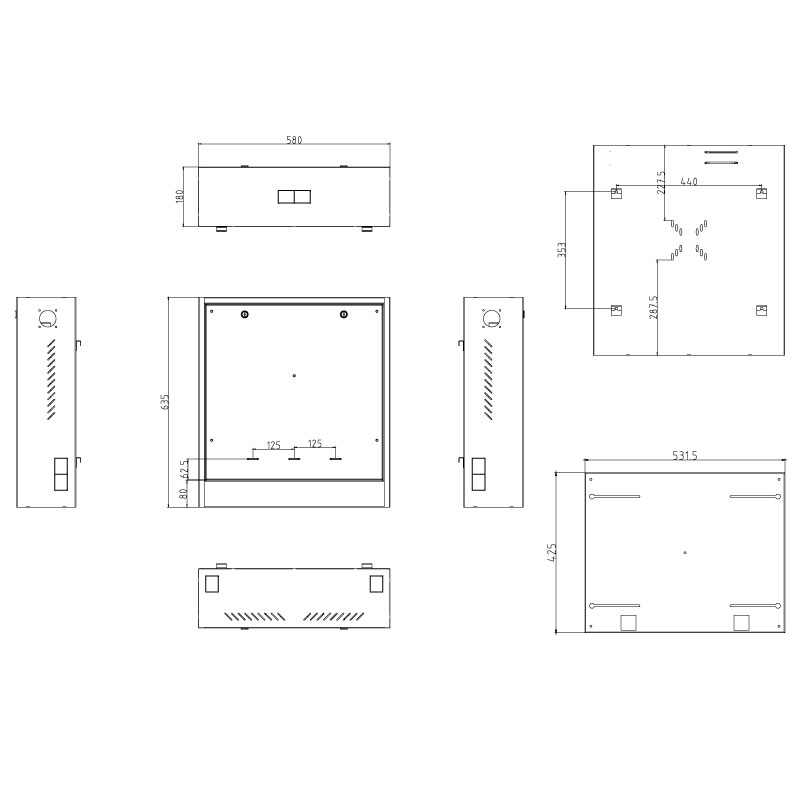

• Compact; only 580(W) x 635(H)x 180(D)mm (closed)
• Capacity: 2RU, 240~480mm width, 465mm depth
• Cable management knockouts from all cabinet sides

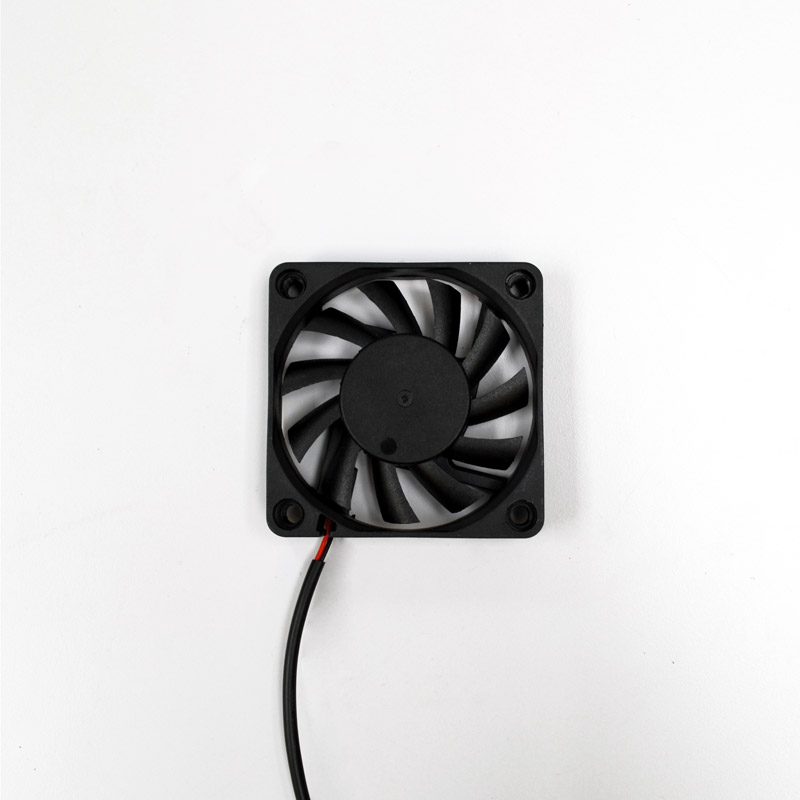

• Superior ventilation; optional 2 x 50mm cooling fans
• Fit up to 24” monitor, with 50/75/100 VESA mounts

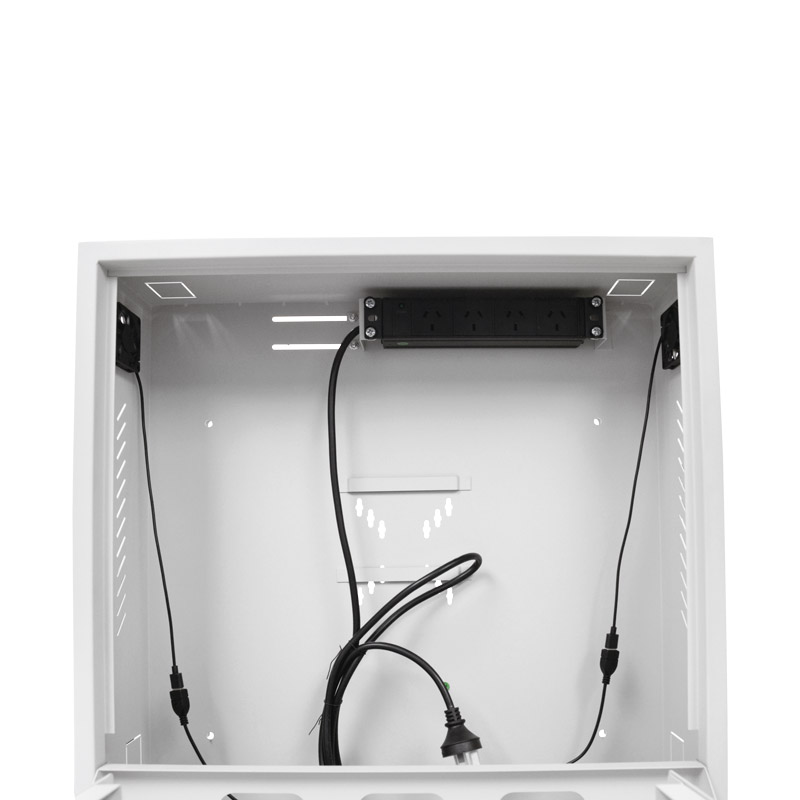

• Integrated 4 x outlet powerboard & 2 x cabinet locks
• 30kg cabinet load bearing capacity (10kg vertical shelf)

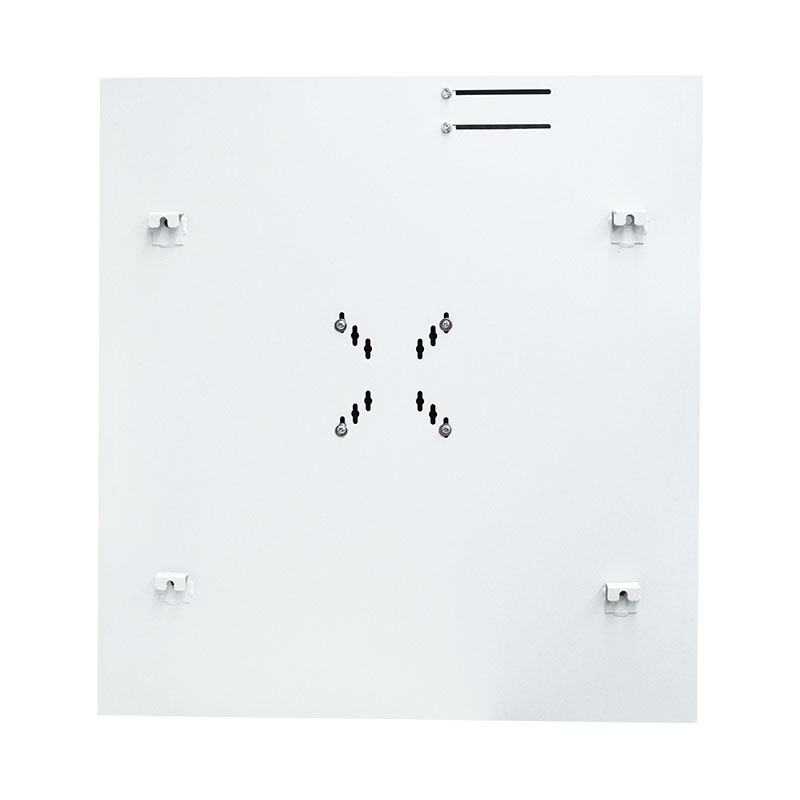

• 440mm width between mount points to fit wall studs
• SPCC steel construction and white powder coating

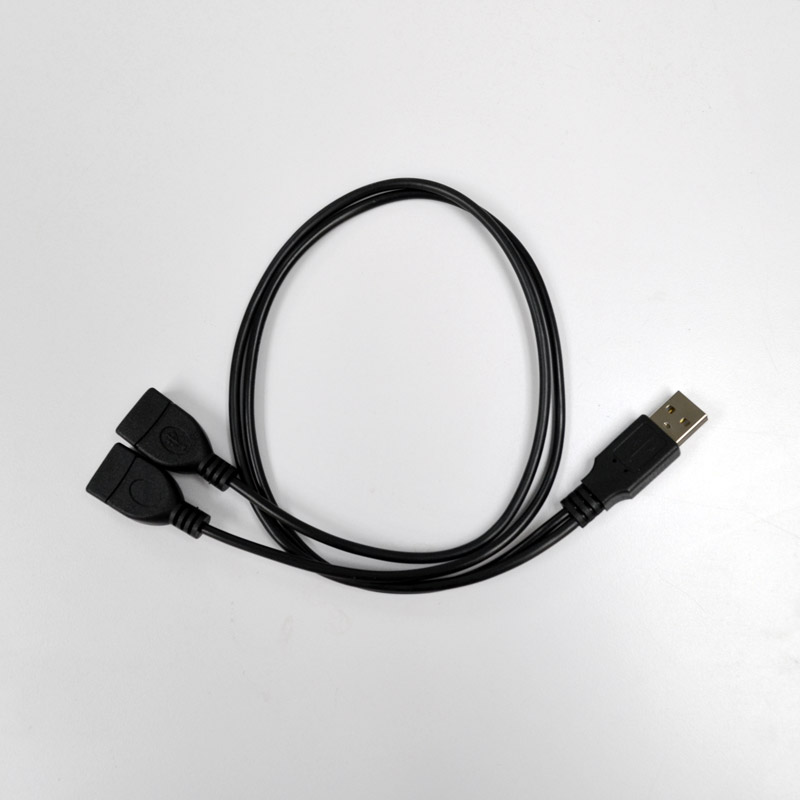

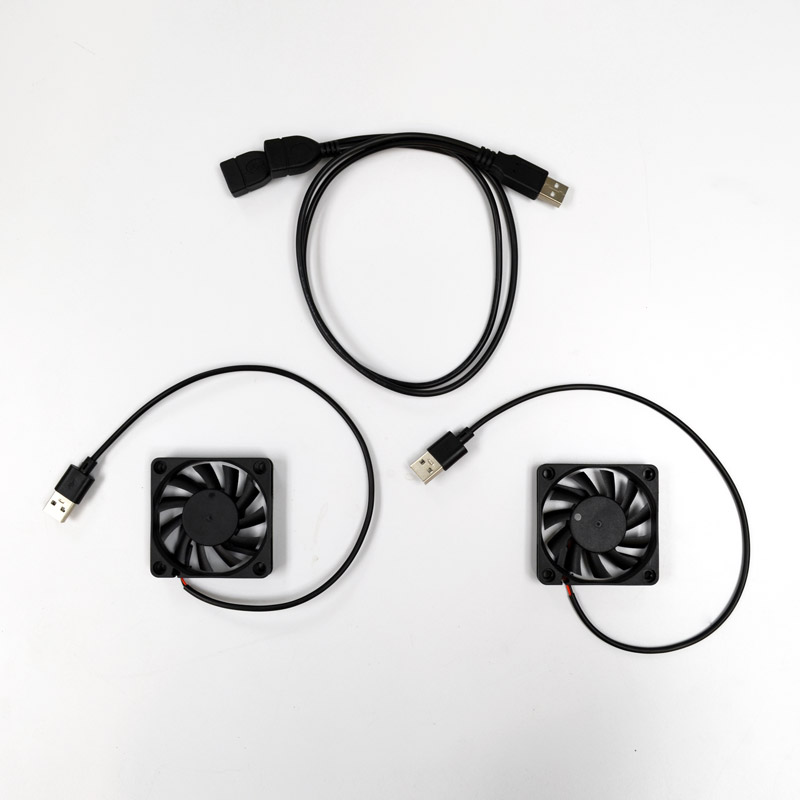

• USB Fans included

* Ensure monitor has vertical / downwards-facing input ports & power connectors
* Included standoffs and screws for attachment of alarm panels and other security systems to the SECCAB
* 4 x nuts, washers & bolts included for monitor mounting

*NOTE: We are recommending only using monitors listed below under Suggested Products; other monitors may not fit.

Suggested Products

Suggested product image
HDMI Right-Angle Adapter (Male to Female)
HDMIBMTF
Suggested product image
22" Flashview 1080p LED LCD Surveillance Monitor (VA)
LCDFL22G2
Suggested product image
24" Flashview 1080p LED LCD Surveillance Monitor (VA)
LCDFL24G2
Suggested product image
600VA Line Interactive UPS - 360W
UPS-C600-L

Links and Downloads

SECCAB Product Datasheet (PDF) 0.74 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Vertical Rack Capacity
Max. Capacity (H)
2RU (~90mm)
Max. Capacity (W)
Adjustable 240 ~ 480mm rackmount slides
Max. Capacity (D)
465mm
Monitor
Max. Monitor Size
24” (16:9 widescreen)
VESA Mount
50 / 75 / 100
Features
Ventilation
2 x 50mm fan slots (optional)
Cabinet Lock

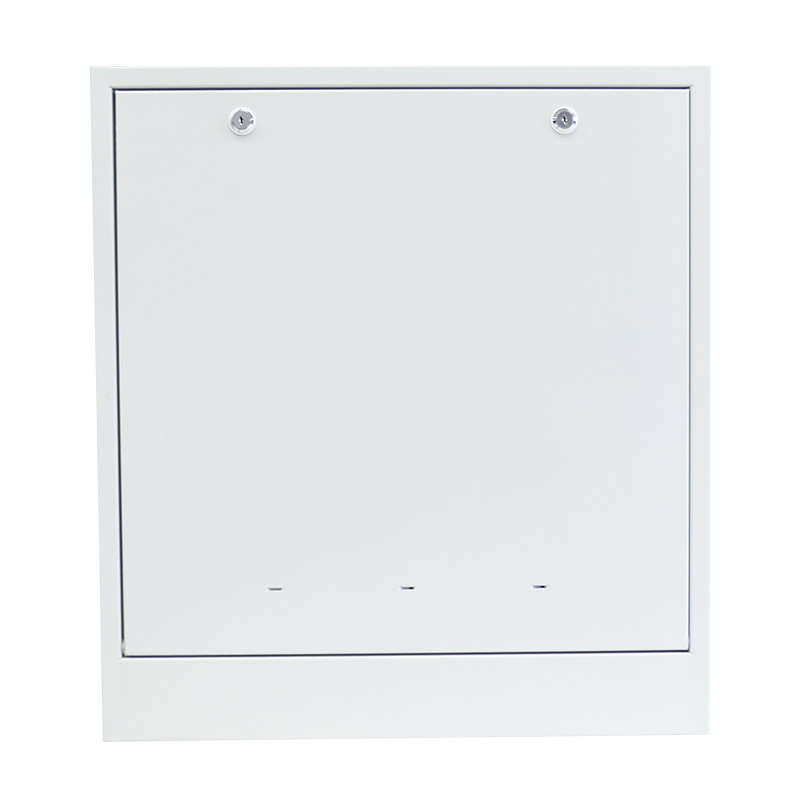

2 x locks on front door
Cable Management
2 per side, 8 total (40 x 50mm each)
Power
4 x Outlet Powerboard
Installation
Wall Mount
4 x Mounting Points with Hooks
Wall Mount Dimensions (W x H)
440 x 353mm
General
Load Capacity
Wall Mount: 30kg / Hinged Shelf: 10kg
Materials
SPCC quality cold rolled steel, powder coated
Weight
17.0kg
Dimensions (W x H x D)
Closed: 580 x 635 x 180mm / Open: 580 x 635 x 712mm
Other
Cabinet Depth
465mm
Fixed Shelves
No
Mounting Options
Wall Mount
Power Board
Yes
Rack Units (RU)
2
Wheels
No
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
660 mm
Height
610 mm
Depth
220 mm
Weight
16.00 kg
