3G GPS Vehicle Tracker

Brand logo
SKU RHINOTRACKS-ST4
Brand logo

3G GPS Vehicle Tracker

SKU RHINOTRACKS-ST4

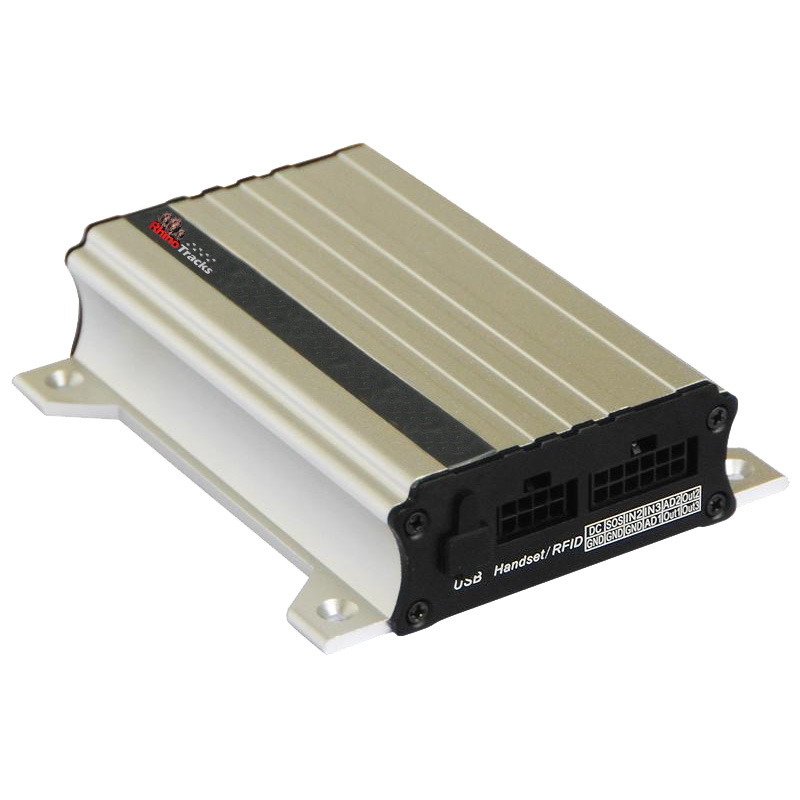

The RHINOTRACKS-ST4 is the latest GPS Vehicle Tracker supporting the 3G network. It is suitable for 11V to 36V DC vehicles and designed to keep you informed of where your vehicle is and where it has been.

It is an ideal solution for basic fleet, stolen vehicle, auto rental and other vehicle tracking applications. The stronger outer aluminum casing effectively secures the internal components from exposure to the elements and heat.

At 190g, the RHINOTRACKS-ST4 is lightweight and small enough to be securely installed in areas of minimal space. The device can run on 2G as a backup if a 3G network is not available.

Product Features:
• Real time tracking
• 3G Network
• Assisted-GPS
• History reports

Links and Downloads

RHINOTRACKS-ST4 Product Brochure (PDF) 0.24 MB
RHINOTRACKS-ST4 User Manual (PDF) 0.55 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Button/Switches
1 x SOS button, 1 x power button
Dimensions (mm)
105 x 65 x 26
Frequency Band: T333-A
UMTS/HSDPA: 850/1900MHz; GSM/GPRS: 850/900/1800/1900MHz
GPS
u-Blox 7
GPS Antenna
External
GPS Sensitivity
-161dB
GSM Antenna
External
I/O Port
3 digital inputs - (2 negative and 1 positive), 2 analog detection inputs; 3 outputs - 1 RS232 port, 1 USB port, 1 digital temperature sensor port
Indicators
Green indicator: GSM signal / Blue indicator: GPS signal
Input Voltage
11V ~ 36V DC/1.5A
Operating Environment
-20°C to 55°C / RH95% (max)
Positioning Accuracy
10m
Sensor
3D acceleration sensor (vibration, wake-up and towing alarms)
Standby Battery
850mAh/3.7V
Storage
8MB
Weight
190g
Working Hours
100 hours in power-saving mode, 10 hours in normal mode
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
150 mm
Height
190 mm
Depth
95 mm
Weight
0.80 kg
