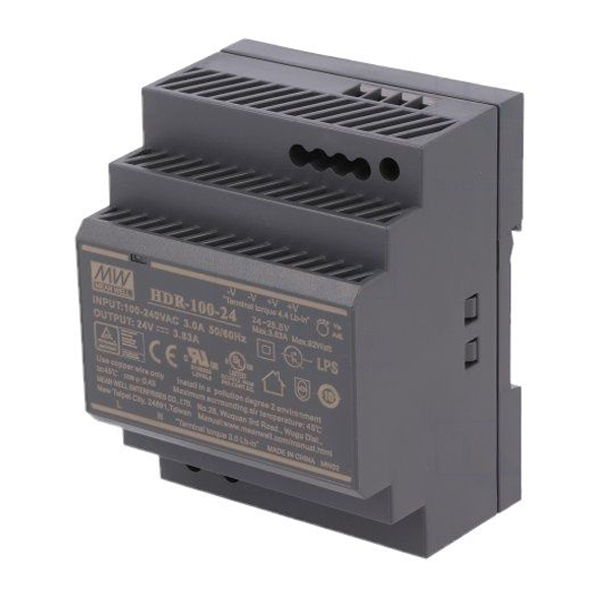

24VDC 4A Single Output Industrial DIN Rail Power Supply

Brand logo
SKU PSDR24V4A2
Brand logo

24VDC 4A Single Output Industrial DIN Rail Power Supply

SKU PSDR24V4A2

The PSDR24V4A is a 24VDC Class II DIN rail mount switching power supply, designed with a fully isolated plastic case to prevent user contact and the risk of shock. Features no load power consumption to save energy and protection against short circuit, over load, over voltage & over temperature.

Product features:
• 24VDC 4A Power output with universal 88~264VAC input
• Adjustable voltage range 24 ~ 25.5V; tailor voltage in longer cable runs
• Integrated protection against line overvoltage / overload / short circuit
• Integrate to protect IT & security in home, office and retail environments

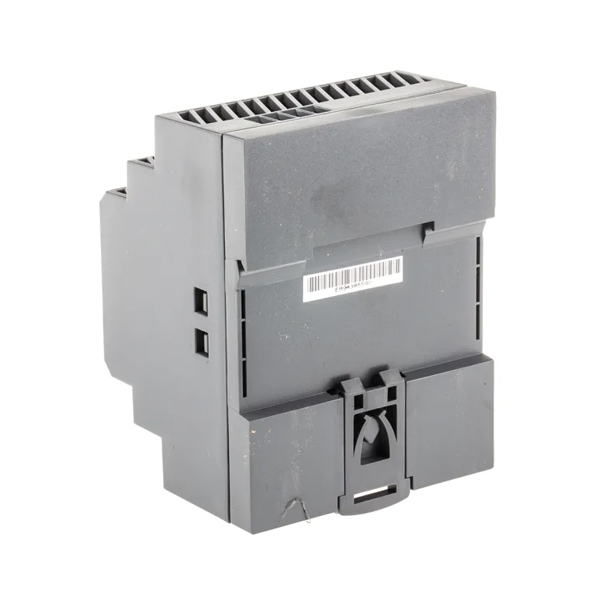

• Designed for installation on DIN rail TS-35/7.5 or 15
• Prevents overheating with free air convection
• Double Insulated - Isolation Class II
• LED indicator for power on
• No load power consumption (<0.3W)

Links and Downloads

PSDR12V4A2 / PSDR24V4A2 Datasheet (PDF) 1.02 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Output
DC Voltage
24V
Rated Current
4.2A
Current Range
0 ~ 4.2A
Rated Power
100.8W
Ripple and Noise (max.)
150mVp-p
Voltage Adj. Range
Pass LPS: 24 ~ 25.5V / Non LPS: 21.6 ~ 29V
Voltage Tolerance
±1.0%
Line Regulation
±1.0%
Load Regulation
±1.0%
Setup, Rise Time
500ms, 60ms/230VAC / 500ms, 60ms/115VAC at full load
Hold Up Time
50ms/230VAC / 18ms/115VAC at full load
Input
Voltage Range
88 ~ 264VAC (277VAC operational) / 124 ~ 370VDC (390VDC operational)
Frequency Range
47 ~ 63Hz
Efficiency
90%
AC Current
3A/115VAC / 1.6A/230VAC
In-rush Current
Cold Start - 35A/115VAC / Normal - 70A/230VAC
Protection
Overload Protection
105 ~ 150% rated output power
Overvoltage Protection
30 ~ 36V
Environment
Working Temperature
-30 ~ +70°C
Working Humidity
20 ~ 90% RH non-condensing
Storage Temp., Humidity
-40 ~ +85°C , 10 ~ 95% RH
Temp Coefficient
±0.03%/0C (0 ~ 50°C)
Vibration (Component)
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Vibration (Mounting)
Compliance to IEC60068-2-6

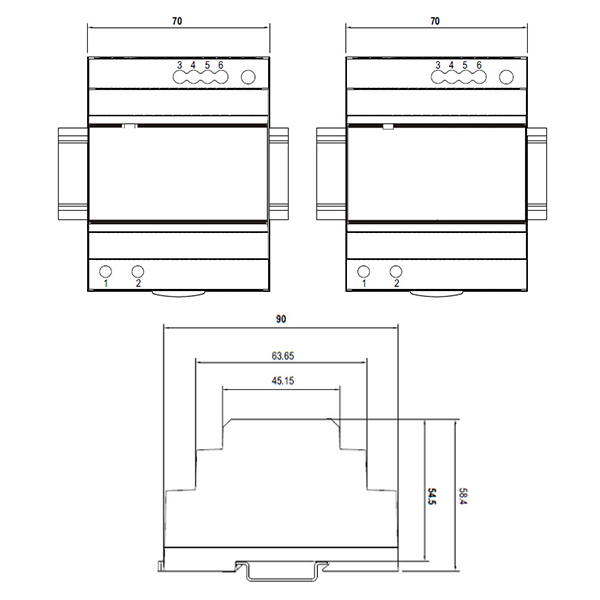

Dimensions
70 x 90 x 54.5mm
Safety
Safety Standards
UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178,TUV EN60950-1
Withstand Voltage
I/P-O/P:3KVAC
Isolation Resistance
I/P-O/P:>100M Ohms/500VDC 25°C 70%RH
EMI Conduction & Radiation
Compliance to EN61204-3
Harmonic Current
Compliance to EN61000-3-2,-3
EMS Immunity
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
MTBF
486K hrs min., MIL-HDBK-217F (25°C)
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
31 mm
Height
117 mm
Depth
15 mm
Weight
0.33 kg
