12VDC 7.5A Single Output Industrial DIN Rail Power Supply

Brand logo
SKU PSDR12V7A2
Brand logo

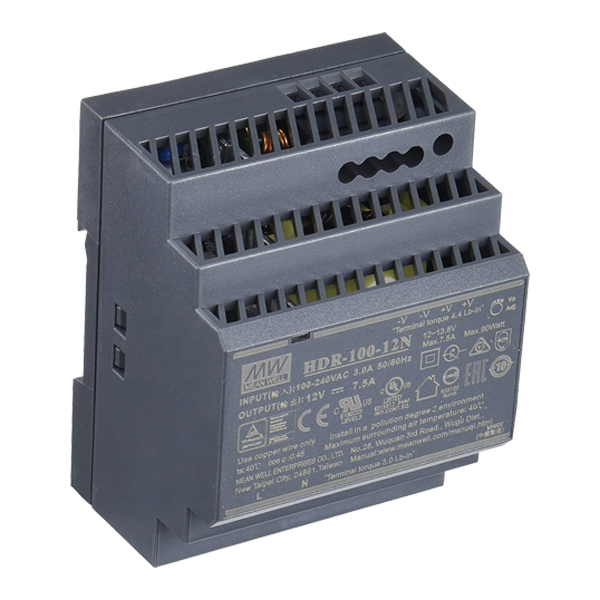

12VDC 7.5A Single Output Industrial DIN Rail Power Supply

SKU PSDR12V7A2

This product is Coming Soon. Please contact us for more information.

The PSDR12V7A2 is a 12VDC Class II DIN rail mount switching power supply, designed with a fully isolated plastic case to prevent user contact and the risk of shock. Features no load power consumption to save energy and protection against short circuit, over load, over voltage & over temperature.

Product features:
• 12VDC 7.5A Power output with universal 88~264VAC input
• Adjustable voltage range 12V ~ 13V; tailor voltage in longer cable runs
• Integrated protection against line overvoltage / overload / short circuit
• Integrate to protect IT & security in home, office and retail environments
• Designed for installation on DIN rail TS-35/7.5 or 15
• Prevents overheating with free air convection
• Double Insulated - Isolation Class II
• LED indicator for power on
• No load power consumption (<0.3W)

Links and Downloads

PSDR12V4A2 / PSDR24V4A2 Datasheet (PDF) 1.02 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Output
DC Voltage
12V
Rated Current
7.5A
Current Range
0 ~ 7.5A
Rated Power
90W
Ripple and Noise (max.)
120mVp-p
Voltage Adj. Range
Pass LPS: 12 ~ 13V / Non LPS: 12 ~ 13.8V
Voltage Tolerance
±2.0%
Line Regulation
±1.0%
Load Regulation
±1.0%
Setup, Rise Time
500ms, 60ms/230VAC / 500ms, 60ms/115VAC at full load
Hold Up Time
50ms/230VAC / 18ms/115VAC at full load
Input
Voltage Range
88 ~ 264VAC (277VAC operational) / 124 ~ 370VDC (390VDC operational)
Frequency Range
47 ~ 63Hz
Efficiency
88%
AC Current
3A/115VAC / 1.6A/230VAC
In-rush Current
Cold Start - 35A/115VAC / Normal - 70A/230VAC
Protection
Overload Protection
105 ~ 150% rated output power
Overvoltage Protection
14.2 ~ 16.2V
Environment
Working Temperature
-30 ~ +70°C
Working Humidity
20 ~ 90% RH non-condensing
Storage Temp., Humidity
-40 ~ +85°C , 10 ~ 95% RH
Temp Coefficient
±0.03%/0C (0 ~ 50°C)
Vibration (Component)
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Vibration (Mounting)
Compliance to IEC60068-2-6
Dimensions
70 x 90 x 54.5mm
Safety
Safety Standards
UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178,TUV EN60950-1
Withstand Voltage
I/P-O/P:3KVAC
Isolation Resistance
I/P-O/P:>100M Ohms/500VDC 25°C 70%RH
EMI Conduction & Radiation
Compliance to EN61204-3
Harmonic Current
Compliance to EN61000-3-2,-3
EMS Immunity
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
MTBF
486K hrs min., MIL-HDBK-217F (25°C)
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
31 mm
Height
117 mm
Depth
15 mm
Weight
0.33 kg
