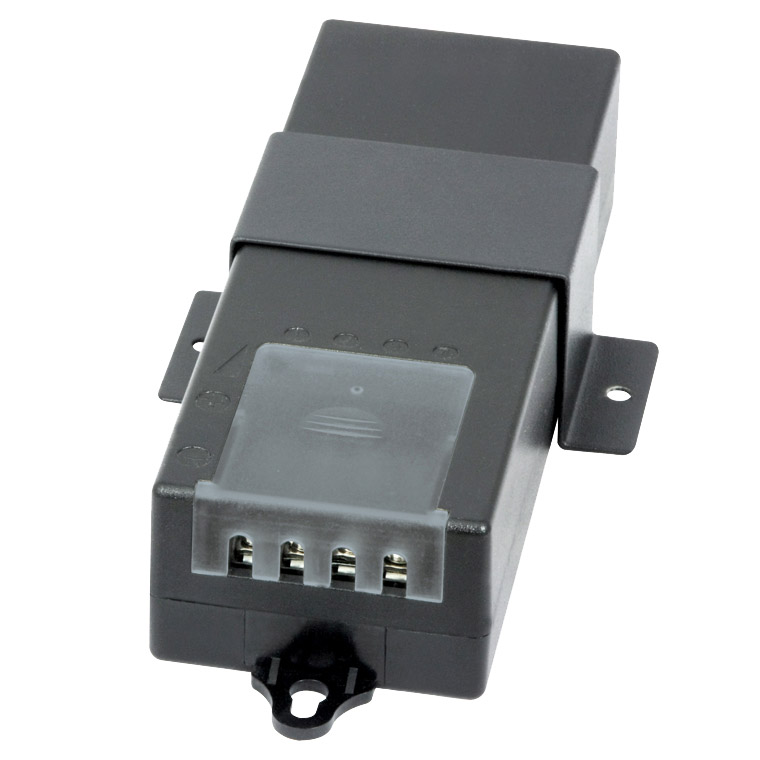

4 Channel 12VDC 5A Power Supply

Brand logo
SKU PS12V5A4CH
Brand logo

4 Channel 12VDC 5A Power Supply

SKU PS12V5A4CH

The PS12V5A4CH is a 4-channel 5-Amp power supply. While normally used in CCTV installations, it is suitable for a wide variety of both CCTV and access control applications. It features adjustable output voltage and built-in 6.8-Amp overcurrent protection.

• 4-Channel 5-Amp power distribution
• Can be mounted with the bracket for easy access and reduced power cord clutter
• Universal input voltage: 100~240 VAC
• Adjustable output voltage: 12~13.8 VDC
• Built-in 6.8-Amp overcurrent protection.
• High voltage and overcurrent protection
• LED Power indicator

Links and Downloads

PS12V5A4CH Product Brochure (PDF) 0.33 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

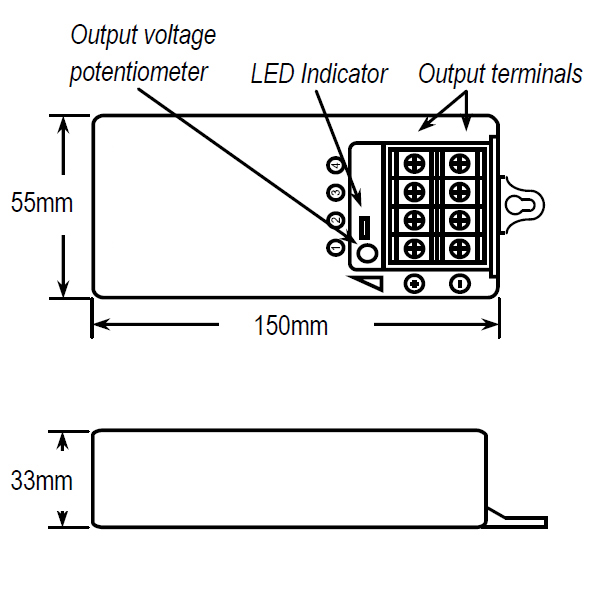

Dimensions
150 x 55 x 33mm
Input Fuse
3.15A@250 VAC
Input Voltage
100~240 VAC
Max. Output Power
60W
Operating Temperature
-10° ~ 45°C
Output Voltage
12~13.8 VDC
Outputs
4
Over Current Protection
12VDC/6.8A
Total Supply Current
5A
Weight
380g
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
185 mm
Height
40 mm
Depth
132 mm
Weight
0.30 kg
