Permaconn IP Only Alarm Communicator

Brand logo
SKU PM35

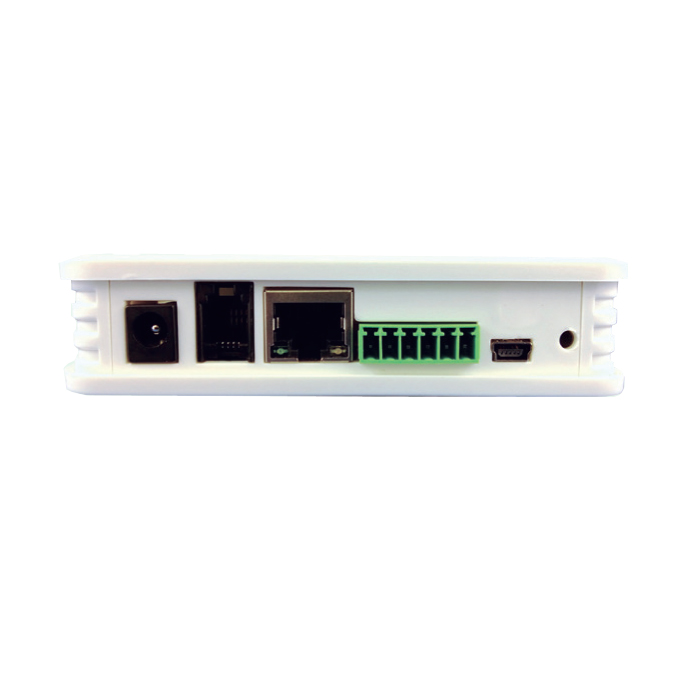

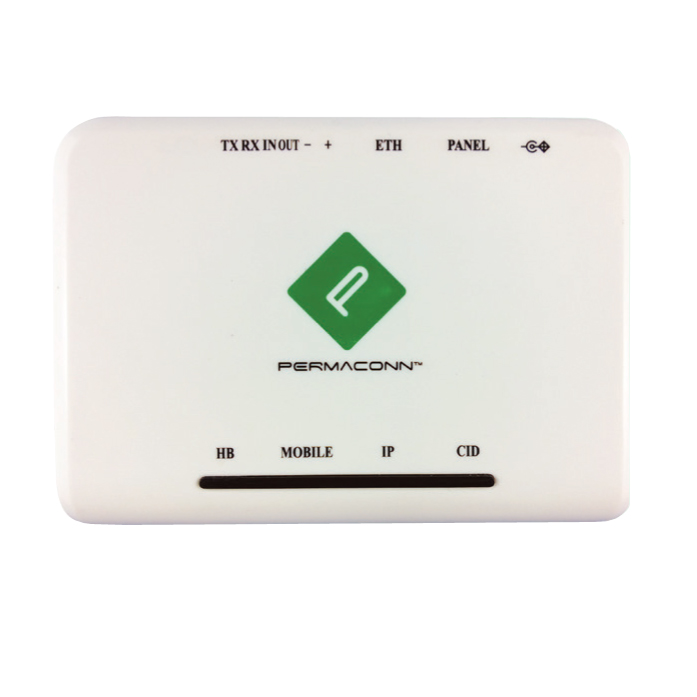

Permaconn IP Only Alarm Communicator

SKU PM35

This unit can interface with a range of alarm panels using Contact ID. Alarm messages are sent using the clients ISP and are received by any Central Station that has the Permaconn solution installed.

PM35 Features:
• Remote alarm panel Upload/Download available using IP
• Plug & Play IP alarm communicator
• 1 input & 1 output, function control using Atlas and/or Pocket Secure
• Compatible with NBN and Naked DSL serivces
• Interfaces with any Contact ID alarm panel

Links and Downloads

PM35 Product Brochure (PDF) 0.27 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Auxiliary Input
1 x 24Hr input - state change detected every second.
Auxiliary Output
1 x Open collector output @50mA (max) Function control using Atlas web portal and/or ‘Pocket Secure’
Communication Protocol
Ethernet (10/100BASE-T)
Dimensions (HxDxW)
110 x 25 x 80mm
EOL
3.3K
Housing Material
White ABS Plastic
Network Protocol
DHCP or Static IP
Operating Enviornment
0°- 50°C @15% to 85% humidity (non-condensing)
Power
8 - 15V DC. Terminal or plug pack socket available. Plug pack must have approval
Power Consumption
0.15A @13.8V DC
Serial Port
High Speed RS232 interface
Static IP Network Config
Ethernet interface using IpSetup program
Weight
0.09kg
Warranty (Years)
2
