Single Sim 4G GSM Dialer

Brand logo
SKU PM24
Brand logo

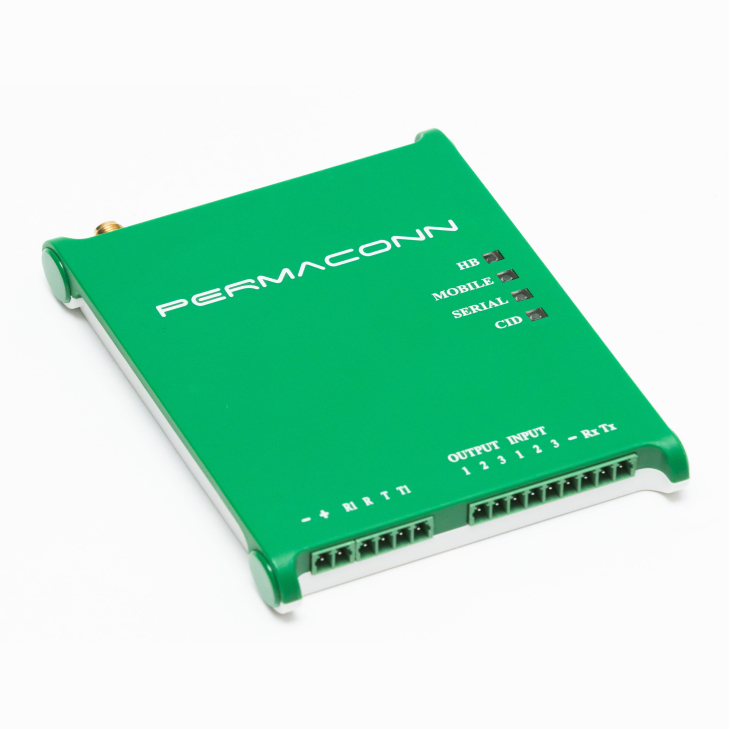

Single Sim 4G GSM Dialer

SKU PM24

The smallest and most cost effective single SIM Communicator in Australia. This Communicator is compatible with any Contact ID enabled alarm panel.

The PM24 incorporates the latest technology available today - alarms and signals are transmitted over the CAT M1 IoT network, that forms part of the 4GX network.

Product features:
• Innovative: Uses latest Cat M1 network designed for machine-to-machine comms
• Higher Performance: Longer range and 20% greater penetration into buildings
• Lower Power Consumption: Easily powered by the alarm panel
• No Drilling or Screws: Attaches magnetically to alarm panel enclosure
• Smartphone Control: Works with Pocket Secure and Atlas
• Antenna included

Links and Downloads

Permaconn PM24 Datasheet (PDF) 0.07 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Approvals
EN62311: 2008, AS/NZS 2772.2: 2016, AS/NZS 60950.1:2015, AS/NZS CISPR 22: 2009+A1: 2010, AS/CA S042.4: 2015, AS/NZS 60950.1:2015, EN 55032: 2015, EN 55024: 2010+A1:2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, ETSI EN 301 489-1 V 2.1.1 (2017-02) Draft ETSI EN 301 489-52 V1.1.0 (2016-11), ETSI EN 301 908-1 V11.1.1(2016-07), ETSI EN 301 908-2 V11.1.1(2016-07), ETSI EN 301 908-1 V11.1.1 (2016-07), ETSI EN 301 908-13 V11.1.1 (2016-07), EN62479: 2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Auxiliary Input
3x 24hr inputs – state change Detected every second EOL 3.3K
Auxiliary Output
3x Open Collector outputs @ 50mA (max)
Cat
M1
Data Security
AES128 Encryption
Dimensions
108mm (H) x 15.5mm (D) 80mm (W)
Function
Control using Atlas web portal and/or “Pocket Secure” App
Housing Material
ABS plastic - Green
LTE FDD
B3 / B28
Modem
Quectel BG96
Power
8–15V DC Terminal Supply
Power Consumption
Standby: 0.04A @13.8v DC, Transmitting: 0.19A @13.8v DC
Weight
80g
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
105 mm
Height
15 mm
Depth
80 mm
Weight
0.08 kg
