High Gain Antenna for PM45-4G

Brand logo
SKU PM-ANTH3G

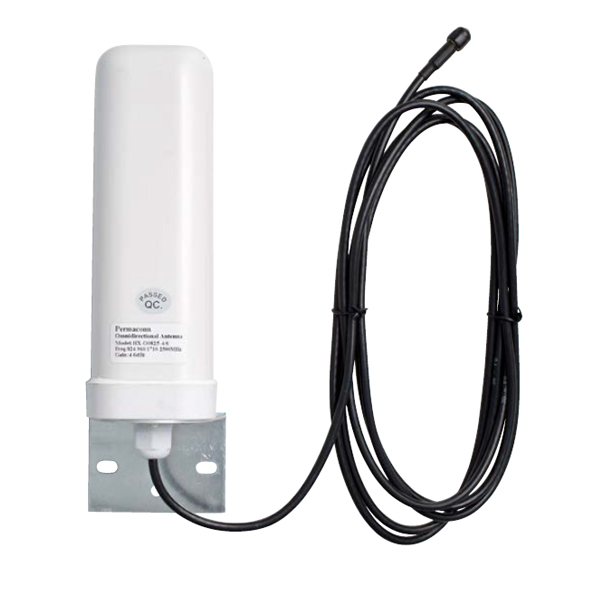

High Gain Antenna for PM45-4G

SKU PM-ANTH3G

Available by special order only. Please contact us for lead times.

The PM-ANTH3G high gain antenna can be used with the PM45-4G communicator to boost signal strength in areas where connection is poor, such a basements or other low-lying areas.

Product features:
• Dual band operation - 3G & 4G
• Wall mounting bracket included
• Weather resistant design
• 3m fly lead included
• 4 / 6dBi Gain - Depending on operating frequency

Suggested Products

Suggested product image
Permaconn 4G PM45 Alarm Communicator
PM45-4G

Links and Downloads

PM-ANTH3G Datasheet (PDF) 0.07 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Cable & Plug
3m Low loss cable, SMA male
Colour
White - UV Resistant ABS plastic case
Construction
Copper Radiators, PVC Radome, S/Steel Fittings
Dimensions - Antenna
188mm (h) x 65mm (dia)
Dimensions - Bracket
75mm (w) x 55mm (h) x 80mm (d)
Frequency
800–2500MHz (3G & 4G)
Gain
4/6dBi
Impedance
50Ω
Maximum Cable Distance
13m
Mounting Distance Off Wall
45mm to Concrete or brick, 208mm to Metal
Radiation Pattern
Omni - Directional
Weight
360g
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
115 mm
Height
275 mm
Depth
94 mm
Weight
0.40 kg
