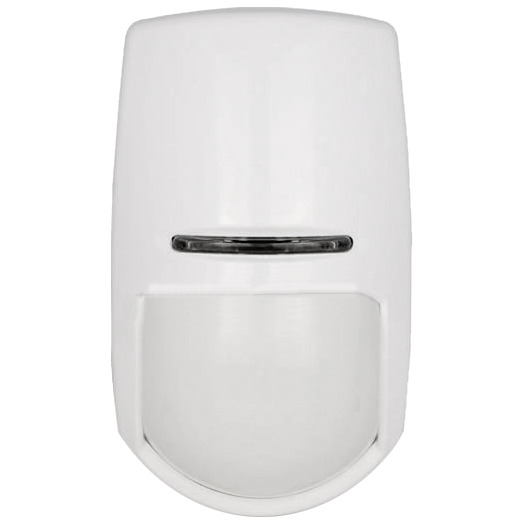

Universal Passive Infrared Movement Sensor With Dual Technology

Brand logo
SKU PIRHWDT
Brand logo

Universal Passive Infrared Movement Sensor With Dual Technology

SKU PIRHWDT

Stock may be limited. Please contact us for availability or for an alternative item.

This advanced PIR body heat movement sensor is suitable for indoor use with any alarm control panel. It can detect movement up to 12 meters away at an angle of 90 degrees from the sensor. The detector features automatic temperature compensation to improve performance when the ambient heat level in a room changes. The adjustable pulse count function enables you to select either normal or reduced detection sensitivity levels for use in harsh environments.

Features:
- Dual technology
- Detects Human Movement Up To 12m Away
- Streamline design
- Auto temperature compensation reducing false alarm
- White light immunity level over 20,000 Lux
- LED ON/OFF optional, pulse count optional
- NC / NO optional for different alarm panels
- Auto developed LEN technology
- High EM and RF Interference Immunity

Links and Downloads

Brochure
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Output
Selectable N.C. or N.O Outputs
Case Tamper Switch
N.C. Contact
Detecting Angle
90 °
Detecting Range
12m
Dimension
54(W) x 36(D) x 106(H) mm
Installation Height
1.8 ~2.2m
Installation Method
Wall Mounted
Operating Voltage
DC 9 -16V
Supply Current
<22mA (DC 12V)
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
240 mm
Depth
70 mm
Weight
0.17 kg
