360° PIR Sensor

Brand logo
SKU PIR-T68R
Brand logo

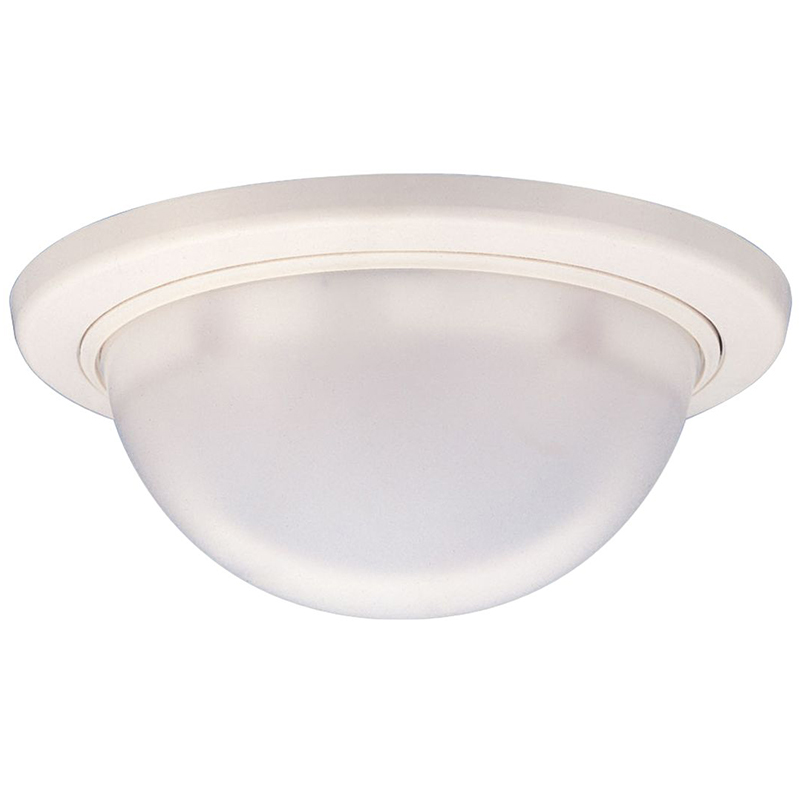

360° PIR Sensor

SKU PIR-T68R

The PIR-T68R PIR Sensor from Takex is built with complete 360° infrared detection up to Ø15m to detect intruders from all directions. Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. Ideal to be installed in rooms with multiple entrances.

Product Features:

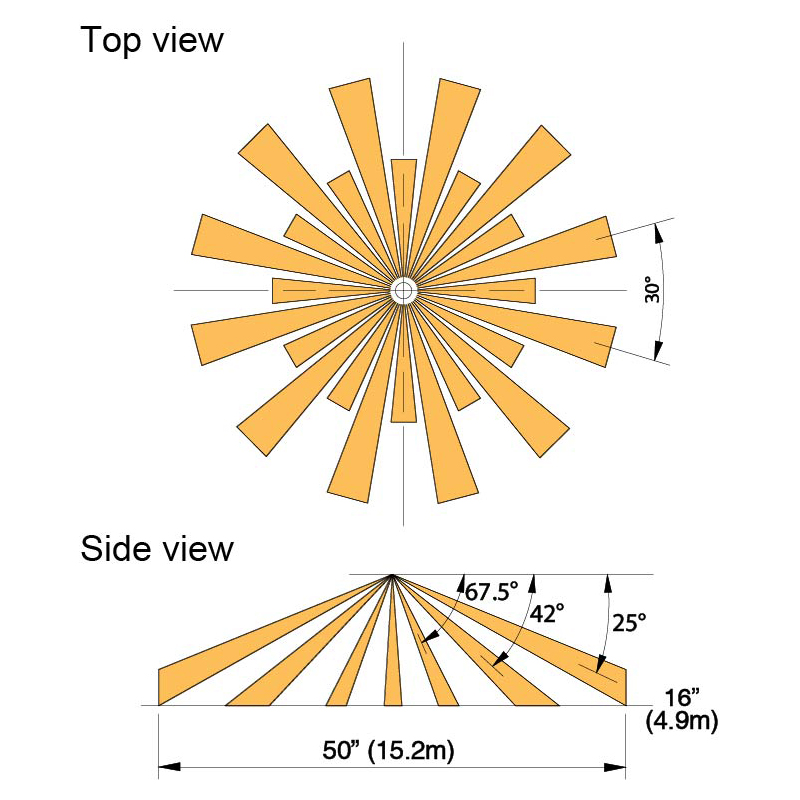

• 360° round passive infrared range up to Ø15m
• Highly adjustable infrared sensitivity - 60% / 80% / 100% / 120%
• High stability against noise and insect intrusion
• Sensitive Zones - 33 pairs
• ABS Plastic housing built for indoor environments
• Super slim and compact design - Ø120 x 47mm
• Input voltage: 10.5 ~28VDC
• Made in Japan

* Maximum mounting height is 4.9m (16')

Suggested Products

Suggested product image
Wide Angle PIR Sensor
PIR-T45W
Suggested product image
Wide Angle PIR Sensor with Pet Immunity
PIR-T45WP
Suggested product image
Vertical Curtain PIR Sensor
PIR-T46C
Suggested product image
Voice Recording Loudspeaker
SPKR-TAV
Suggested product image
Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864

Links and Downloads

Takex PIR-T68R 360° PIR Sensor Datasheet (PDF) 0.36 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Infrared Type
Passive Infrared
Infrared Detection Range
Ø15m , 360° (field of detection)
Transmitting Current
25mA Max.
Sensitive Zones
33 pairs
Pet Immunity
No
Alarm Output
Yes
Environmental
Input Voltage
10.5~28VDC
Operating Conditions
-15°C ~ +55°C without condensation
Mounting Options
Wall / Ceiling
Housing
ABS Plastic (Body) , PE Plastic (Lens)
Tamper Protection
No
Dimensions
Ø120 x 47mm
Other
Type
Motion Sensor
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
125 mm
Height
60 mm
Depth
125 mm
Weight
0.11 kg
