Vertical Curtain PIR Sensor

Brand logo
SKU PIR-T46C
Brand logo

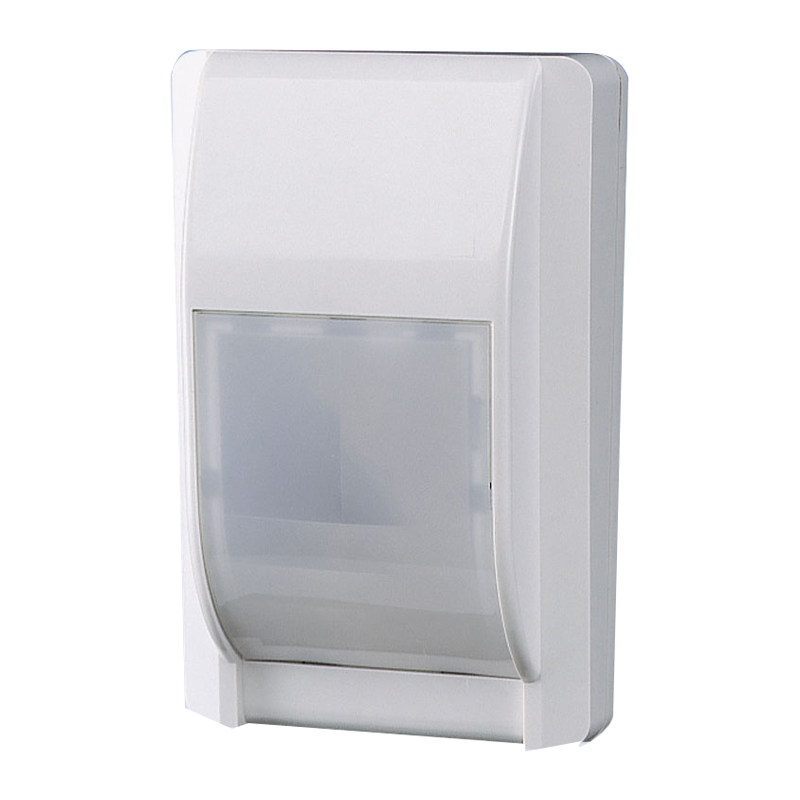

Vertical Curtain PIR Sensor

SKU PIR-T46C

The PIR-T46C Vertical Curtain PIR Sensor from Takex is built with adjustable infrared detection up to 16.5 meters to detect intruders. Choose from three coverage settings by matching the PCB (printed circuit board) to the index marks (refer to manual). Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. It's vertical curtain infrared makes it ideal to be installed above entrances and windows.

Product Features:
• Passive infrared detection up to 16.5m

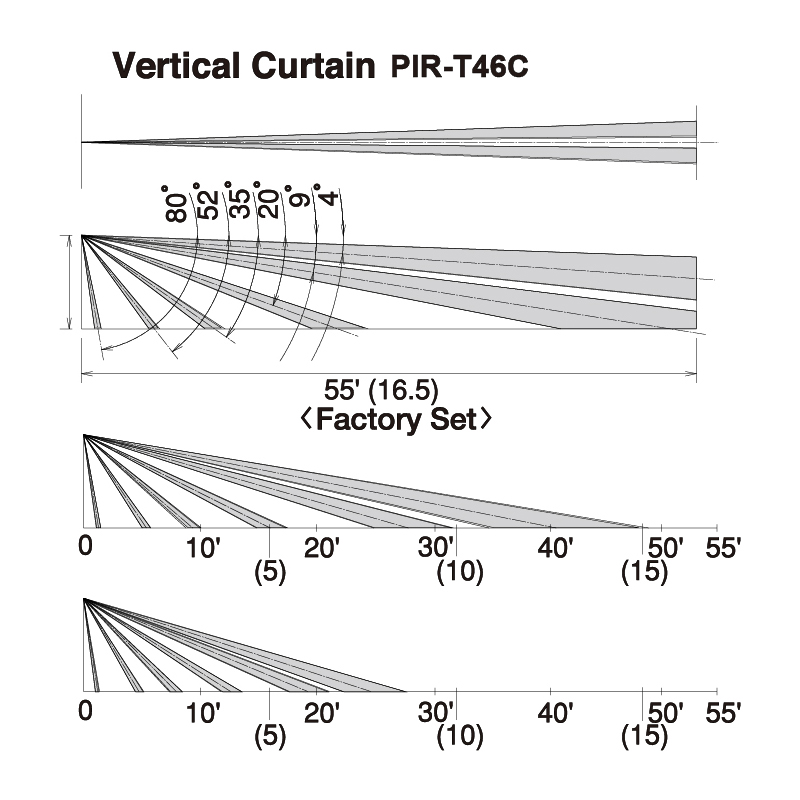

• Adjust the coverage area for different mounting heights
• Sensitive Zones - 6 pairs
• ABS Plastic housing built for indoor environments
• Input voltage: 9 ~18VDC
• Made in Japan

* Can be wall/ceiling mounted (bracket sold separately PIR-T4BKT)

Suggested Products

Suggested product image
Wide Angle PIR Sensor
PIR-T45W
Suggested product image
Wide Angle PIR Sensor with Pet Immunity
PIR-T45WP
Suggested product image
Wall/Ceiling Mount Bracket for Takex PIR Sensors
PIR-T4BKT
Suggested product image
360° PIR Sensor
PIR-T68R
Suggested product image
Voice Recording Loudspeaker
SPKR-TAV
Suggested product image
Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864

Links and Downloads

Takex PIR-T45W/46C PIR Sensor Datasheet (PDF) 0.71 MB
Takex PIR-T45W/46C PIR Sensor Manual (PDF) 1.33 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Infrared Type
Passive Infrared - Vertical Curtain
Infrared Detection Range
16.5m
Transmitting Current
25mA Max.
Sensitive Zones
6 pairs
Pet Immunity
No
Alarm Output
Yes
Environmental
Input Voltage
9~18VDC
Operating Conditions
-15°C ~ +55°C without condensation
Mounting Options
Wall / Ceiling (bracket sold separately)
Housing
ABS Plastic (Body) , PE Plastic (Lens)
Tamper Protection
Yes
Dimensions
70 x 45 x 110mm
Other
Type
Motion Sensor
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
45 mm
Depth
70 mm
Weight
0.12 kg
