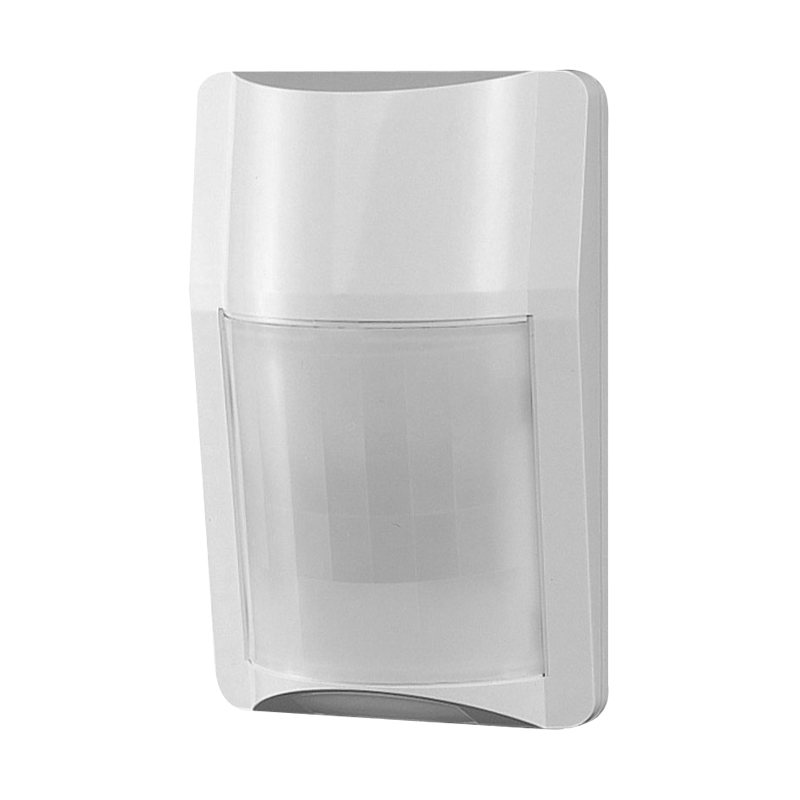

Wide Angle PIR Sensor with Pet Immunity

Brand logo
SKU PIR-T45WP
Brand logo

Wide Angle PIR Sensor with Pet Immunity

SKU PIR-T45WP

Stock may be limited. Please contact us for availability or for an alternative item.

The PIR-T45WP Wide Angle PIR Sensor from Takex is built with Pet Immunity ensuring animals up to 20kg are not detected to prevent false alarms. Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. Ideal for indoor residential and commercial.

Product Features:

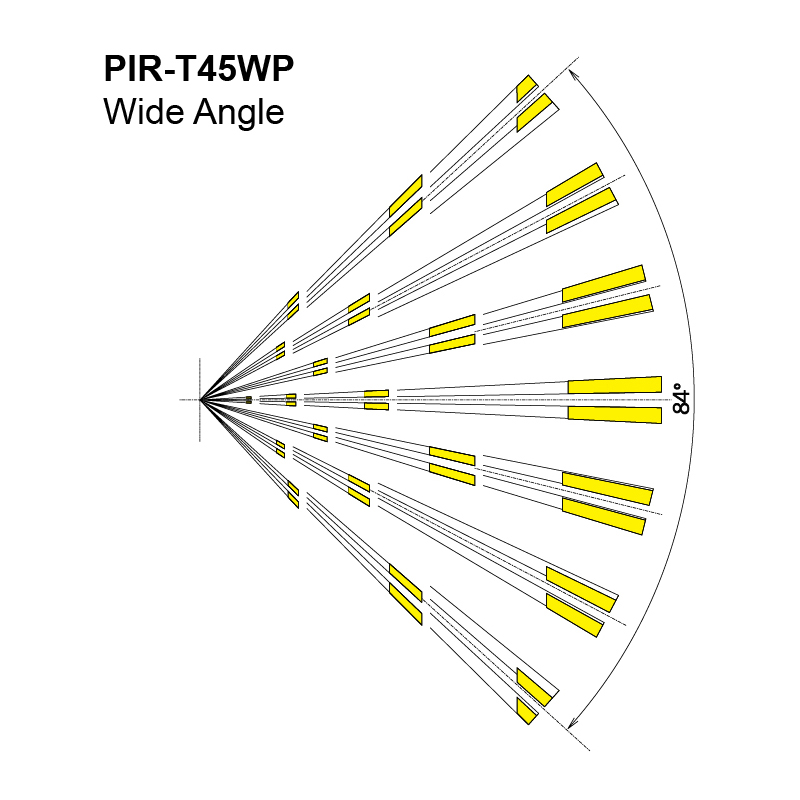

• Passive infrared detection up to 11m and 84° wide angle field of detection
• Pet Immunity - ensures animals up to 20kg are not detected to prevent false alarms

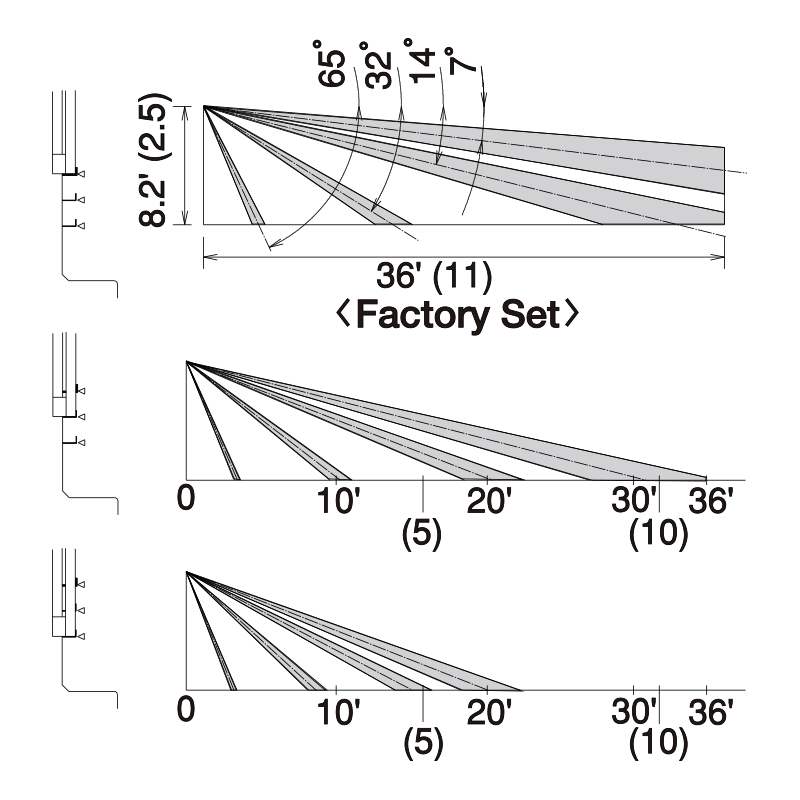

• Adjust the coverage area for different mounting heights
• High stability against radio frequency, power line noise, radiation noise and static electricity
• Sensitive Zones - 29 pairs
• ABS Plastic housing built for indoor environments
• Input voltage: 10 ~18VDC
• Made in Japan

* Can be wall/ceiling mounted (bracket sold separately PIR-T4BKT)

Suggested Products

Suggested product image
Wide Angle PIR Sensor
PIR-T45W
Suggested product image
Vertical Curtain PIR Sensor
PIR-T46C
Suggested product image
Wall/Ceiling Mount Bracket for Takex PIR Sensors
PIR-T4BKT
Suggested product image
360° PIR Sensor
PIR-T68R
Suggested product image
Voice Recording Loudspeaker
SPKR-TAV
Suggested product image
Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864

Links and Downloads

Takex PIR-45WP PIR Sensor with Pet Immunity Datasheet (PDF) 0.24 MB
Takex PIR-45WP PIR Sensor with Pet Immunity Manual (PDF) 0.33 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Infrared Type
Passive Infrared - Pet Immunity
Infrared Detection Range
11m , 84° (field of detection)
Transmitting Current
25mA Max.
Sensitive Zones
29 pairs
Pet Immunity
Animals up to 20kg are not detected
Alarm Output
Yes
Environmental
Input Voltage
10~18VDC
Operating Conditions
-15°C ~ +55°C without condensation
Mounting Options
Wall / Ceiling (bracket sold separately)
Housing
ABS Plastic (Body) , PE Plastic (Lens)
Tamper Protection
Yes
Dimensions
70 x 45 x 110mm
Other
Type
Motion Sensor
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
45 mm
Depth
70 mm
Weight
0.12 kg
