Wide Angle PIR Sensor

Brand logo
SKU PIR-T45W
Brand logo

Wide Angle PIR Sensor

SKU PIR-T45W

Stock may be limited. Please contact us for availability or for an alternative item.

The PIR-T45W PIR Sensor from Takex is built with infrared detection up to 11 meters and 84° wide angle field of detection to detect intruders. Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. Ideal for indoor residential and commercial.

Product Features:

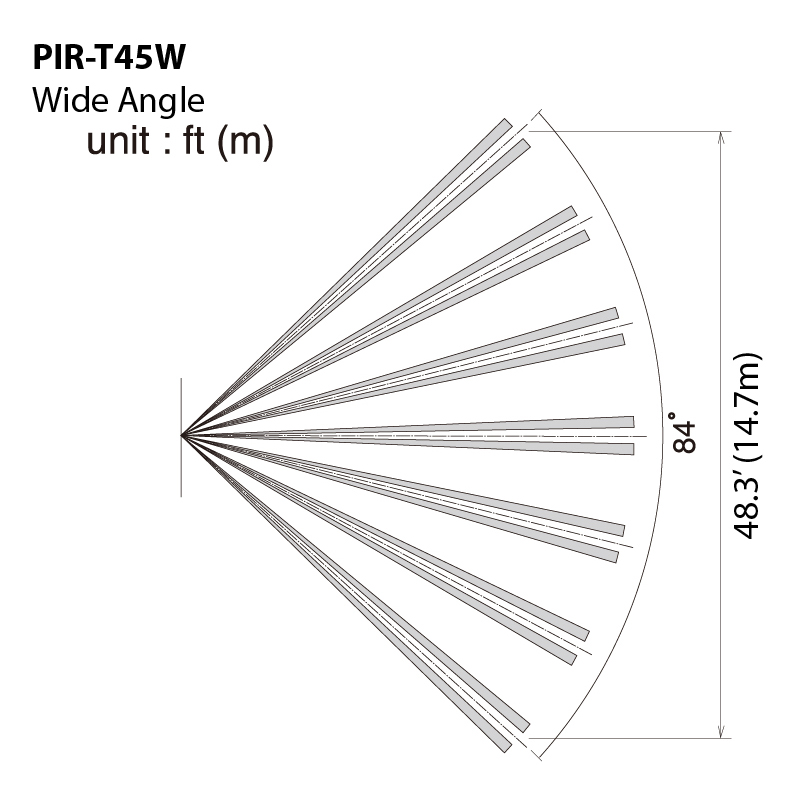

• Passive infrared detection up to 11m and 84° wide angle field of detection
• Adjust the coverage area for different mounting heights
• Sensitive Zones - 18 pairs
• ABS Plastic housing built for indoor environments
• Input voltage: 9 ~18VDC
• Made in Japan

* Can be wall/ceiling mounted (bracket sold separately PIR-T4BKT)

Suggested Products

Suggested product image
Wide Angle PIR Sensor with Pet Immunity
PIR-T45WP
Suggested product image
Vertical Curtain PIR Sensor
PIR-T46C
Suggested product image
Wall/Ceiling Mount Bracket for Takex PIR Sensors
PIR-T4BKT
Suggested product image
360° PIR Sensor
PIR-T68R
Suggested product image
Voice Recording Loudspeaker
SPKR-TAV
Suggested product image
Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864

Links and Downloads

Takex PIR-T45W/46C PIR Sensor Datasheet (PDF) 0.71 MB
Takex PIR-T45W/46C PIR Sensor Manual (PDF) 1.33 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Infrared Type
Passive Infrared - Wide Angle
Infrared Detection Range
11m , 84° (field of detection)
Transmitting Current
25mA Max.
Sensitive Zones
18 pairs
Pet Immunity
No
Alarm Output
Yes
Environmental
Input Voltage
9~18VDC
Operating Conditions
-15°C ~ +55°C without condensation
Mounting Options
Wall / Ceiling (bracket sold separately)
Housing
ABS Plastic (Body) , PE Plastic (Lens)
Tamper Protection
Yes
Dimensions
70 x 45 x 110mm
Other
Type
Motion Sensor
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
45 mm
Depth
70 mm
Weight
0.12 kg
