Professional 8 Channel Network Video Recorder with ePoE (320Mbps)

Brand logo
SKU NVR8PRO7
Brand logo

Professional 8 Channel Network Video Recorder with ePoE (320Mbps)

SKU NVR8PRO7

Stock may be limited. Please contact us for availability or for an alternative item.

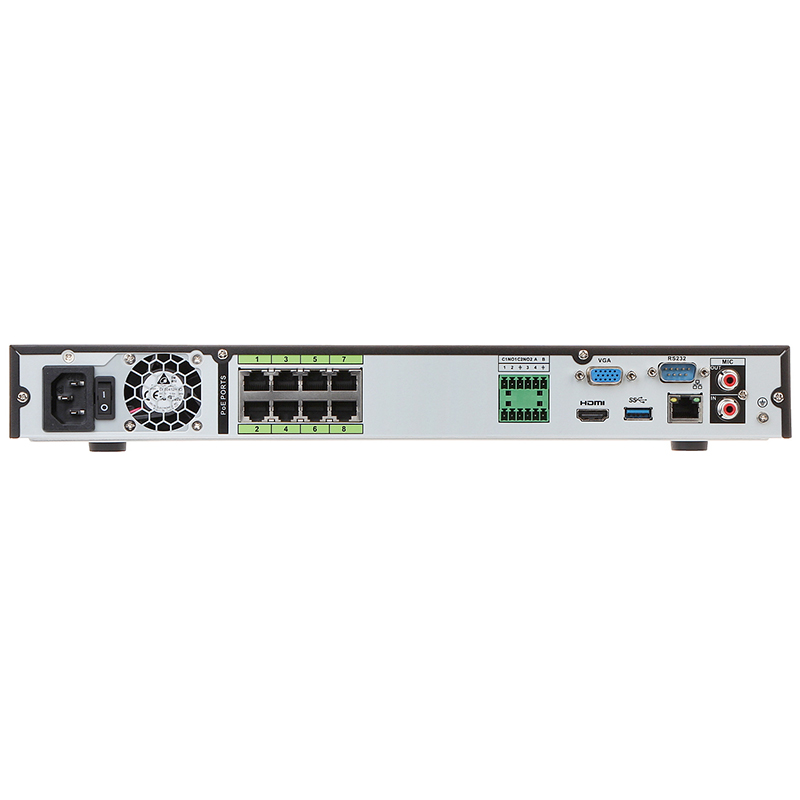

The VIP Vision NVR8PRO7 is an 8 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.

Product features:
• Record beyond Ultra HD up to 12.0MP (4000 x 3000)
• 8CH NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
• Up to 320Mbps incoming bandwidth; H.265+ support
• Decode up to 4 channels at 4K / 16 channels at 1080p (30fps)
• 2 x SATA ports up to 10TB, max. 20TB HDD capacity
• Native Ultra HD live view on 4K monitors via HDMI
• Backup footage via network, USB or SATA devices
• Remote view in seconds with setup via QR code
• Live view, playback & record via your phone/tablet

Suggested Products

Suggested product image
CAT5E Solid Core Cable Unshielded (Blue) 305m Pullbox
CAT5EBLU
Suggested product image
HDMI to VGA Adapter Cable
HDMITOVGA
Suggested product image
24" LG 1920 x 1080 LCD Monitor (TN)
LCDLG24TN
Suggested product image
4RU 450mm Wall-Mount Data Cabinet
RMC-B4U450W
Suggested product image
600VA Line Interactive UPS - 360W
UPS-A600-L
Suggested product image
8-port Unmanaged Fast Hi-PoE Ethernet Switch
VSPOE-SWA8G

Links and Downloads

VIP Vision NVRPRO Series Datasheet (PDF) 0.76 MB
VIP Vision / Watchguard NVR Installation Manual - Q4 2021 (PDF) 3.63 MB
Product Feature Guide - VIP Vision ePoE Overview (PDF) 1.76 MB
Smart PSS V2.0 (Mac) 90.05 MB
Full NVR User Manual V4.3.0 - Blue GUI (PDF) 12.75 MB
VIP Vision / Watchguard Mobile App Quick Start Guide (PDF) 2.57 MB
Full NVR User Manual V4.5.1 - Black GUI (PDF) 14.69 MB
NVR Firmware Type F 2017-Current
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Quad-core embedded processor
Operating System
Embedded Linux
Video Input
8 channels
PoE
Yes, w/ ePoE
HDD Capacity
Two-way Talk
1 channel input, 1 channel output, RCA
Interoperability
ONVIF 2.4, CGI conformant
Display
Video Output
1 x HDMI, 1 x VGA
Display Resolution
Configurable from 3840 x 2160 to 1024 x 768
Display Split
1/4/8/9
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution
Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Incoming Bandwidth
320Mbps
Decoding Capacity
4 channels: 8.0MP (30fps) / 16 channels: 1080p (30fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
16kbps ~ 20Mbps per channel
Record Modes
Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output
4 channels input / 2 channels relay output (N.O/N.C)
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection
Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync
1/4/9
Search Modes
Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes
USB Device / Network
Network
Ethernet
1 x RJ-45 port (10/100/1000Mbps)
Power over Ethernet
8 ports (IEEE802.3at/af) / ePoE & EoC support (All ports)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
Optical Interface
N/A
Max. User Access
128 users
Remote View
iOS (iPhone, iPad) / Android devices
Storage
Internal HDD
2 x SATA ports up to 10TB, max. 20TB HDD capacity
HDD Modes
Single (no RAID compatibility)
USB Interface
2 ports: Rear USB3.0 / Front USB2.0
Auxiliary Inputs
1 x RS232 / 1 x RS485
Environment
Power Supply
100 ~ 240VAC, 50 ~ 60Hz
Power Consumption
< 15.2W (without HDD) / PoE: 25.5W per port, 130W total
Operating Environment
-10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Rackmountable
No
Rackmount Units
1RU
Dimensions
375 x 327 x 53mm
Weight
4.00kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
445 mm
Height
170 mm
Depth
425 mm
Weight
4.10 kg
