Professional 8 Channel Network Video Recorder

Brand logo
SKU NVR8PRO2
Brand logo

Professional 8 Channel Network Video Recorder

SKU NVR8PRO2

Stock may be limited. Please contact us for availability or for an alternative item.

The VIP Vision NVR8PRO2 is an 8 channel network video recorder, designed as an immediate and customisable high definition IP surveillance solution. Installation of IP CCTV has never been simpler with the NVR8PRO2. It features a built-in 8 port Power over Ethernet (PoE) switch, supplying camera power, video, audio and PTZ control data across a single ethernet cable.

The NVR supports up to 128Mbps incoming bandwidth and can record beyond full HD video at 5.0MP resolution (2560 x 1920) across all 8 channels. Adjusting recording settings, exporting footage and live viewing camera streams are performed through an easy to use user interface. This NVR supports up to 8TB of internal storage and features continuous recording. When the internal storage is full, the NVR will automatically record over
the oldest footage. Accessing footage and changing settings remotely is possible from a local PC or over the internet via the NVR web interface.

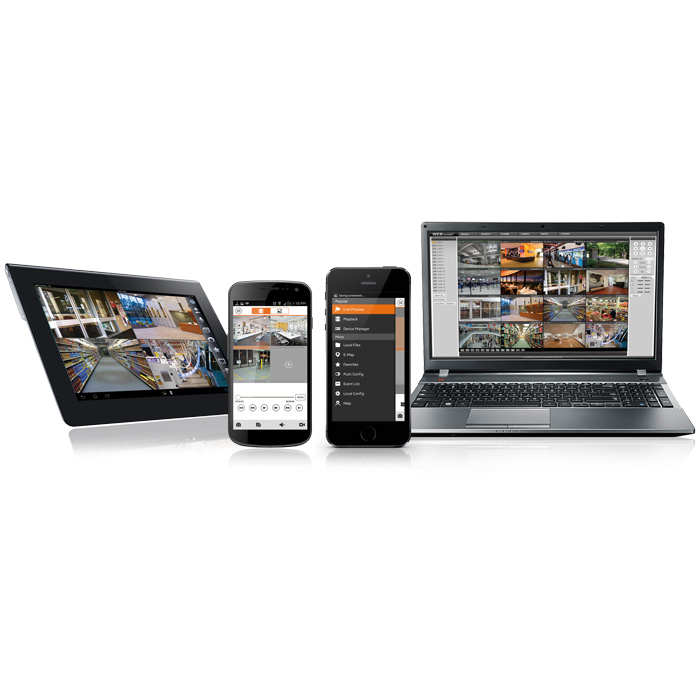

Smartphone and tablet remote viewing is available for iOS (iPhone, iPad), Google Android and Microsoft Windows Phone via free applications and can be configured in seconds using the remote view QR code tool.

The NVR8PRO2 can backup footage to external USB devices as well as via the local network.

Links and Downloads

NVR8PRO2/PACK Quick Start Guide 2.15 MB
SmartPSS Software (Windows) 58.71 MB
NVR_Firmware_TypeA_20150316 22.03 MB
Smart PSS V2.0.1 (Windows) 88.17 MB
Smart PSS V2.0 (Mac) 90.05 MB
Full NVR User Manual V3.2.0 - Grey GUI (PDF) 6.94 MB
Product Brochure (PDF)
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Input / Output
8 channels / 3 channels
Backup Modes
USB Device / Network
Bit Rate
48~ 8192kbps
Dimensions
375 x 285 x 50mm / 1U
Display Resolution
1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1/4/8/9
Ethernet
1 RJ-45 port (10/100/1000Mbps)
Internal HDD
2 SATA ports, up to 8TB, RAID
Main Processor
Dual-core embedded processor
Max. User Access
20 users
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search
Operating Environment
-10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Operating System
Embedded Linux
OSD
Camera title, Time, Video loss, Camera lock, Motion detection
Power Consumption
NVR: 20W (without HDD) / PoE: Max 15W per port
Power over Ethernet
8 ports (IEEE802.3af )
Power Supply
12VDC 5A / PoE: 48VDC 2.5A
Record Interval
1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Record Modes
Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop
Record Rate
Max. 128Mbps (eg. 8 channels 5.0MP at 8Mbps)
Record Resolution
5MP(2560x1920) / 3MP(2048x1536) / 1080P(1920x1080) / 720P(1280x720)
Remote View
iOS (iPhone, iPad) / Android devices / Windows Phone
RS232
1 port for PC communication & keyboard
RS485
1 port for PTZ control
Search Modes
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Sync Playback
1/4/9
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Two-way Talk
1 channel input / 1 channel output / BNC
USB Interface
2 ports: Rear USB2.0 / Front USB2.0
Video Compression
H.264 / MJPEG
Video Detection
Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank
Video Input
8 channel
Video Output
HDMI / VGA / TV (BNC)
Weight
2.3kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
440 mm
Height
365 mm
Depth
160 mm
Weight
3.50 kg
