General
Video Input
64 Channels
PoE
No
HDD Capacity
8
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF (Profile T; Profile S; Profile G); CGI; SDK. Supports RTSP, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from 32.0MP (6528 x 4896) to D1 (704 x 576)
Network Bandwidth (AI Disabled)
1024Mbps (incoming/recording), 800Mbps (outgoing)
Network Bandwidth (AI Enabled)
512Mbps (incoming/recording), 400Mbps outgoing
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG / MPEG4, Audio: G.711a / G.711u / PCM / G726
Playback Channels
Up to 16 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers
Decoding Capacity (AI Disabled)
8CH@8.0MP/25fps, 64CH@720P/25fps
Decoding Capacity (AI Enabled)
8CH@8.0MP/25fps, 64CH@720P/25fps
Backup Method
Portable hard drive / Burner / USB device / Network / eSATA

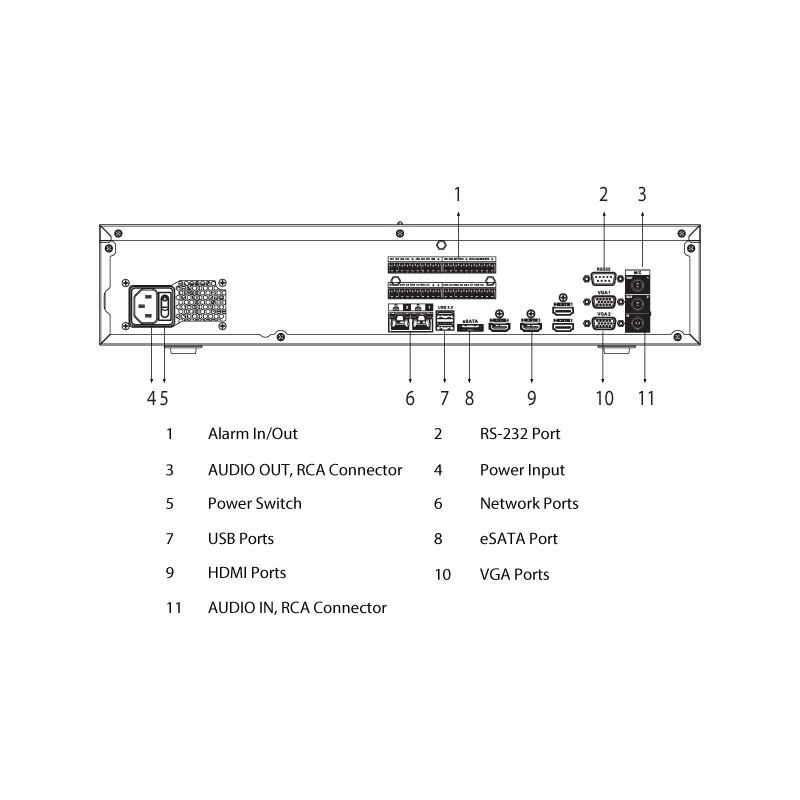

Interface
HDD
8 x SATA bays up to 16TB per bay, RAID 0/1/5/6/10, Hot swapping
Audio
1 channel input (RCA), 2 channel output (RCA)
Alarm Interface
16 channels input, 8 channels output
Alarm Types
General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
Alarm Actions
Begin record, take snapshot, camera external alarm output, audio, buzzer, NVR log, camera preset, email
Display Output
4 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
Display Split
1st Screen: 1/4/8/9/16/25/36/64, 2nd Screen: 1/4/8/9/16/25/36
Display Mode
Single Source (Mirrored): HDMI1@4K, HDMI2@4K, HDMI3@8K, HDMI4@1080p, VGA1@1080p, VGA2@1080p Multiple Sources (Up to 4 sources): HDMI1@4K + VGA1@1080p (mirror), HDMI2@4K + VGA2@1080p (mirror), HDMI3@4K, HDMI4@1080p
Network Input
2 x 2500Mbps Ethernet
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
2 x Front USB 2.0, 2 x Rear USB 3.0 / 1 x RS-485 A/B, 1 x RS-232, 1 x eSATA
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata
Supported Camera AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
4 channels (up to 12 face images per second, per channel)
Face Detection (By Camera)
64 channels
Face Recognition Capacity
NVR Supports up to 40 face databases and 300,000 face images
Face Recognition (By NVR)
4 channels (Face detection via NVR video stream analysis; Face recognition performed by NVR) 20 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
64 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 24 channels (10 rules per channel), SMD: 32 channels
Human/Vehicle Detection (By Camera)
IVS: 64 channels, SMD: 64 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
32 channels
Video Metadata Functions
People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
Video Metadata (By NVR)
8 channels
Video Metadata (By Camera)
32 channels
Environment
Power Supply
100–240 VAC / 50-60 Hz
Power Consumption
≤ 18W (without HDD)
Operating Environment
-10°C ~ +55°C / 10 ~ 93%RH
Rackmountable
Yes
Rackmount Units
2U

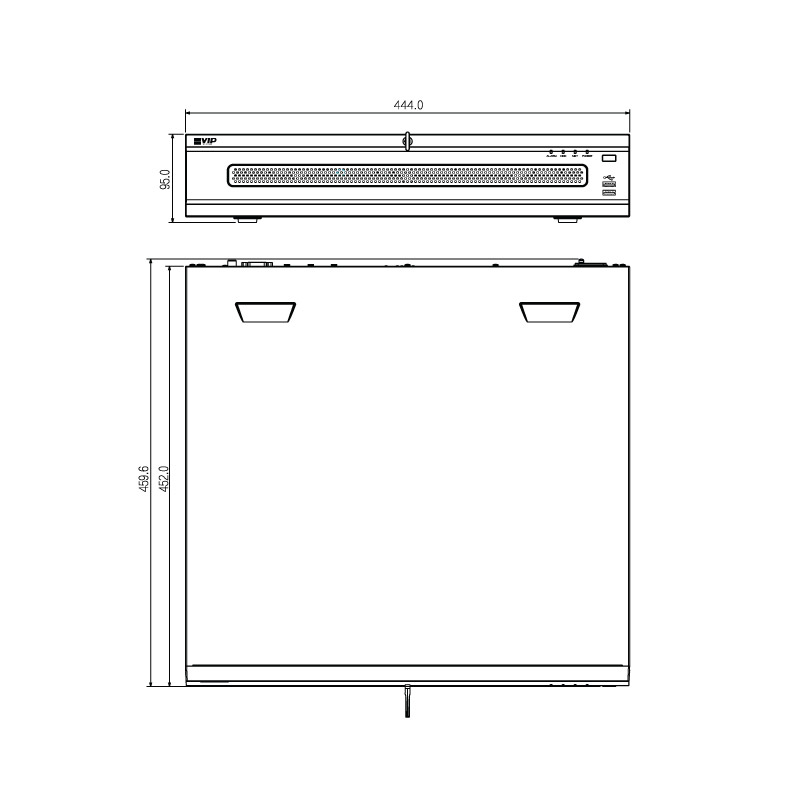

Dimensions
440mm × 460mm × 95mm
Weight
6.4kg (without HDD)
Warranty (Years)
4
