Professional 4 Channel Network Video Recorder with PoE (128Mbps)

Brand logo
SKU NVR4PRO4
Brand logo

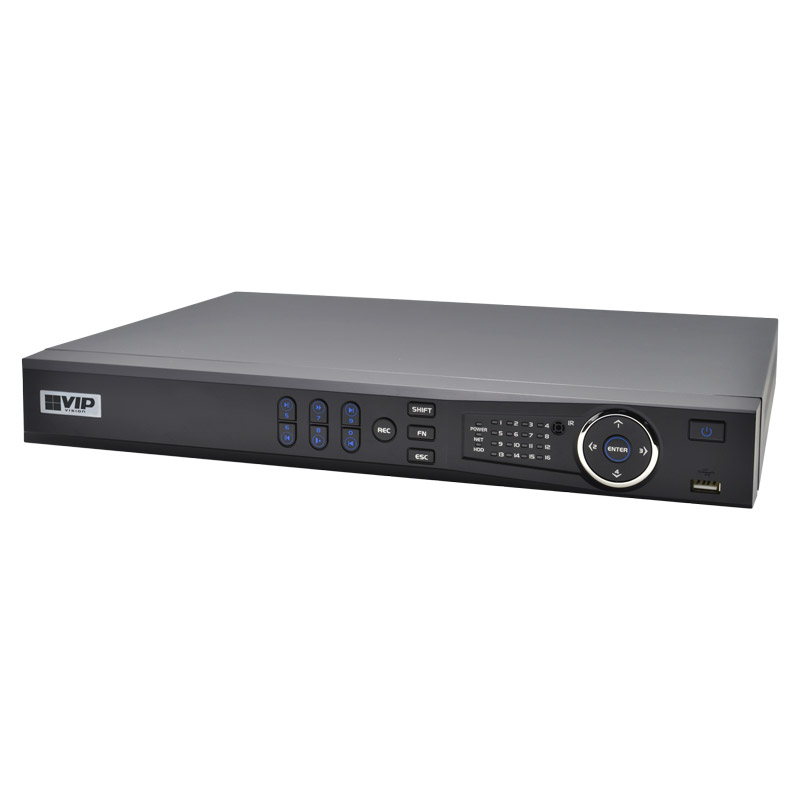

Professional 4 Channel Network Video Recorder with PoE (128Mbps)

SKU NVR4PRO4

Stock may be limited. Please contact us for availability or for an alternative item.

The VIP Vision™ Professional Series 4 channel NVR4PRO4 features recording in 4K Ultra HD/8.0MP (3840 x 2160), live view in Ultra HD, and support for H.265+ video compression. This makes it the smallest, most efficient and most affordable Ultra HD recording solution, perfect for homes and small businesses.

Product features:
• Record 4K Ultra HD/8.0MP (3840 x 2160)
• 4CH NVR with 4 Power over Ethernet ports
• Up to 128Mbps network bandwidth; H.265+ support
• Decode up to 2 channels at 4K / 8 channels at 1080p (30fps)
• 2 x SATA ports up to 10TB, max. 20TB HDD capacity
• Remote view in seconds with setup via QR code
• Native Ultra HD live view on 4K monitors via HDMI
• Backup footage via network or USB device
• Live view, playback & record via your phone/tablet

Suggested Products

Suggested product image
CAT5E Solid Core Cable Unshielded (White) 305m Pullbox
CAT5EWH
Suggested product image
HDMI to VGA Adapter Cable
HDMITOVGA
Suggested product image
23.8" Flashview Full HD LCD Surveillance Monitor (TN)
LCDFL24V
Suggested product image
27" Flashview 4K LCD Surveillance Monitor (IPS)
LCDFL27
Suggested product image
19'' 4RU 450mm Pre-assembled Wall-Mount Data Cabinet
RMC-B4U450W2
Suggested product image
8-port Unmanaged Fast Hi-PoE Ethernet Switch
VSPOE-SWA8G

Links and Downloads

VIP Vision NVRPRO4 Series Datasheet (PDF) 1.05 MB
VIP Vision / Watchguard NVR Installation Manual - Q4 2021 (PDF) 3.63 MB
VIP Vision / Watchguard Mobile App Quick Start Guide (PDF) 2.57 MB
Full NVR User Manual V4.5.1 - Black GUI (PDF) 14.69 MB
NVR_Firmware_TypeL_240515 66.01 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Industrial grade embedded processor
Operating System
Embedded Linux
Video Input
4 channels
PoE
Yes
HDD Capacity
Two-way Talk
1 channel input, 1 channel output, RCA
Interoperability
ONVIF (Profile S), CGI, SDK, RTSP
Display
Video Output
1 x HDMI, 1 x VGA
Display Resolution
Configurable from 3840 x 2160 to 1024 x 768
Display Split
1/4
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution
Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
Incoming Bandwidth
128Mbps
Decoding Capacity
2 channels: 8.0MP (30fps) / 8 channels: 1080p (30fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
N/A
Record Modes
Manual / Schedule (Regular [Continuous], Motion Detection, Alarm, Timed) / Stop
Record Interval
N/A
Features
Alarm Input / Output
4 channels input / 2 channels relay output
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection
General: Motion Detection, Video Loss, Privacy Masking, IPC Alarm Anomaly: Device Offline, Storage Error, Network Security Anomaly, IP/MAC Conflict
Playback Sync
1/4
Search Modes
Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes
USB Device / Network
Network
Ethernet
1 x RJ-45 port (10/100/1000Mbps)
Power over Ethernet
4 ports (IEEE802.3at/af, 10/100Mbps)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, P2P
Optical Interface
N/A
Max. User Access
128 users
Remote View
iOS (iPhone, iPad) / Android devices
Storage
Internal HDD
2 x SATA ports up to 10TB, max. 20TB HDD capacity
HDD Modes
Single (no RAID compatibility)
USB Interface
2 ports: Rear USB2.0 / Front USB2.0
Auxiliary Inputs
N/A
Environment
Power Supply
48VDC ~53VDC / 1.13A ~1.36A
Power Consumption
< 10W (without HDD) / PoE: Max 25.5W per port, 36W total
Operating Environment
-10 ~ 55°C / 10 ~ 90%RH
Rackmountable
No
Rackmount Units
1RU

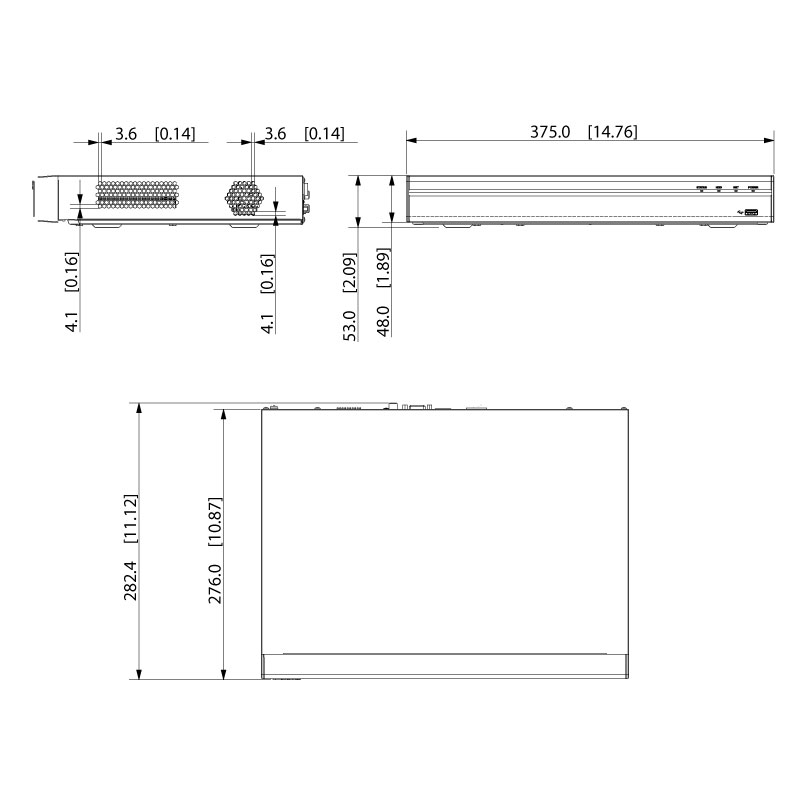

Dimensions
375 x 275 x 52mm
Weight
1.58kg (without HDD)
Other
Decoding Capability
4 channels @ 4.0MP (25fps)
Network Bandwidth
128Mbps for access / 128Mbps for storage / 64Mbps for forwarding
Smart IVS Functions
Smart Motion Detection, Perimeter Protection, Face Detection, People Counting & Heat Map (requires supported camera)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
440 mm
Height
140 mm
Depth
370 mm
Weight
4.63 kg
