Compact 4 Channel Network Video Recorder with PoE (80Mbps)

SKU NVR4COMD

Compact 4 Channel Network Video Recorder with PoE (80Mbps)

SKU NVR4COMD

Stock may be limited. Please contact us for availability or for an alternative item.

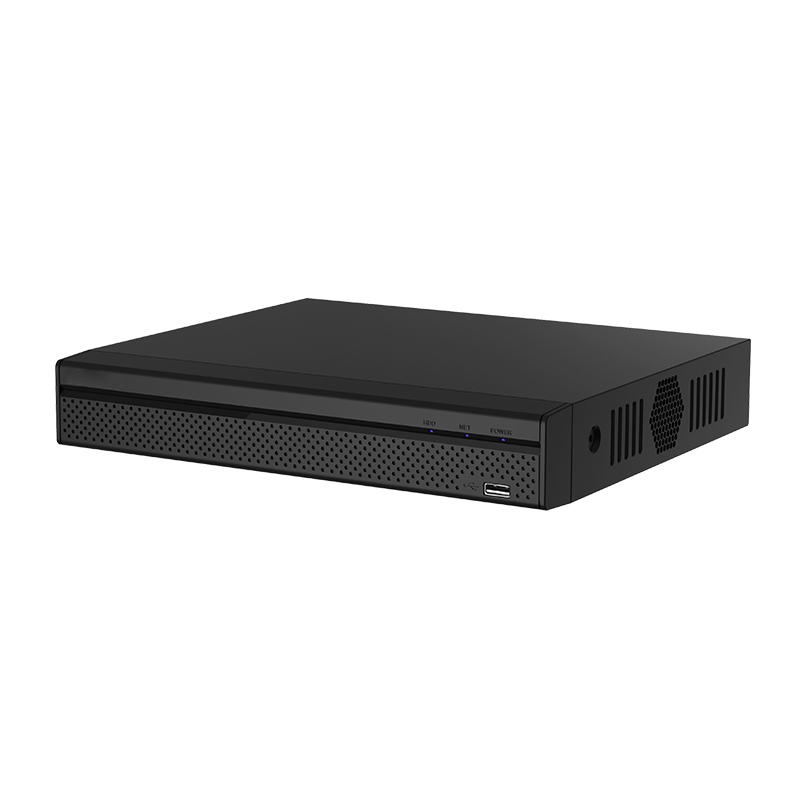

The NVR4COMD is a compact network video recorder with Ultra HD broadcast-quality image performance and built-in 4 port power over Ethernet switch, allowing easy plug and play installation. It features the latest H.265+ compression technology and an industrial grade processor.

Product features:
• Records up to 4K Ultra HD resolution (3840 x 2160)
• 4CH NVR with 4 Power over Ethernet ports
• Up to 80Mbps total incoming bandwidth
• 1 x SATA port up to 8TB, max. 8TB HDD capacity
• Motion detection recording & record scheduling
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view in seconds with setup via QR code

Links and Downloads

VIP Vision / Watchguard NVR Installation Manual - Q4 2021 (PDF) 3.63 MB

Full NVR User Manual V4.5.1 - Black GUI (PDF) 14.69 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Main Processor

Industrial grade embedded processor

Operating System

Embedded Linux

Video Input

4 channels

PoE

Yes

HDD Capacity

Two-way Talk

1 channel input, 1 channel output, RCA

Interoperability

ONVIF (Profile S), CGI, SDK, RTSP

Display

Video Output

1 HDMI / 1 VGA

Display Resolution

Configurable from 3840 x 2160 to 1024 x 768

Display Split

1/4

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Recording Resolution

Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)

Incoming Bandwidth

80Mbps for channels / 80Mbps for storage / 60Mbps for forwarding

Decoding Capacity

Video Compression

H.265+ / H.265 / H.264+ / H.264

Bit Rate

N/A

Record Modes

Manual / Schedule (Regular [Continuous], Motion Detection, Alarm, Timed) / Stop

Record Interval

N/A

Features

Alarm Input / Output

N/A

Trigger Events

Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips, Log

Video Detection

General: Motion Detection, Smart Motion Detection, Video Loss, Privacy Masking, IPC Alarm / Anomlay: Device Offline, Storage Error, Network Security, IP/MAC Conflict

Playback Sync

1/4

Search Modes

Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search

Backup Modes

USB Device / Network

Network

Ethernet

1 RJ-45 port (10/100Mbps)

Power over Ethernet

4 ports (IEEE802.3at/af, 10/100Mbps)

Network Functions

HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, P2P

Optical Interface

N/A

Max. User Access

128 users

Remote View

iOS (iPhone, iPad) / Android devices

Storage

Internal HDD

1 x SATA port up to 8TB, max. 8TB HDD capacity

HDD Modes

Single (no RAID compatibility)

USB Interface

2 ports: Rear USB2.0 / Front USB2.0

Auxiliary Inputs

N/A

Environment

Power Supply

48 ~ 53VDC / 1.13 ~ 1.25A

Power Consumption

NVR: 10W (without HDD) / PoE: Max 25.5W per port, 36W total

Operating Environment

-10 ~+55°C / 10~90%RH

Rackmountable

Rackmount Units

Compact 1RU

Dimensions

260mm x 225mm x 48mm

Weight

0.86kg (without HDD)

Other

Decoding Capability

4 channels @ 4.0MP (25fps)

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

320 mm

Height

521 mm

Depth

320 mm

Weight

2.50 kg
