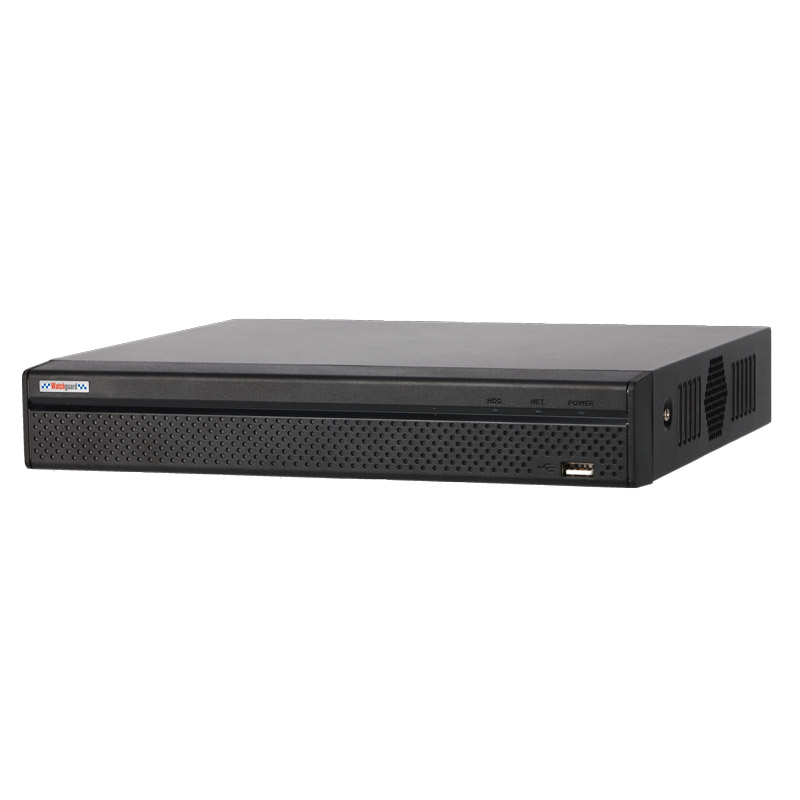

Compact 4 Channel Network Video Recorder with PoE (80Mbps)

Brand logo
SKU NVR4COM2
Brand logo

Compact 4 Channel Network Video Recorder with PoE (80Mbps)

SKU NVR4COM2

Stock may be limited. Please contact us for availability or for an alternative item.

The NVR4COM2 is a compact network video recorder with a built-in 4 port power over Ethernet switch, allowing easy plug and play installation. It features the latest H.265 compression technology and a quad-core processor.

Product features:
• Records up to 4K Ultra HD resolution (3840 x 2160)
• 4CH NVR with 4 Power over Ethernet ports
• Up to 80Mbps total incoming bandwidth
• 1 x SATA port up to 10TB, max. 10TB HDD capacity
• Motion detection recording & record scheduling
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view in seconds with setup via QR code

Suggested Products

Suggested product image
CAT5E Solid Core Cable Unshielded (Blue) 305m Pullbox
CAT5EBLU
Suggested product image
24" LG 1920 x 1080 LCD Monitor (TN)
LCDLG24TN
Suggested product image
4RU 450mm Wall-Mount Data Cabinet
RMC-B4U450W
Suggested product image
600VA Line Interactive UPS - 360W
UPS-A600-L
Suggested product image
8-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW8

Links and Downloads

Watchguard NVRxCOM2 Datasheet (PDF) 0.65 MB
VIP Vision / Watchguard NVR Installation Manual - Q4 2021 (PDF) 3.63 MB
Smart PSS V2.0 (Mac) 90.05 MB
Full NVR User Manual V4.3.0 - Blue GUI (PDF) 12.75 MB
VIP Vision / Watchguard Mobile App Quick Start Guide (PDF) 2.57 MB
Full NVR User Manual V4.5.1 - Black GUI (PDF) 14.69 MB
NVR_Firmware_TypeD_240808 55.66 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Quad-core embedded processor
Operating System
Embedded Linux
Video Input
4 channels
PoE
Yes
HDD Capacity
Two-way Talk
1 channel input, 1 channel output, RCA
Interoperability
ONVIF 2.4, CGI Conformant
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
Configurable from 3840 x 2160 to 1024 x 768
Display Split
1/4
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution
Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
Incoming Bandwidth
80Mbps
Decoding Capacity
Video Compression
H.265 / H.264
Bit Rate
16kbps ~ 20Mbps per channel
Record Modes
Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output
N/A
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection
Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync
1/4
Search Modes
Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes
USB Device / Network
Network
Ethernet
1 RJ-45 port (10/100Mbps)
Power over Ethernet
4 ports (IEEE802.3at/af)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
Optical Interface
N/A
Max. User Access
128 users
Remote View
iOS (iPhone, iPad) / Android devices
Storage
Internal HDD
1 x SATA port up to 10TB, max. 10TB HDD capacity
HDD Modes
Single (no RAID compatibility)
USB Interface
2 ports: Rear USB2.0 / Front USB2.0
Auxiliary Inputs
N/A
Environment
Power Supply
48VDC / 1.5A
Power Consumption
NVR: 7.5W (without HDD) / PoE: Max 25.5W per port, 50W total
Operating Environment
-10 ~+55°C / 10~90%RH / 86~106kpa
Rackmountable
No
Rackmount Units
Compact 1RU
Dimensions
260mm x 225mm x 48mm
Weight
0.8kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
370 mm
Height
310 mm
Depth
120 mm
Weight
2.50 kg
