Compact 4 Channel Network Video Recorder with PoE (80Mbps)

Brand logo
SKU NVR4COM
Brand logo

Compact 4 Channel Network Video Recorder with PoE (80Mbps)

SKU NVR4COM

Stock may be limited. Please contact us for availability or for an alternative item.

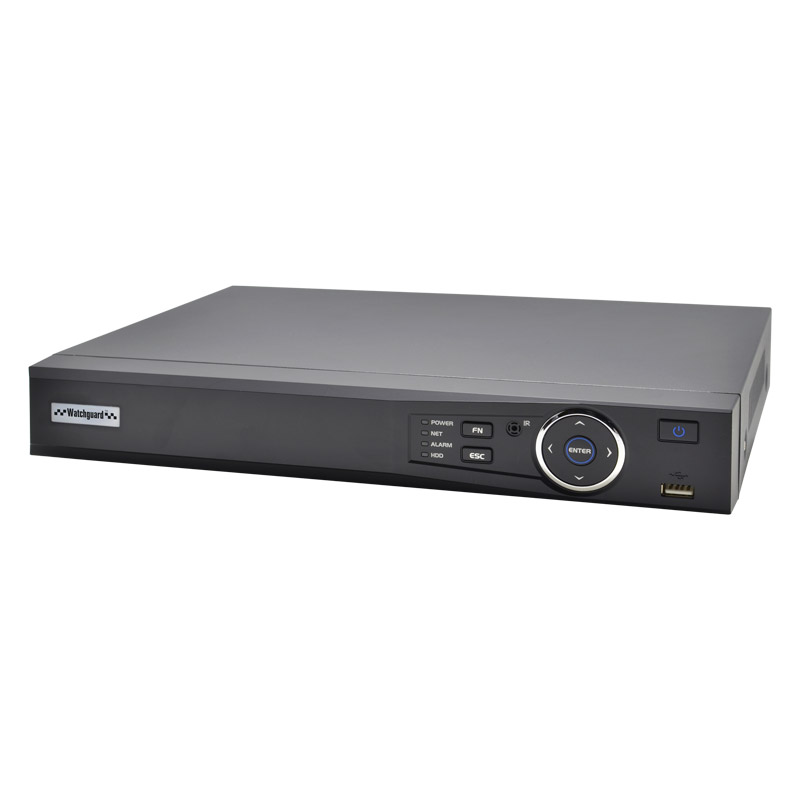

NVR4COM is a compact network video recorder with a built-in 4 port power over Ethernet switch, allowing easy plug and play installation.

Product features:
• Records up to 5.0 megapixel (2560 x 1920)
• Up to 80Mbps total incoming bandwidth
• 1 x SATA port up to 4TB storage
• Built-in 4 port power over Ethernet switch
• Motion detection recording & record scheduling
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view in seconds with setup via QR code

Suggested Products

Suggested product image
Compact 16 Channel Network Video Recorder with PoE (200Mbps)
NVR16COM
Suggested product image
Compact 4 Channel 2.0MP IP Surveillance Kit (2 Domes, 2 Bullets)
NVR4COMPACK
Suggested product image
Compact 8 Channel Network Video Recorder with PoE (80Mbps)
NVR8COM
Suggested product image
Compact 8 Channel 2.0MP IP Surveillance Kit (4 Domes, 4 Bullets)
NVR8COMPACK

Links and Downloads

NVRCOM Series Brochure (PDF) 0.75 MB
Smart PSS V2.0 (Mac) 90.05 MB
NVR_Firmware_TypeE_20170612 14.10 MB
Full NVR User Manual V4.3.0 - Blue GUI (PDF) 12.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Recording
Max Recording Resolution
5MP(2560 x 1920) / 3MP(2048 x 1536) / 1080p (1920 x 1080) / 720P(1280× 720)
Incoming Bandwidth
80Mbps
Internal HDD
1 SATA ports, up to 4TB
Input / Output
Video Input
4 channel
Video Output
1 HDMI / 1 VGA
Audio Input / Output
N/A
Alarm Input / Output
N/A
Other
Backup Modes
USB Device / Network / Internal SATA burner
Bit Rate
48~8192kbps
Dimensions
325mm x 250mm x 55mm
Display Resolution
1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1/4
Ethernet
1 RJ-45 port (10/100Mbps)
Main Processor
Dual-core embedded processor
Max. User Access
128 users
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support VIP Vision IP camera, DVR, NVS and etc.)
Operating Environment
-10 ~+55°C / 10~90%RH / 86~106kpa
Operating System
Embedded LINUX
OSD
Title, time, video loss, camera lock, motion detection, recording
Power Consumption
NVR: 10W (without HDD) / PoE: Max 25.5W per port
Power Supply
DC48V/1.5A
Record Interval
1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Record Modes
Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop
Record Rate
80Mbps max. incoming bandwidth
Remote View
iOS (iPhone, iPad); Android devices, Windows Phone
RS232
N/A
RS485
N/A
Search Modes
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Sync Playback
1/4
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
USB Interface
2 ports USB2.0
Video Detection
Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank
Video/Audio Compression
H.264/MJPEG
Weight
1.25kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
370 mm
Height
310 mm
Depth
120 mm
Weight
3.00 kg
