Professional 32 Channel Network Video Recorder (No PoE) (320Mbps)

Brand logo
SKU NVR32PRONP2
Brand logo

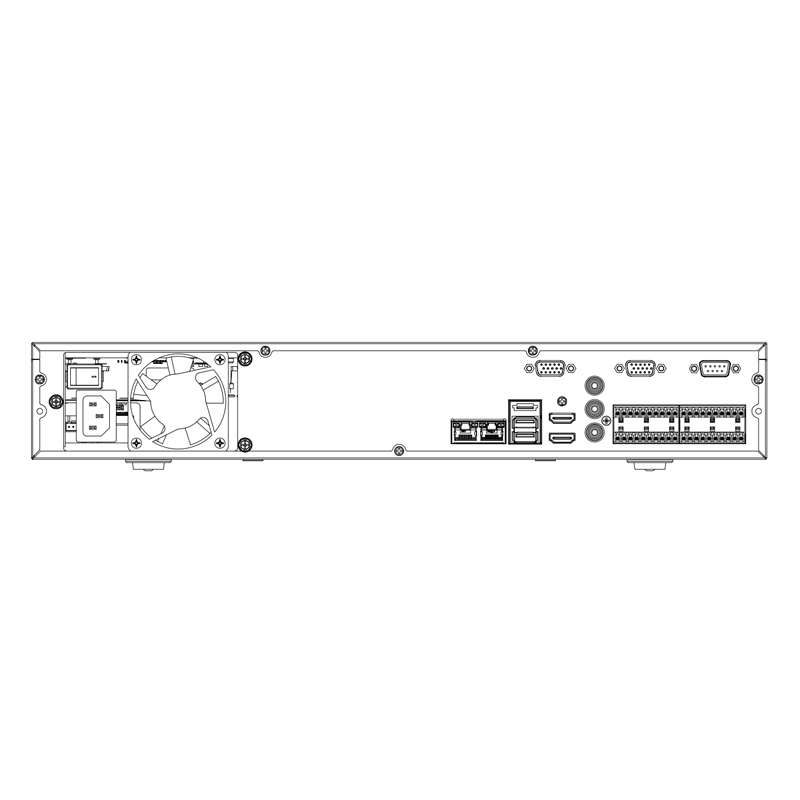

Professional 32 Channel Network Video Recorder (No PoE) (320Mbps)

SKU NVR32PRONP2

Stock may be limited. Please contact us for availability or for an alternative item.

The VIP Vision NVR32PRONP2 is a 32 channel network video recorder, designed as an immediate and customisable high definition IP surveillance solution. This NVR offers native Ultra HD broadcast-quality image performance.

Product features:
• Record beyond Ultra HD up to 12.0MP (4000 x 3000)
• 32CH NVR with no Power over Ethernet ports
• Up to 320Mbps incoming bandwidth; H.265 support
• Decode up to 4 channels at 4K / 16 channels at 1080p (30fps)
• 4 x SATA ports up to 10TB, max. 40TB HDD capacity
• Remote view in seconds with setup via QR code
• Native Ultra HD live view on 4K monitors via HDMI
• Backup footage via network, USB or SATA devices
• Live view, playback & record via your phone/tablet

*This NVR requires external Power over Ethernet switches.

Suggested Products

Suggested product image
CAT5E Solid Core Cable Unshielded (Blue) 305m Pullbox
CAT5EBLU
Suggested product image
HDMI to VGA Adapter Cable
HDMITOVGA
Suggested product image
24" LG 1920 x 1080 LCD Monitor (IPS)
LCDLG24I
Suggested product image
6RU 600mm Wall-Mount Data Cabinet
RMC-B6U600W
Suggested product image
1500VA Line Interactive UPS - 900W
UPS-A1500-L
Suggested product image
16-port Managed Fast Hi-PoE Ethernet Switch
VSPOE-SWA16
Suggested product image
24-port Managed Fast Hi-PoE Ethernet Switch
VSPOE-SWA24

Links and Downloads

VIP Vision NVRPRONP Series Datasheet (PDF) 0.94 MB
VIP Vision / Watchguard NVR Installation Manual - Q4 2021 (PDF) 3.63 MB
SmartPSS Software (Windows) 58.71 MB
Smart PSS V2.0.1 (Windows) 88.17 MB
Smart PSS V2.0 (Mac) 90.05 MB
Full NVR User Manual V4.3.0 - Blue GUI (PDF) 12.75 MB
VIP Vision / Watchguard Mobile App Quick Start Guide (PDF) 2.57 MB
Full NVR User Manual V4.5.1 - Black GUI (PDF) 14.69 MB
NVR Firmware Type F 2017-Current
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Quad-core embedded processor
Operating System
Embedded Linux
Video Input
32 channels
PoE
No
HDD Capacity
Two-way Talk
1 channel input, 1 channel output, RCA
Interoperability
ONVIF 2.4, SDK, CGI conformant
Display
Video Output
2 x HDMI, 2 x VGA
Display Resolution
Configurable from 3840 x 2160 to 1024 x 768
Display Split
1/4/8/9/16/25/36
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution
Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Incoming Bandwidth
320Mbps
Decoding Capacity
4 channels: 8.0MP (30fps) / 16 channels: 1080p (30fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate
16kbps ~ 20Mbps per channel
Record Modes
Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output
16 channels input / 6 channels relay output (N.O/N.C)
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection
Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync
1/4/9/16
Search Modes
Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes
USB Device / Network / eSATA Device / Internal SATA burner
Network
Ethernet
2 x RJ-45 port (10/100/1000Mbps), Independant or Joint Working
Power over Ethernet
N/A
Network Functions
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search, Easy4IP
Optical Interface
N/A
Max. User Access
128 users
Remote View
iOS (iPhone, iPad) / Android devices
Storage
Internal HDD
4 x SATA ports up to 10TB, max. 40TB HDD capacity
HDD Modes
Single (no RAID compatibility)
USB Interface
3 ports: 2 x Rear USB3.0 / 1 x Front USB2.0
Auxiliary Inputs
1 x RS232 / 1 x RS485 / 1 x eSATA
Environment
Power Supply
100 ~ 240VAC, 50 ~ 60Hz
Power Consumption
<16.7W (without HDD)
Operating Environment
-10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Rackmountable
Yes (included)
Rackmount Units
1.5RU
Dimensions
440 x 411 x 76mm
Weight
4.30kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
550 mm
Height
550 mm
Depth
250 mm
Weight
8.00 kg
